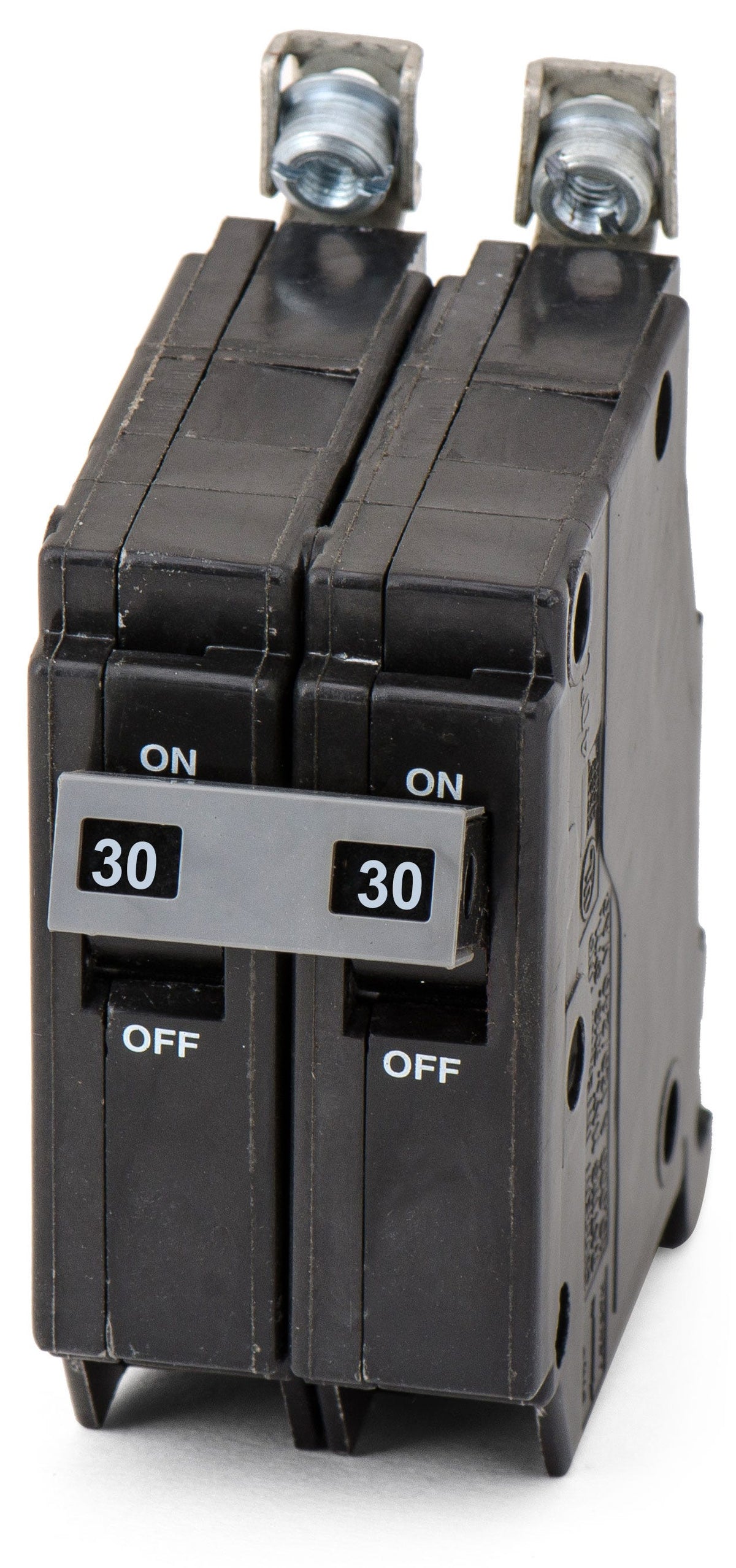

Eaton / Cutler-Hammer CHB230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB230
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB230 |
| Series | CHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Sold out
Quantity
Eaton / Cutler-Hammer CHB230 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB230-R |
| Series | CHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Similar Items
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Part of the CH family, this 30A miniature circuit breaker delivers reliable overcurrent and short-circuit protection for 120/240VAC systems. The two-pole unit features a bolt-on mounting style designed exclusively for Cutler-Hammer Type PB and PH panelboards. Equipped with standard thermal-magnetic trip technology, it offers a 10kAIC interrupt capacity. The box lug terminals accept 14-8 AWG copper or aluminum wire, making it suitable for various commercial installations.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB230 |
| Series | CHB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CHB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards, Meter Panels |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Trip-Free Mechanism, Quick-Make/Quick-Break |
Product FAQs
7 answersWhat panelboards are compatible with the CHB230 circuit breaker?
This breaker mounts directly into Cutler-Hammer Type PB panelboards, Type PH panelboards, and compatible Eaton meter panels. It requires a bolt-on connection and will not fit standard plug-on load centers.
What is the difference between Eaton CH and CHB circuit breakers?
Both series feature a 3/4-inch width per pole, but they utilize different mounting methods. Type CH breakers are plug-on variants designed for residential load centers, whereas Type CHB breakers are bolt-on variants engineered for commercial panelboards.
Is the CHB230 breaker HACR rated?
Yes, this 30-amp thermal magnetic breaker is HACR rated. This certifies it for use with heating, air conditioning, and refrigeration equipment that requires multi-motor branch circuit protection.
What wire type and gauge do the CHB230 terminals accept?
The built-in box lug terminals are approved for either copper or aluminum conductors ranging from 14 AWG to 8 AWG.
How do you reset a tripped CHB230 breaker?
When a fault occurs, the handle on a Type CHB breaker trips to a middle position between ON and OFF. To restore power, you must manually push the handle to the full OFF position to reset the internal mechanism before switching it back to ON.
Can I interchange a CHB230 with a BAB2030 circuit breaker?
No. While both are 30-amp, 2-pole bolt-on breakers, they have different physical dimensions and fit different chassis. The CHB230 is 3/4-inch wide per pole, while BAB breakers are 1-inch wide per pole. They are not interchangeable.
Are Cutler-Hammer and Eaton CHB breakers the same?
Yes. Eaton acquired the Cutler-Hammer brand and continues to manufacture the CHB series. A modern Eaton CHB230 is a direct, UL listed replacement for older Cutler-Hammer branded breakers with the exact same catalog number.
