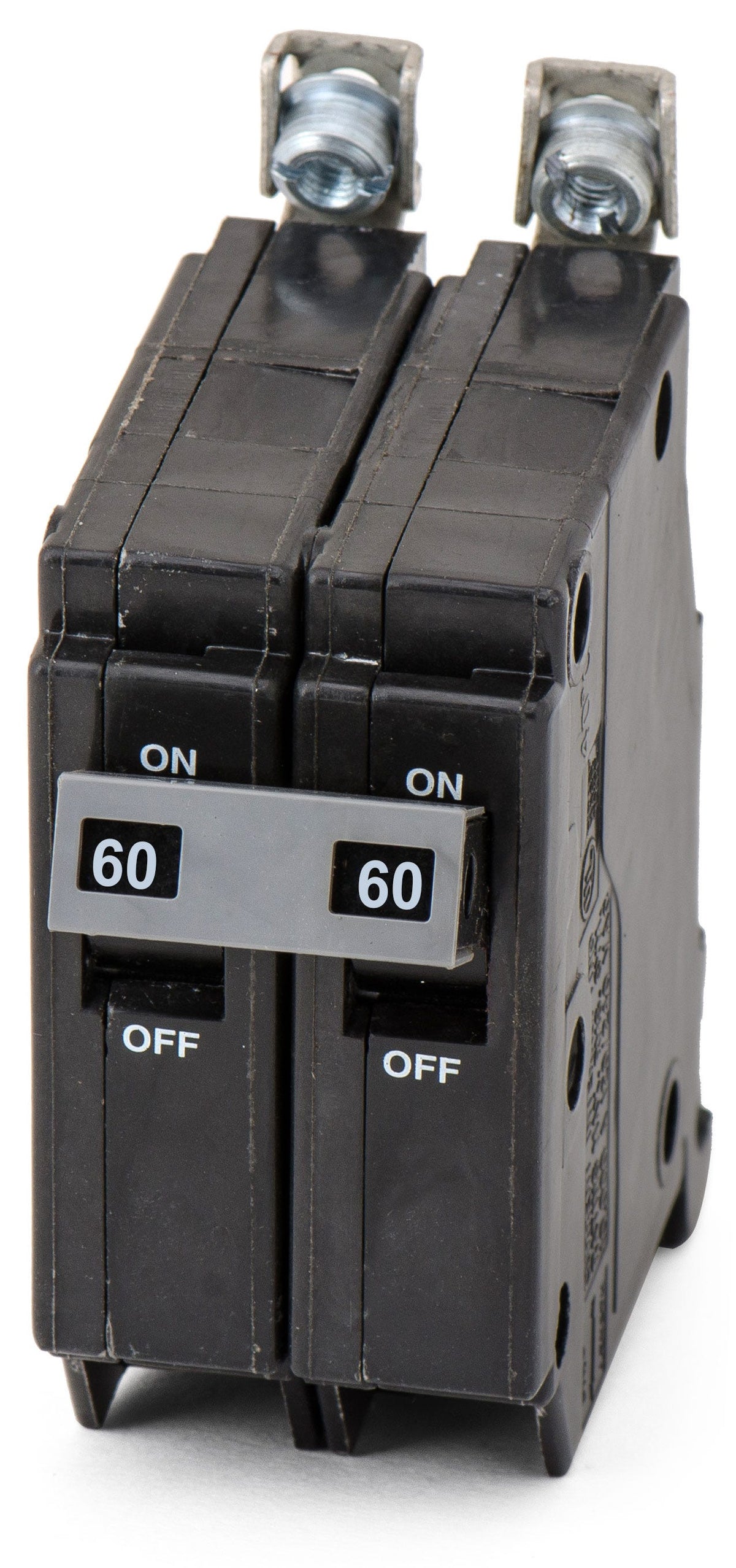

Eaton / Cutler-Hammer CHB260 Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB260
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB260
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB260 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB260 |
| Series | CHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Sold out
Quantity
Eaton / Cutler-Hammer CHB260 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB260-R |
| Series | CHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Similar Items
50A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Providing reliable overcurrent protection, the Eaton CHB260 is a 60-amp miniature breaker tailored for commercial applications. Engineered for a precise fit, it fastens securely into Cutler-Hammer Type PB and PH panelboards. The unit features standard box lugs that accept 8-2 AWG conductors for straightforward wiring. This model delivers a 10kAIC interrupting rating at 120/240VAC and is fully HACR rated for dedicated heating and cooling circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB260 |
| Series | CHB |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip |
Product FAQs
5 answersWhat panelboards are compatible with the CHB260?
The CHB260 is a bolt-on circuit breaker designed specifically for use in Cutler-Hammer Type PB and Type PH panelboards. It is not compatible with standard plug-on load centers.
Can I use a BAB or CH series breaker in place of the CHB260?
No. While they are all manufactured by Eaton, CH breakers are plug-on, and BAB breakers are designed for different commercial panelboards. You must use a CHB series breaker to properly fit Type PB and PH panelboards.
Are Eaton and Cutler-Hammer CHB260 breakers the exact same part?
Yes. Eaton acquired Cutler-Hammer, so CHB260 breakers labeled under the Eaton, Cutler-Hammer, or legacy Westinghouse brands are functionally identical and interchangeable.
How does the CHB260 connect to the panel bus?
The CHB260 features a bolt-on mounting style. It physically bolts directly to the bus bar of compatible PB and PH panelboards, providing a secure and vibration-resistant connection for commercial applications.
What type of trip mechanism does the CHB260 use?
This breaker utilizes a fixed thermal-magnetic trip unit. The thermal element provides long-time protection against overloads, while the magnetic element offers instantaneous protection against short circuits.
