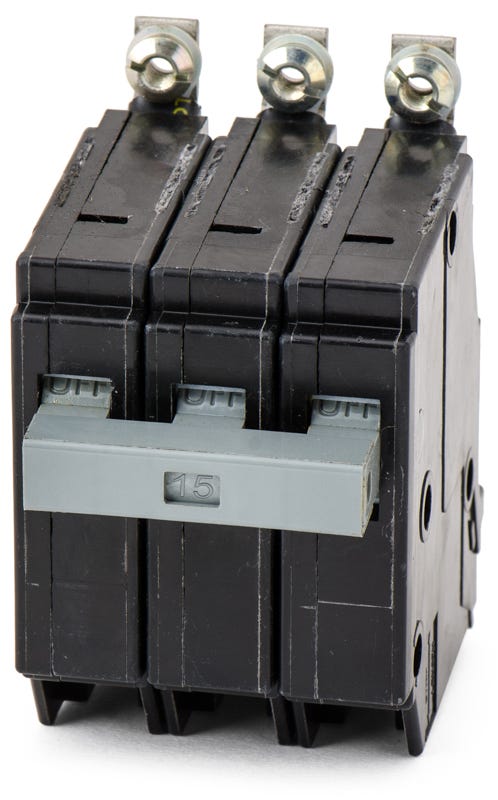

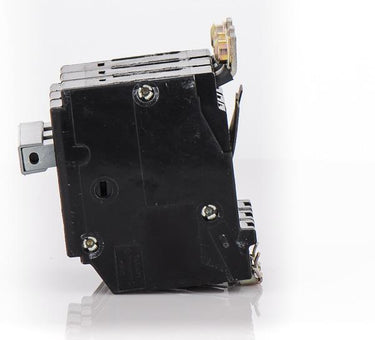

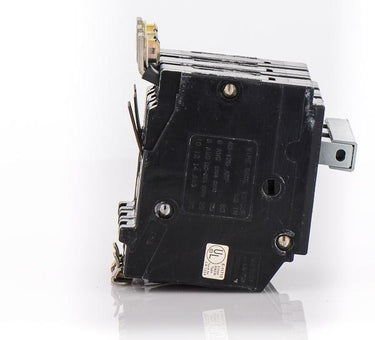

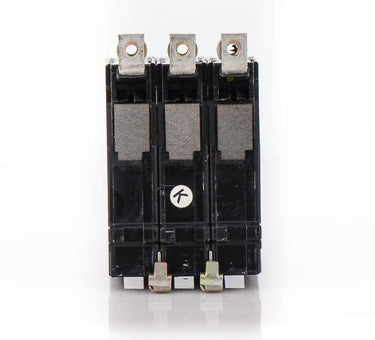

Eaton / Cutler-Hammer CHB315 Miniature Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB315
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB315
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB315 - 15A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB315 |
| Series | CHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Eaton / Cutler-Hammer CHB315 - 15A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB315-R |
| Series | CHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
30A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Designed to safeguard commercial systems, the Eaton CHB315 is a 15A, three-pole bolt-on breaker. It features a thermal-magnetic trip unit and carries an HACR rating for dedicated HVAC circuits. This miniature breaker integrates seamlessly into Eaton Type PB and PH panelboards. The unit utilizes box lug terminals that accept 14-8 AWG wire for straightforward installation. With a 10 kAIC capacity at 240VAC, it provides dependable short-circuit defense and includes a Visi-Trip flag.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB315 |
| Series | CHB |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 14-8 AWG |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersCan I install the CHB315 in a standard CH loadcenter?
No. The CHB315 is a bolt-on circuit breaker designed specifically for Eaton and Cutler-Hammer Type PB and PH panelboards, meter panels, and multi-metering modules. Standard CH loadcenters require plug-on breakers.
Can I substitute a BAB series breaker for the CHB315 in a PB panelboard?
No. Although both are bolt-on breakers, BAB breakers are designed for different distribution panels and cannot be used in CHB distribution equipment. You must use a CHB series breaker for Type PB and PH panelboards.
Is the CHB315 suitable for heating and cooling equipment?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires an HACR-rated overcurrent protection device.
Does the CHB315 require a hold-down kit when used as a back-fed main?
No. Because the CHB315 is a bolt-on breaker, it mechanically secures directly to the panel busbar. This inherent mounting style satisfies the National Electrical Code requirement for back-fed breakers without needing an additional hold-down bracket.
How do I reset the CHB315 after a trip event?
When the breaker trips, the handle moves to a middle position between ON and OFF. To restore power, you must first push the handle completely to the OFF position to reset the internal mechanism, and then push it back to the ON position.
What type of protection does the thermal-magnetic trip unit provide?
The fixed thermal-magnetic mechanism provides two types of protection. The thermal element offers inverse-time protection against prolonged, mild overloads, while the magnetic element reacts instantaneously to clear severe short-circuit conditions.
