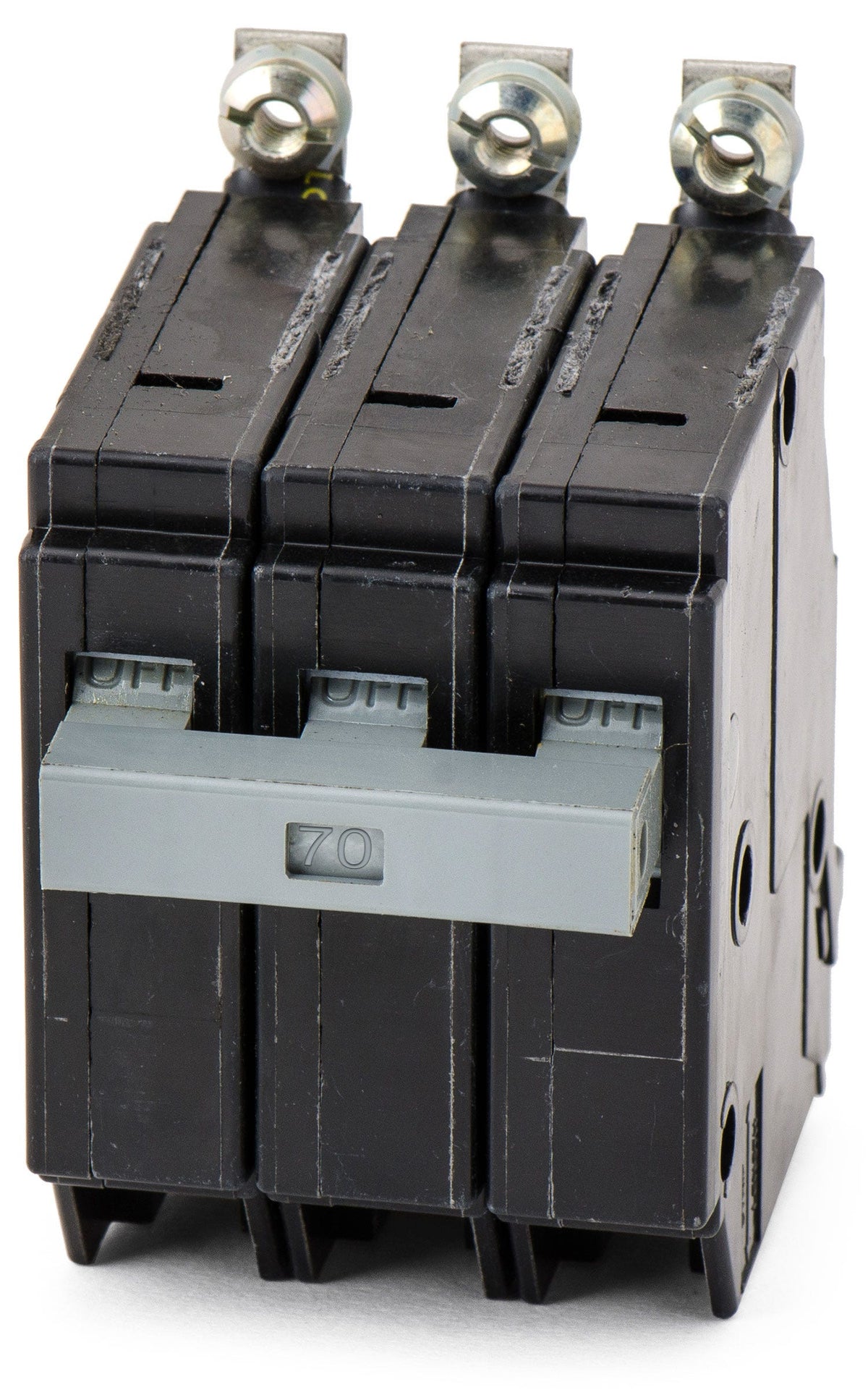

Eaton / Cutler-Hammer CHB370 Miniature Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB370
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB370
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB370 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CHB370 - 70A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB370 |
| Series | CHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Sold out
Quantity
Eaton / Cutler-Hammer CHB370 - 70A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB370-R |
| Series | CHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Similar Items
50A 3 Pole Miniature Circuit Breaker
100A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
Supplying reliable overcurrent defense, the Eaton CHB370 is a 70-amp, three-pole breaker engineered for 240V commercial setups. The thermal-magnetic trip unit provides fixed protection against both overloads and short circuits. Designed for secure installation, this unit bolts into Cutler-Hammer Type PB and PH panelboards, as well as multi-metering modules. The bolt-on mounting style guarantees a solid connection to the panel bus.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB370 |
| Series | CHB |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules |
| Wire Gauge | 8-2 AWG |
| Max Wire | 2 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Standards | CSA C22.2 No. 5, Federal Specification W-P-131a, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhich panelboards are compatible with the CHB370 circuit breaker?
This breaker is designed for use in Eaton and Cutler-Hammer Type PB and Type PH panelboards, as well as compatible meter panels and multi-metering modules.
Can I install the CHB370 in a standard residential load center?
No. The CHB370 is a bolt-on circuit breaker designed specifically for commercial and industrial Type PB and PH panelboards. It will not fit in standard residential plug-on load centers that require Type CH or Type BR breakers.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker provides Long-Time and Instantaneous trip functions. Long-Time handles sustained overloads, while Instantaneous trips immediately during severe short circuits. Both settings are fixed and cannot be adjusted in the field.
Is the CHB370 considered an Eaton or Cutler-Hammer product?
It is manufactured by Eaton, which acquired Cutler-Hammer. The CHB370 is the direct replacement for legacy Cutler-Hammer breakers with the same catalog number and is fully backward compatible with existing Cutler-Hammer PB and PH panelboards.
Does the CHB370 require specialized lugs for installation?
No, it comes factory-equipped with standard box lugs on the load side. These lugs are designed to accept bare wire conductors and do not require specialized ring or spade terminals.
What wire gauge is accepted by the load lugs on the CHB370?
The box lugs on this 70-amp breaker accept wire sizes from 8 AWG up to 2 AWG. Always verify that your conductor size and insulation temperature rating meet local electrical codes for a 70-amp circuit.
