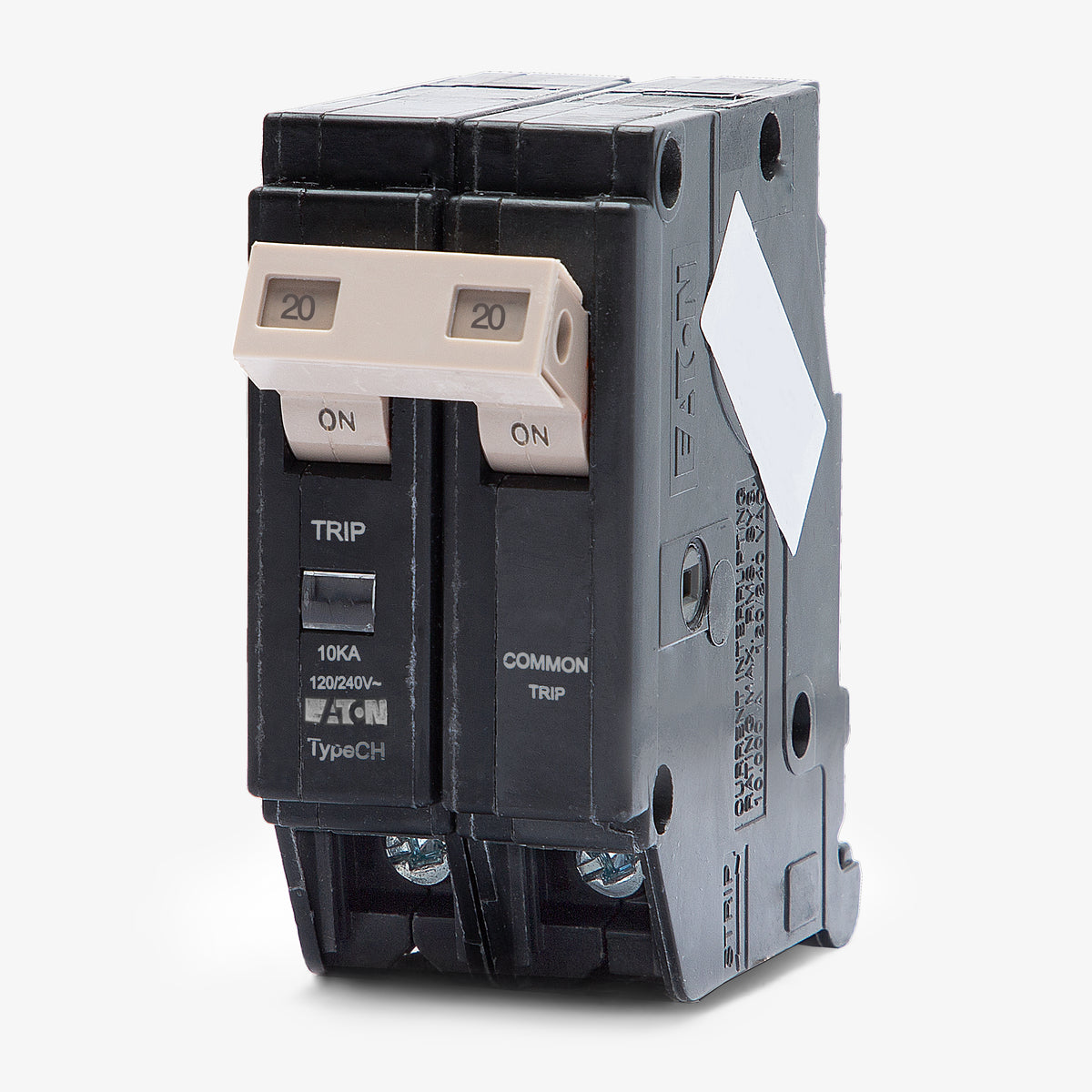

Eaton / Cutler-Hammer CHF220 Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHF220
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHF220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHF220 - 20A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Serving as an exact upgrade for the legacy CH220, the Eaton CHF220 delivers reliable thermal-magnetic protection for residential and commercial applications. This 2-pole, 20-amp plug-on breaker requires two 3/4-inch spaces in Type CH load centers and features an exclusive mechanical trip flag that visibly indicates when the circuit has tripped. The unit provides a 10kAIC interrupt rating at 120/240VAC, features common trip functionality, and is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHF220 |
| Series | CHF |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Trip Flag |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Visual Trip Indicator, Common Trip |
Product FAQs
7 answersCan I use the CHF220 to replace an older CH220 breaker?
Yes, the CHF220 is the direct, upgraded replacement for the legacy CH220. It fits the same Type CH loadcenters but adds a mechanical trip flag for clear visual trip indication.
How much panel space does this 2-pole breaker require?
The CHF220 requires two 3/4-inch spaces in an Eaton or Cutler-Hammer Type CH loadcenter, occupying a total width of 1.5 inches.
Will the CHF220 fit in an Eaton BR loadcenter?
No. Type CH breakers like the CHF220 have a 3/4-inch plug-on design and are exclusively compatible with Type CH loadcenters. They will not fit in 1-inch Type BR panels.
How does the trip flag and reset mechanism work on the CHF220?
When the breaker trips, a mechanical flag appears to visually confirm the tripped status. It also features a 1-step reset design, allowing you to turn the handle directly back to the ON position without having to force it to OFF first.
Is the CHF220 suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires a 20A, 2-pole circuit.
Can I connect two wires to the terminals on the CHF220?
Yes, the box lugs are rated to accept two 14 to 10 AWG copper or aluminum wires. If you are only connecting a single wire, the terminals accept 14 to 8 AWG.
Does the CHF220 feature an internal common trip?
Yes, this 2-pole breaker includes an internal common trip mechanism. If a fault occurs on either leg of the circuit, both poles will open simultaneously to disconnect power safely.
