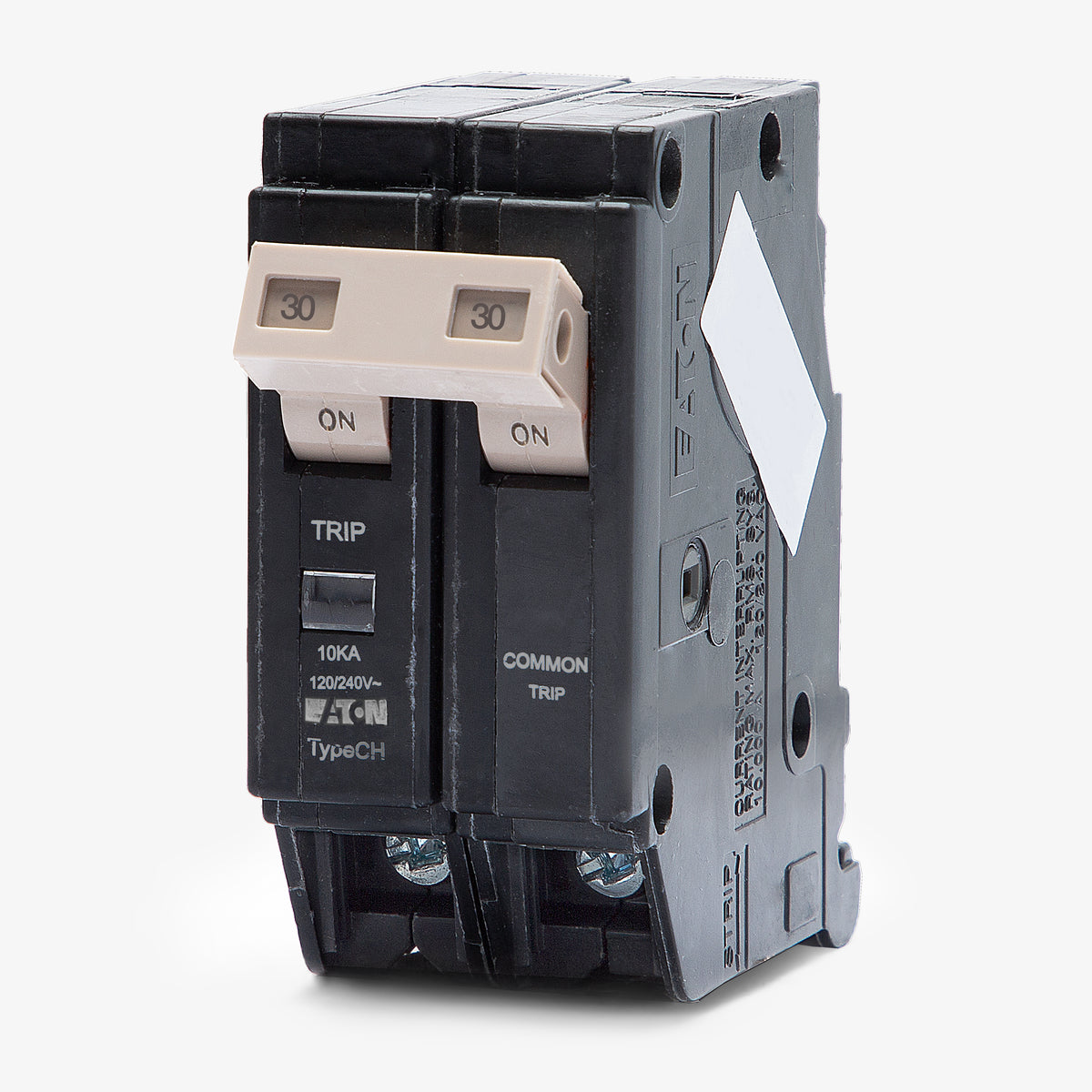

Eaton / Cutler-Hammer CHF230 Miniature Circuit Breaker
- 30A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHF230
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHF230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHF230 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
35A 2 Pole Miniature Circuit Breaker
25A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Providing robust thermal-magnetic protection, the Eaton CHF230 is a 30A, two-pole breaker designed for everyday electrical demands. It utilizes a trip-free mechanism for enhanced safety. This unit snaps into standard Eaton and Cutler-Hammer Type CH load centers. It functions as a drop-in replacement for the older CH230 model, occupying two panel spaces. With a 10kAIC rating at 120/240VAC, it includes a visual trip flag and is HACR rated for HVAC use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHF230 |
| Series | CHF |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Trip Flag |
| Standards | HACR, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Product FAQs
7 answersWhat is the difference between the Eaton CHF230 and the CH230?
The CHF230 is a direct replacement for the legacy CH230. The primary difference is that the CHF series features a mechanical trip flag indicator to visually confirm when the breaker has tripped. Both models share the same physical dimensions and mounting footprint.
Which load centers accept the CHF230 circuit breaker?
This plug-on breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It will not fit in Eaton BR series panels or load centers from other manufacturers.
How much panel space does this 2-pole breaker occupy?
The breaker requires two standard 3/4-inch spaces in a Type CH load center, occupying a total width of 1.5 inches.
Is the CHF230 rated for use with HVAC systems?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment requiring a 30A circuit.
Can I terminate two wires under a single lug on the CHF230?
Yes, the terminals are rated for dual wire connections. You can terminate either a single 14-8 AWG wire or two 14-10 AWG wires per lug, using copper or aluminum conductors.
Does this breaker provide common trip protection for 240V circuits?
Yes, it features an internal common trip mechanism. If an overload or short circuit occurs on either leg, both poles will disconnect simultaneously to ensure complete circuit isolation.
How does the trip flag indicator work on the CHF series?
When the breaker trips due to an overload or short circuit, a mechanical flag appears in the window next to the handle. This provides a clear visual distinction between a tripped breaker and one that has been manually turned off.
