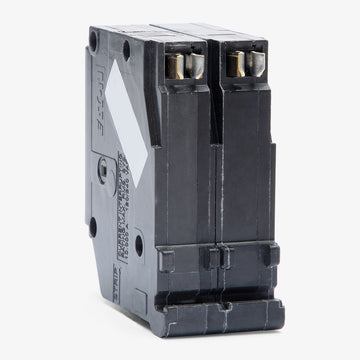

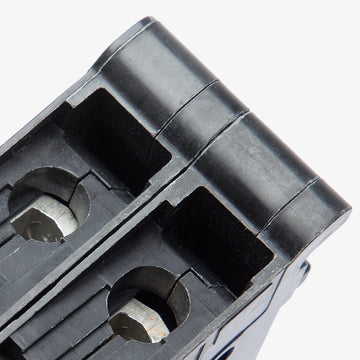

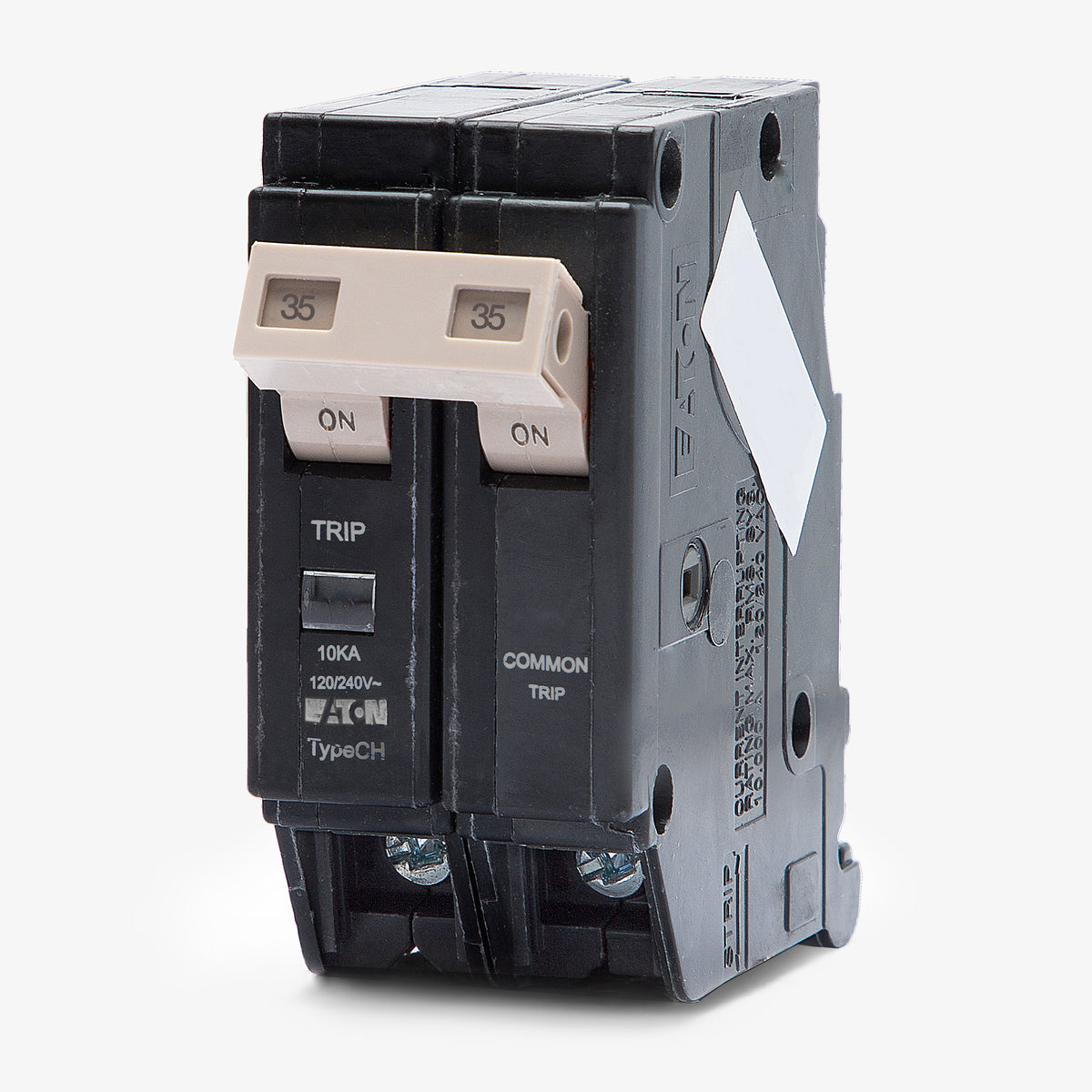

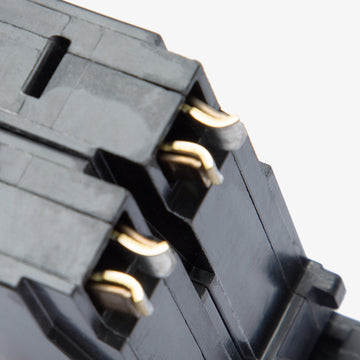

Eaton / Cutler-Hammer CHF235 Miniature Circuit Breaker
- 35A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHF235
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHF235
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHF235 - 35A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
40A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
30A 2 Pole Miniature Circuit Breaker
Description
Engineered for residential and commercial applications, this 35-amp component provides reliable thermal-magnetic protection. The integrated trip flag offers immediate visual confirmation when a fault occurs, saving time during maintenance. It installs into standard Eaton and Cutler-Hammer Type CH load centers. As an updated version of the legacy CH235, it maintains the classic 3/4-inch per pole footprint.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHF |
| Amperage | 35A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Trip Flag |
| Standards | CSA C22.2 No. 5, HACR Rated, UL 489 |
| Approval | CSA, UL, UL 489 |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Product FAQs
6 answersWhat is the difference between the Eaton CH235 and CHF235?
The CHF235 is the updated version of the CH235. The primary difference is that the CHF series includes a mechanical trip flag indicator that visually shows when the breaker has tripped. Both are 35A, 2-pole breakers that fit the same Type CH load centers.
Can I install the CHF235 in an Eaton BR load center?
No. The CHF235 is designed exclusively for Eaton Type CH load centers. Type CH breakers are 3/4-inch wide per pole, whereas Type BR breakers are 1-inch wide per pole and utilize a different mounting configuration.
How much panel space does the CHF235 require?
As a 2-pole Type CH breaker, the CHF235 requires two 3/4-inch spaces, taking up a total of 1.5 inches of width on the load center bus.
What is the purpose of the trip flag on the CHF235?
The mechanical trip flag provides a clear visual indication when the breaker has tripped due to an overload or short circuit. This makes it easier to distinguish a tripped breaker from one that has simply been turned to the OFF position.
Does the CHF235 require a neutral connection?
No. The CHF235 is a standard thermal-magnetic circuit breaker. Because it does not provide ground fault (GFCI) or arc fault (AFCI) protection, it does not require a neutral pigtail or a plug-on neutral connection.
What type of loads is the 35A CHF235 typically used for?
A 35A, 2-pole breaker like the CHF235 is commonly used for dedicated 240V residential and commercial circuits. Typical applications include specific HVAC equipment, water heaters, or heating appliances that explicitly require 35A overcurrent protection.
