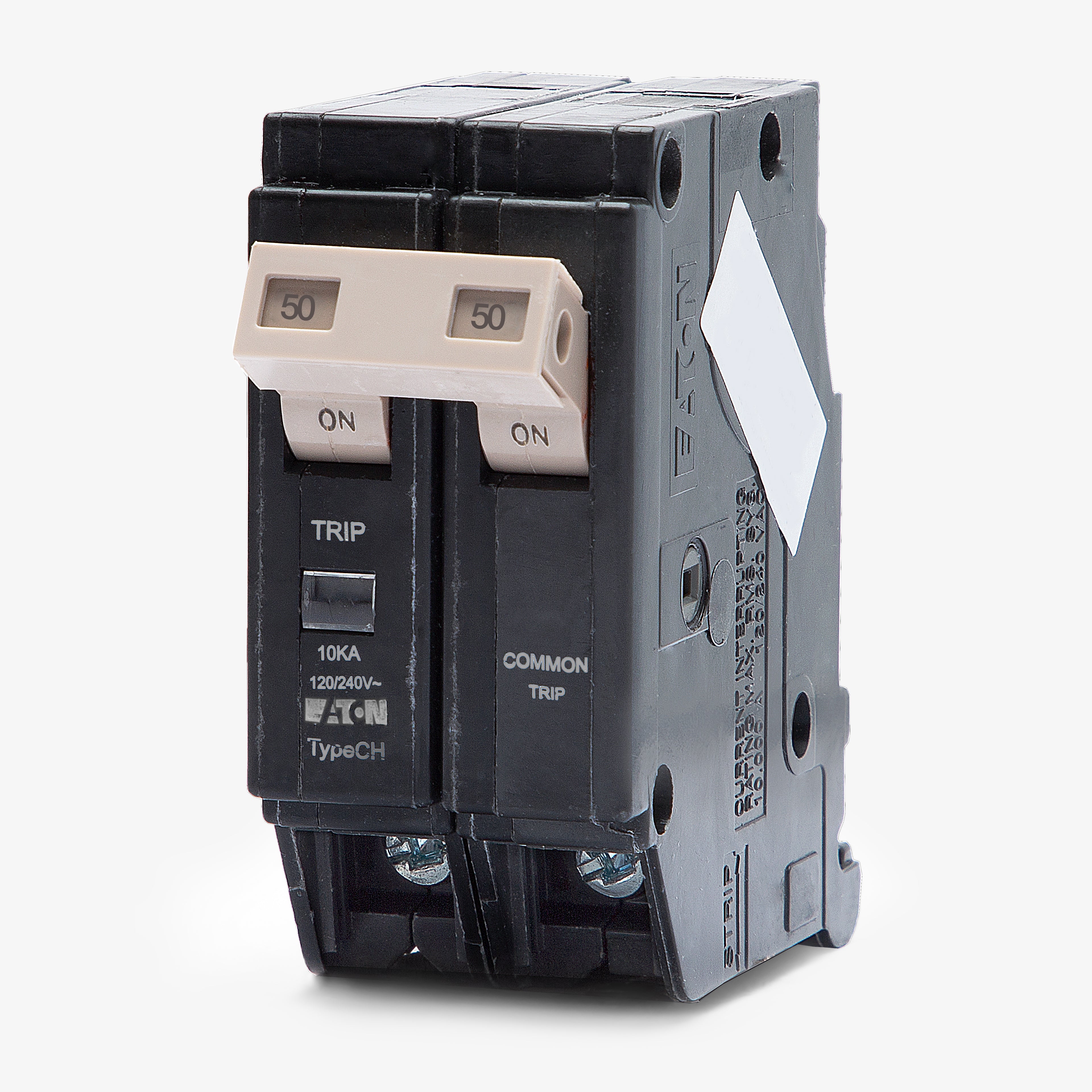

Eaton / Cutler-Hammer CHF250 Miniature Circuit Breaker
- 50A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHF250
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHF250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHF250 - 50A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
45A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Delivering 50 amps of power, the CHF250 provides robust thermal-magnetic overcurrent protection for residential electrical systems. The integrated trip flag visibly indicates the breaker's status, simplifying maintenance. Designed for seamless integration, it mounts into Eaton and Cutler-Hammer Type CH load centers. This plug-on breaker acts as an exact replacement for the older CH250 model. With a 10 kAIC rating at 120/240V, it features a common trip and is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHF250 |
| Series | CHF |
| Amperage | 50A |
| Poles | 2 |

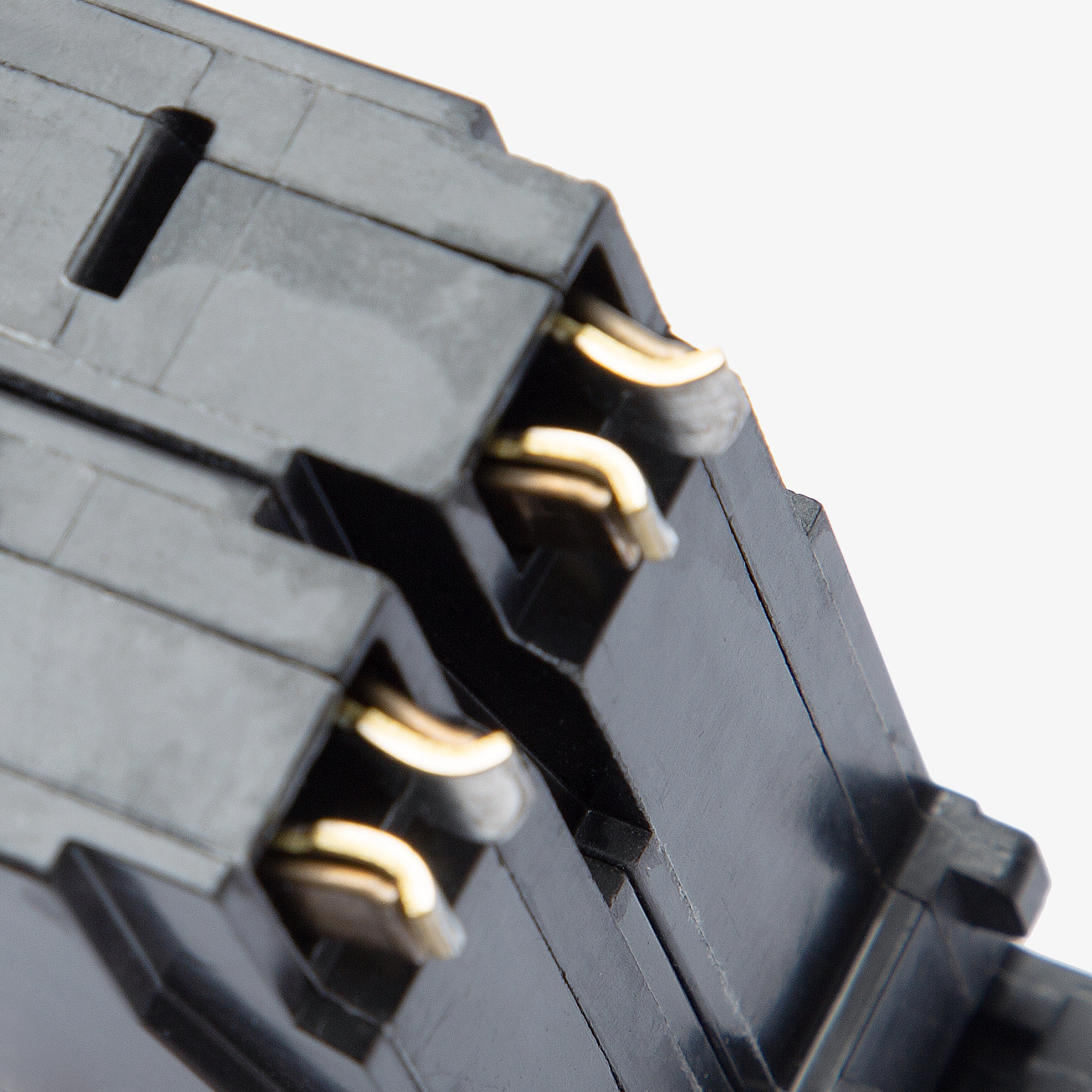

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|

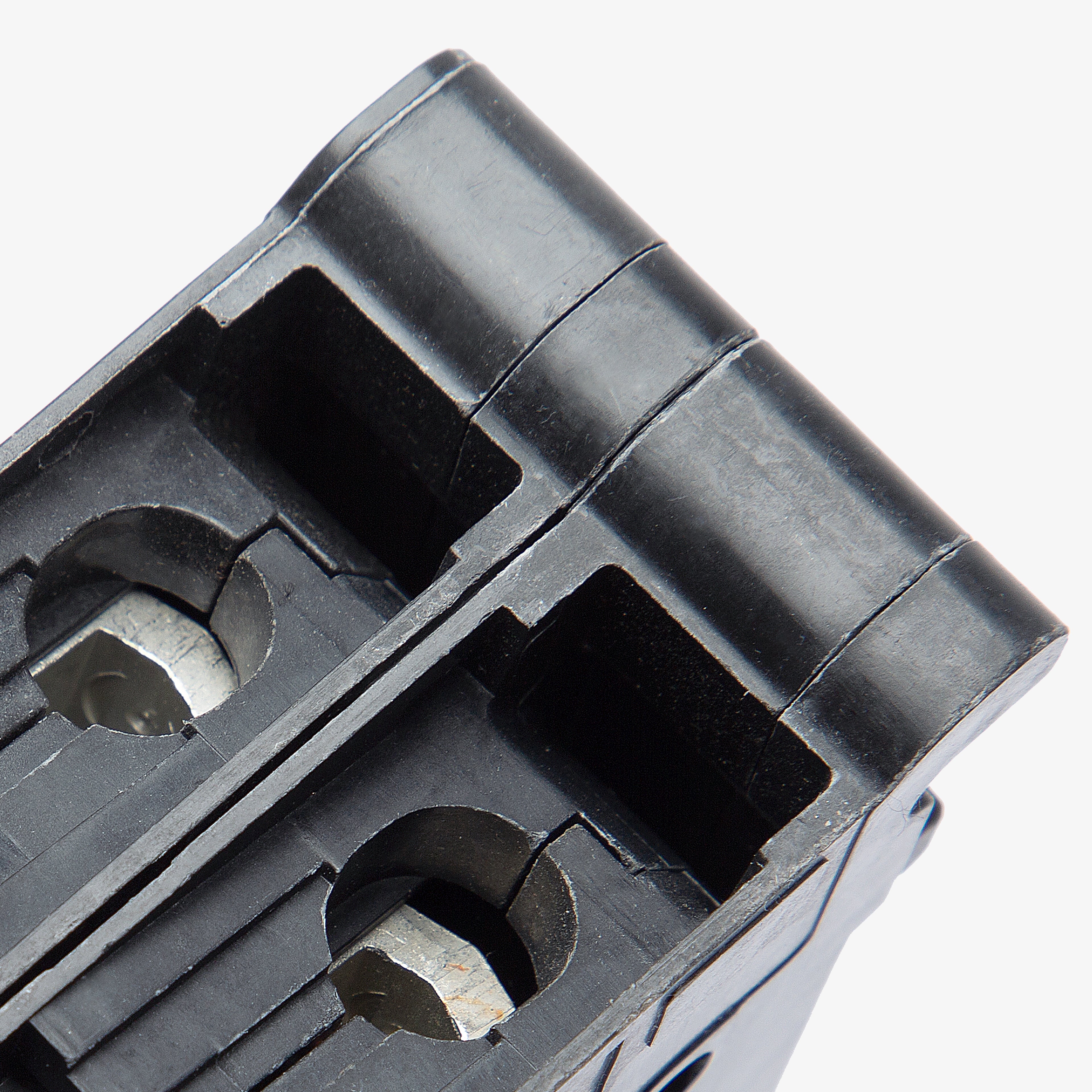

| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 10-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Trip Flag |
| Standards | HACR, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Visual Trip Indicator |
Product FAQs
6 answersWhat is the difference between the Eaton CH250 and the CHF250?
The CHF250 is the direct replacement for the older CH250. The CHF model upgrades the design by adding a mechanical trip flag, which provides a clear visual indication when the breaker has tripped. Both share the same physical dimensions and panel compatibility.
Is the CHF250 compatible with Eaton BR series load centers?
No. The CHF250 is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. Type CH breakers utilize a 3/4-inch per pole spacing, while Type BR panels require 1-inch per pole breakers and feature a different bus bar configuration.
How much panel space does the CHF250 require?
This 2-pole breaker requires two standard 3/4-inch spaces in a Type CH load center, occupying a total of 1.5 inches on the bus bar.
Is the CHF250 suitable for HVAC equipment?
Yes. The CHF250 is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires a 50A overcurrent protection device.
How does the trip indication and reset mechanism work on the CHF250?
The CHF250 features a trip-to-off mechanism and a mechanical trip flag. When a fault occurs, the handle moves directly to the OFF position and the flag becomes visible. This allows for a simple one-step reset by pushing the handle back to the ON position.
Can the CHF250 be used as a back-fed main breaker?
Yes, it can be used as a back-fed main. However, National Electrical Code (NEC) guidelines require it to be secured to the panel bus with an approved Eaton hold-down kit when used in this configuration.
