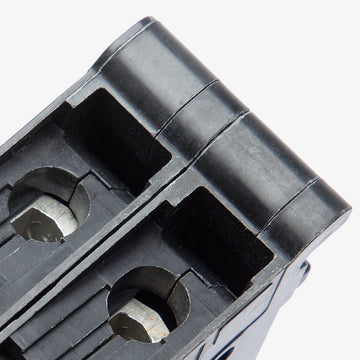

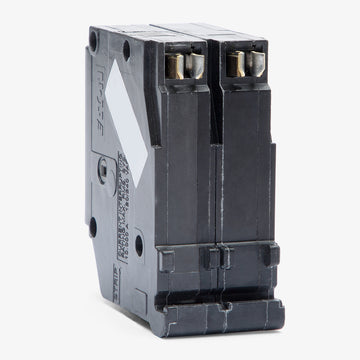

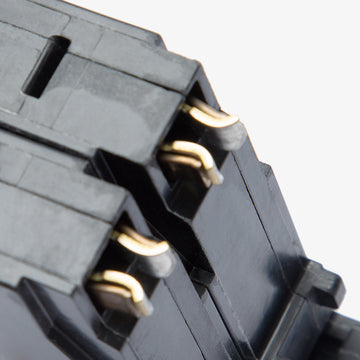

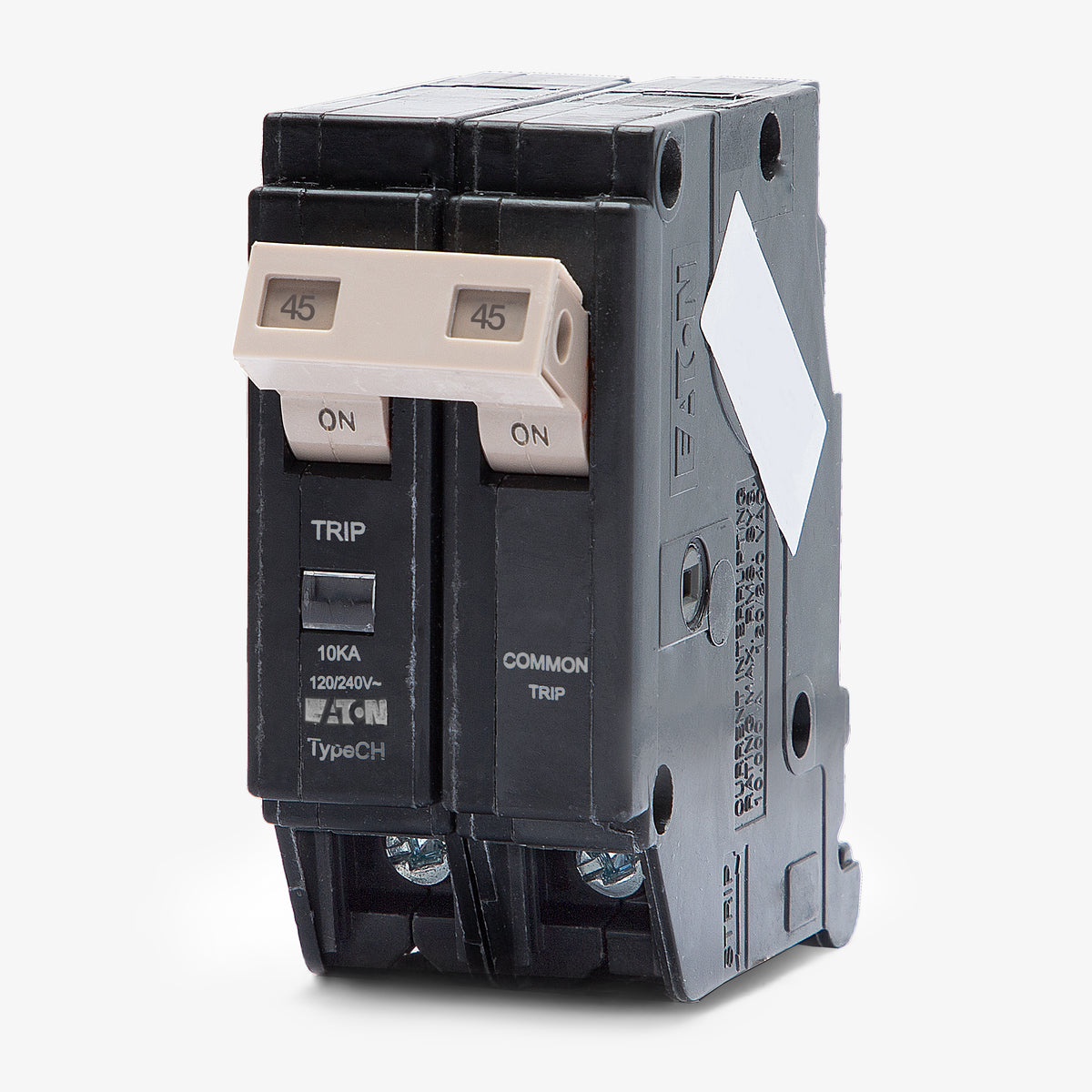

Eaton / Cutler-Hammer CHF245 Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHF245
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHF245
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHF245 - 45A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Engineered with a visual trip indicator, the CHF245 delivers reliable thermal-magnetic protection for residential applications. This 45-amp, two-pole miniature circuit breaker quickly identifies tripped circuits to simplify troubleshooting. It installs into Eaton and Cutler-Hammer Type CH load centers via standard plug-on mounting. This unit serves as an exact, upgraded replacement for the legacy CH245. Rated at 10 kAIC, it features an internal common trip and is HACR rated for HVAC use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CHF |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-2 AWG (Cu/Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Trip Flag |
| Standards | HACR Rated, UL 489 |
| Approval | UL, UL 489 |
| Temp Rating | 60C to 75C |
| Construction Features | Visual Trip Indicator, HACR Rated, Common Trip |
Product FAQs
7 answersWhat is the difference between the Eaton CH245 and the CHF245?
The CHF245 is the upgraded version of the standard CH245. It includes a mechanical trip flag that provides a clear visual indication when the breaker has tripped, making it easier to distinguish from a breaker that has simply been turned off.
Which load centers are compatible with the CHF245 circuit breaker?
This breaker is designed exclusively for use in Eaton and Cutler-Hammer Type CH load centers. It features a proprietary 3/4-inch per pole plug-on design that will not fit in Type BR panels or load centers from other manufacturers.
Is the Eaton CHF245 HACR rated?
Yes, this breaker is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific safety designation.
Does the CHF245 require a neutral pigtail connection?
No, this is a standard thermal-magnetic circuit breaker. It does not require a neutral pigtail because it does not provide arc-fault (AFCI) or ground-fault (GFCI) protection.
How does the common trip feature work on this 2-pole breaker?
The CHF245 features an internal common trip mechanism. If an overload or short circuit occurs on either leg of the circuit, both poles will trip simultaneously to safely disconnect all power to the 240V load.
Can I install this breaker in a Square D or Siemens panel?
No. The CHF245 has a proprietary mounting clip and footprint specific to the Eaton Type CH platform. It is not interchangeable with Square D, Siemens, or GE load centers.
What does the trip flag on the CHF245 indicate?
The mechanical trip flag provides a high-visibility alert when the breaker has tripped due to an overcurrent or short circuit event. This allows electricians and homeowners to quickly identify the tripped circuit in a crowded panel without having to test each handle.
