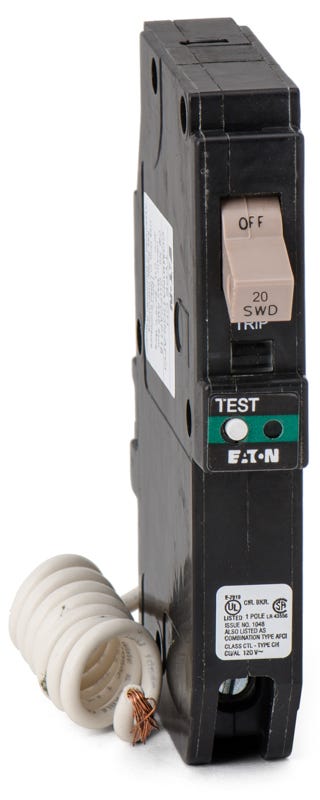

Eaton / Cutler-Hammer CHFCAF120 AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFCAF120
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFCAF120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFCAF120 - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFN120AF
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Part of Eaton's CH family, the CHFCAF120 delivers 20A combination arc-fault protection. It features a pigtail neutral for residential applications requiring advanced arc mitigation. This unit installs into Eaton Type CH load centers and replaces older CH120CAF models, ensuring compatibility with 3/4-inch format panelboards. Rated at 10 kAIC, it detects series and parallel arcs to meet NEC standards. A built-in diagnostic LED and trip flag help quickly identify fault conditions.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHFCAF120 |
| Series | CHF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 1699, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Visual Trip Indicator, HACR Rated, SWD Rated |
Product FAQs
6 answersWhat older Eaton or Cutler-Hammer breakers does the CHFCAF120 replace?
The CHFCAF120 is the direct replacement for the older CH120CAF combination arc fault breakers. It fits standard 3/4-inch Eaton Type CH loadcenters.
Does this breaker use a plug-on neutral or a pigtail connection?
This specific model features a pigtail neutral wire. The white pigtail must be connected directly to the neutral bar in the loadcenter for the arc fault protection to function correctly.
How do I wire the load neutral for this AFCI breaker?
The load neutral wire from your branch circuit must be inserted into the breaker lug positioned under the white dot on the breaker.
What is the purpose of the diagnostic LED on the CHFCAF120?
The built-in diagnostic LED indicates the most recent trip code, and the visual trip flag shows when the breaker has tripped. This helps electricians quickly identify whether the breaker tripped due to an arc fault, overload, or short circuit.
Can I install this breaker in an Eaton BR series panel?
No. The CHFCAF120 is designed exclusively for Eaton Type CH loadcenters, which use a 3/4-inch format. It is not compatible with 1-inch BR series panels.
What type of arc fault protection does this breaker provide?
It is a Combination Arc Fault Circuit Interrupter (CAFCI), meaning it detects both series and parallel arcing faults to meet National Electrical Code (NEC) requirements for residential dwelling areas.
