Eaton / Cutler-Hammer CHFCAF115 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFCAF115
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFCAF115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

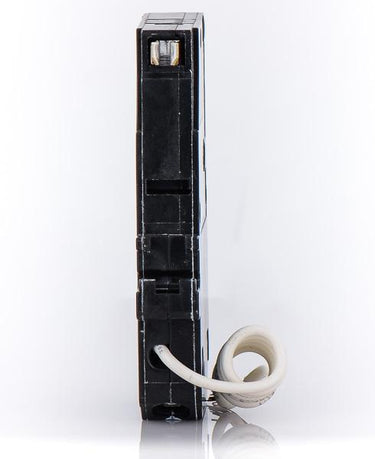

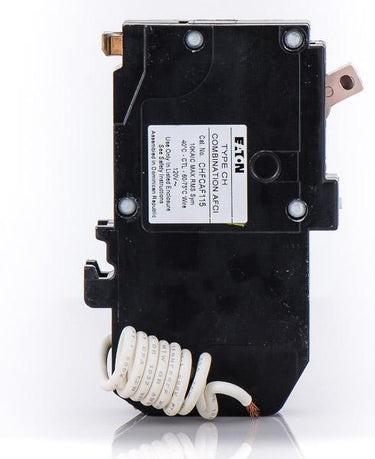

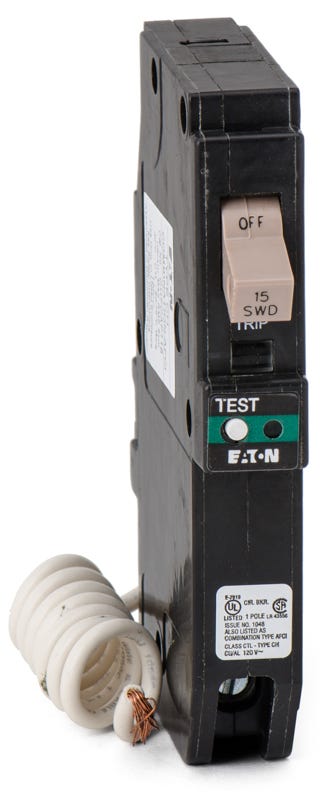

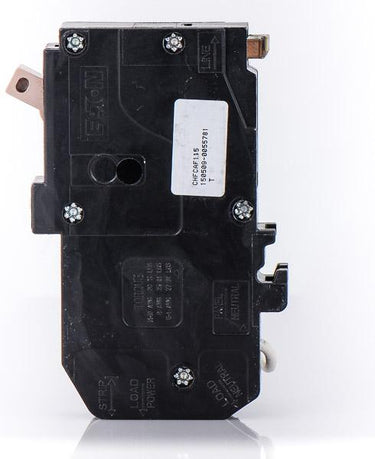

Eaton / Cutler-Hammer CHFCAF115 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFN115AF
15A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
Description
Part of the CH series, the Eaton CHFCAF115 provides 15A combination arc-fault protection for residential circuits. This single-pole miniature circuit breaker features a pigtail neutral connection and is designed specifically for Type CH load centers. Equipped with a visual trip flag and a diagnostic LED, it allows users to easily identify the cause of a fault.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHFCAF115 |
| Series | CHF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type CH Loadcenters |
| Wire Gauge | (1) 14-8 AWG (Cu/Al) or (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersWhich loadcenters accept the CHFCAF115 breaker?
This breaker is designed specifically for Eaton and Cutler-Hammer Type CH loadcenters. It is not compatible with Type BR panels or panels from other manufacturers.
Does the CHFCAF115 require a plug-on neutral panel?
No. This breaker features a pigtail neutral connection. The attached white wire must be routed and connected directly to the neutral bus bar in the loadcenter.
What wire gauges are approved for the box lugs on this breaker?
The terminals can accommodate a single 14 AWG to 8 AWG copper or aluminum wire, or two 14 AWG to 10 AWG copper or aluminum wires.
What does combination arc fault protection mean for this breaker?
As a combination AFCI, it detects and mitigates both parallel and series arcing faults. This provides comprehensive protection against electrical fires and meets NEC requirements for residential branch circuits.
How does the CHFCAF115 differ from the older CHCAF115?
The CHFCAF115 is the updated version of the CHCAF115. The CHF series includes a visual trip flag indicator and diagnostic LED, allowing users to quickly identify when and why the breaker has tripped.
Is the CHFCAF115 suitable for systems with high available fault current?
This breaker has a standard interrupting rating of 10 kAIC at 120/240V. It is not intended for commercial or residential systems requiring a higher short circuit current rating.
