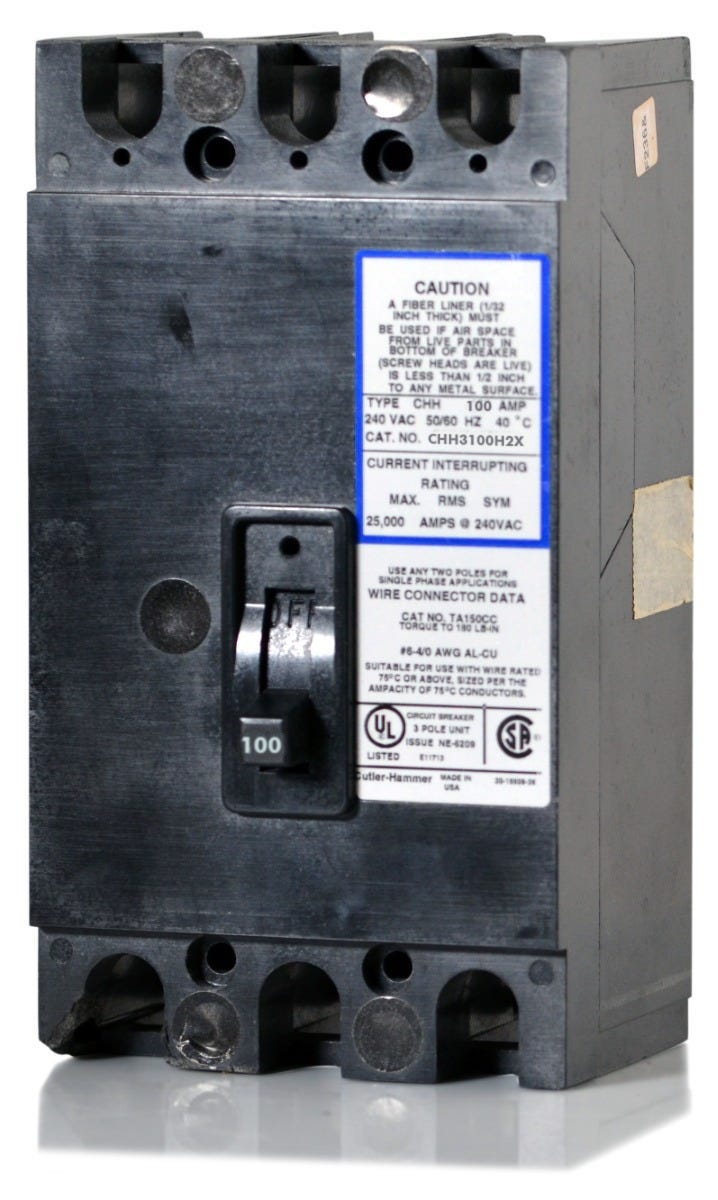

Eaton / Cutler-Hammer CHH3100H2X Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH3100H2X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH3100H2X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHH3100H2X - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH3150H2X
150A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and residential tenant main applications, the Eaton CHH3100H2X is a 3-pole, 100A molded case circuit breaker. It features thermal-magnetic trip technology with fixed long-time and instantaneous functions to ensure reliable system safety. This unit installs into Eaton 35MM, 37MM, and 37SS modular metering stacks via a secure bolt-on connection. It serves as a reliable replacement for older panels, eventually being replaced by the CVS3100XMM.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH3100H2X |
| Series | CHH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | CHH |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Modular Metering Stacks (35MM, 37MM, 37SS) |
| Wire Gauge | #2 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | #2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main |
Product FAQs
7 answersWhich metering stacks are compatible with the CHH3100H2X tenant main breaker?
This breaker is designed exclusively for use in Eaton and Cutler-Hammer commercial modular metering stacks, specifically the 35MM, 37MM, 35SS, and 37SS series.
What does the H2X suffix mean in the CHH3100H2X part number?
The H2X suffix designates the interrupting capacity of the breaker. In the CHH frame family, H2X indicates a 25kAIC rating at 240V AC, distinguishing it from higher capacity variants like the H4X or X models.
What wire sizes are supported by the lugs on this breaker?
The factory-installed lugs accept conductor sizes ranging from #2 AWG up to 300 kcmil. They are rated for use with both copper and aluminum wiring.
Are the trip settings on the CHH3100H2X adjustable?
No, this breaker utilizes a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions. It does not offer field-adjustable trip dials.
Is this 3-pole breaker suitable for single-phase 120/240V AC metering stacks?
No, 3-pole tenant main breakers like the CHH3100H2X are designed for three-phase 208Y/120V AC modular metering applications. Single-phase 120/240V AC stacks require a 2-pole breaker.
How is the CHH3100H2X secured inside the metering stack?
It utilizes a bolt-on connection, bolting directly to the busbar within the tenant main section of the modular metering enclosure.
Is there a newer replacement model for the CHH3100H2X?
Yes, the CHH3100H2X is eventually being replaced by the Eaton CVS3100XMM tenant main circuit breaker for future upgrades and panel replacements.
