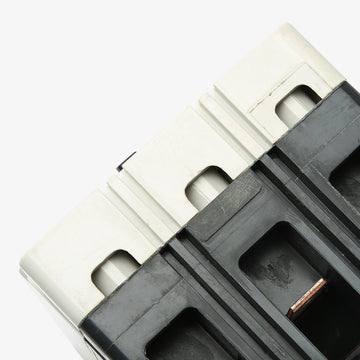

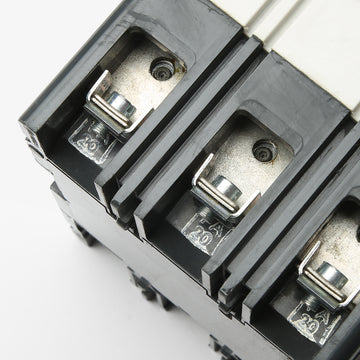

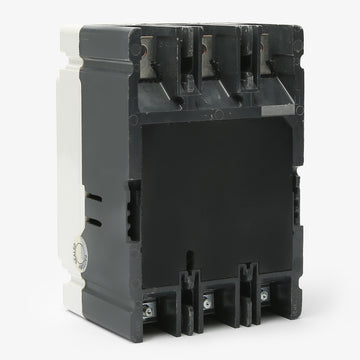

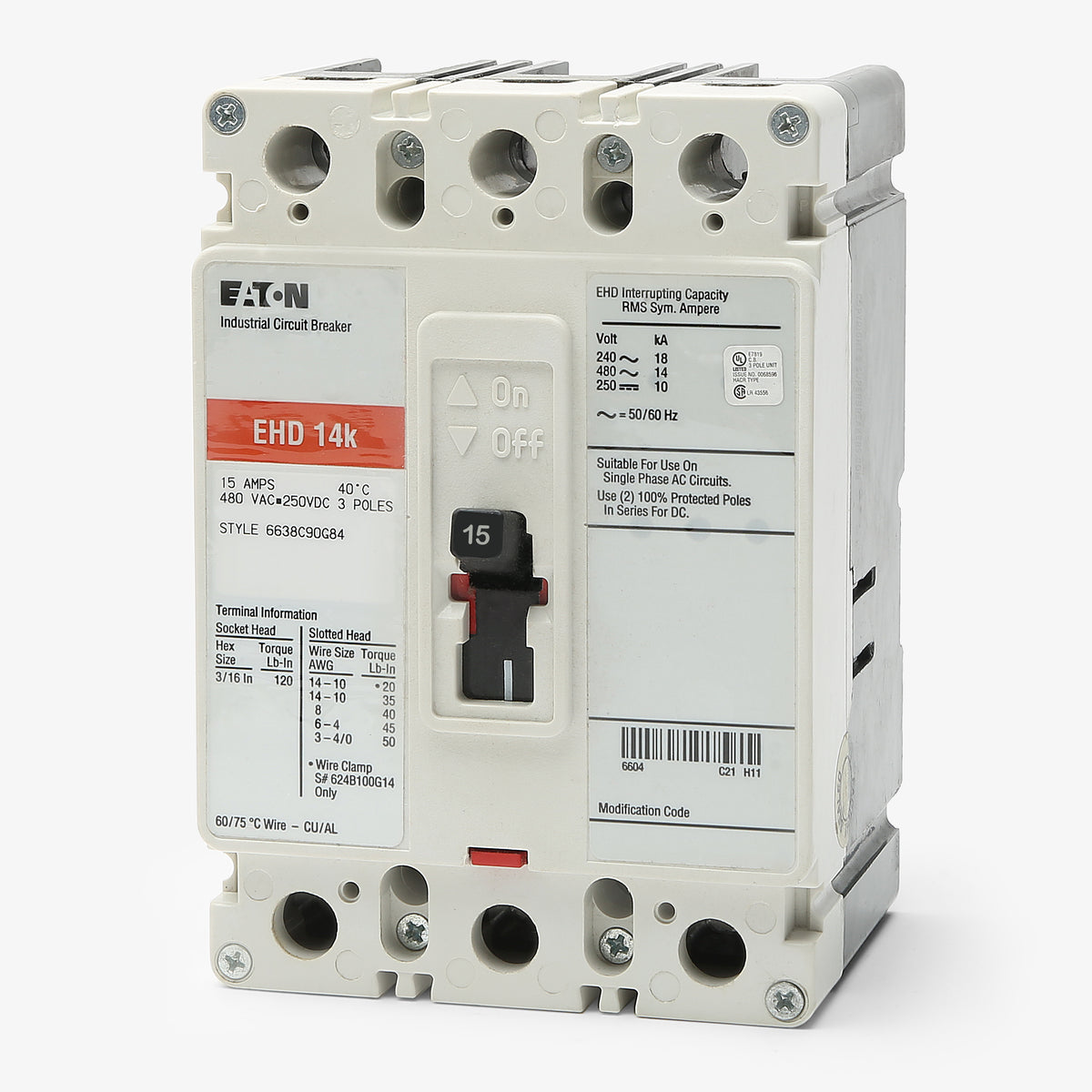

Eaton / Cutler-Hammer EHD3015L Molded Case Circuit Breaker
- 15A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EHD3015L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD3015L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHD3015L - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
40A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial applications, this 15A F-Frame breaker delivers dependable long-time and instantaneous trip functions. It installs into Eaton Series C panelboards, motor control centers, and switchgear requiring unit-mount configurations. The EHD3015L includes factory-installed line and load lugs for immediate wire termination. Rated for 14kAIC at 480VAC, it supports reverse feed operations and carries HACR and HID certifications for specialized commercial lighting and HVAC loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHD3015L |
| Series | EHD |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersWhat enclosures and panelboards are compatible with the EHD3015L?
The EHD3015L is an F-frame breaker designed for use in Eaton Series C panelboards, switchboards, and motor control centers.
What is the difference between the EHD3015 and EHD3015L catalog numbers?
The L suffix in EHD3015L indicates that the breaker is supplied with both line and load side lugs. The standard EHD3015 typically comes with load side lugs only.
Can the EHD3015L be used in direct current (DC) systems?
Yes, this breaker is rated for DC applications up to 250 VDC with an interrupting capacity of 10 kAIC.
Is the EHD3015L suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it approved for use with heating, air conditioning, and refrigeration equipment.
What wire sizes do the standard lugs on the EHD3015L accept?
The factory-installed line and load lugs accept wire gauges from 14 AWG up to 1/0 AWG.
Does the EHD3015L feature adjustable trip settings?
No, this breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous trip functions. It cannot be field-adjusted.
