Eaton / Cutler-Hammer EHD3035L Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EHD3035L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD3035L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHD3035L - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
15A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power distribution, the Eaton EHD3035L is a 3-pole, 35A unit mount MCCB from the Series C family. It utilizes fixed thermal and magnetic trip technology for consistent LI protection. Equipped with line and load lugs, this F-frame breaker mounts into Eaton enclosures and MCCs. It crosses to FDB3035L and FD3035L, and is replaced by the PDG23F0035TFFJ. Delivering 14 kAIC at 480VAC, the device is HACR and HID rated, and accommodates reverse feed wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHD3035L |
| Series | EHD |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Enclosures, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersAre line and load lugs included with the EHD3035L?

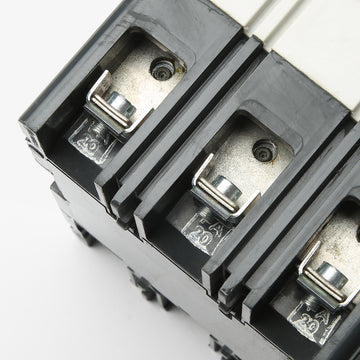

Yes, the L suffix in the catalog number indicates that this breaker comes factory-equipped with both line and load side lug terminals.
Can I use the EHD3035L to replace an older Westinghouse EHD breaker?
Yes. Eaton acquired the Westinghouse and Cutler-Hammer molded case circuit breaker lines. The current Series C EHD3035L is a direct replacement for older Westinghouse breakers with the exact same catalog number.
What type of panelboards will accept this breaker?
This F-frame unit mount breaker is designed for use in Eaton Series C panelboards, compatible motor control centers, and standalone enclosures.
Does this breaker feature an adjustable trip setting?
No, this model features a non-interchangeable, fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous protection without field adjustability.
Is this breaker suitable for direct current applications?
Yes, the EHD3035L is rated for use in DC systems up to 250VDC, providing a 10kA interrupting capacity for those specific applications.
What wire sizes are compatible with the standard lugs on this breaker?
The standard lugs accept wire gauges from 14 AWG up to 1/0 AWG. Ensure you use properly rated conductors as specified by your local electrical code.
