Eaton / Cutler-Hammer EHD3060L Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EHD3060L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EHD3060L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EHD3060L - 60A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
80A 3 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Designed for standalone mounting, this 60-amp thermal-magnetic breaker provides essential overcurrent protection for commercial and industrial power systems. The unit-mount configuration features factory-installed line and load lugs, making it ideal for integration into Eaton Series C switchboards. It is part of the legacy F-Frame migration path, eventually replaced by the PDG23F0060TFFJ. With an 18kAIC rating at 240VAC, this HACR-rated component supports reverse feeding and field accessories.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EHD3060L |
| Series | EHD |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|

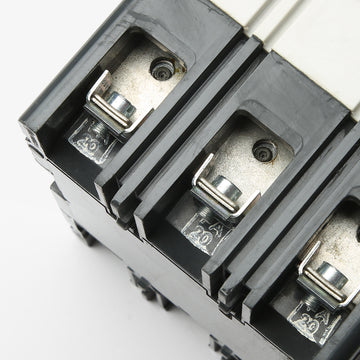

| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat enclosures or panelboards accept the EHD3060L?
This F-frame breaker is designed for use in Eaton Series C panelboards, switchboards, and motor control centers.
What is the difference between the EHD3060 and EHD3060L?
The "L" suffix in the EHD3060L catalog number indicates that the breaker comes factory-equipped with standard line and load side lugs. The EHD3060 is the base breaker without lugs.
Can the EHD3060L be mounted on a DIN rail?
Yes, this Series C F-frame breaker can be DIN rail mounted, but it requires a specific adapter bracket, such as the Eaton EF34DIN, which is sold separately.
Is the EHD3060L suitable for direct current (DC) applications?
Yes, it is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific DC control circuits or solar applications.
Can this breaker be reverse fed?
Yes, Eaton Series C F-frame thermal-magnetic breakers, including the EHD3060L, are suitable for reverse feed applications.
Can I use the EHD3060L to replace an older FD or HFD breaker?
The EHD3060L shares the same physical F-frame dimensions as FD and HFD breakers, but it has a lower interrupting capacity (14kA at 480VAC). It can physically fit in the same space, but you must verify that your system fault current does not exceed the EHD ratings.
What is the modern replacement for the EHD3060L?
Eaton Power Defense (PDG1) series is the modern replacement for Series C F-frame breakers. Upgrading to a Power Defense breaker requires updated Eaton mounting hardware.
