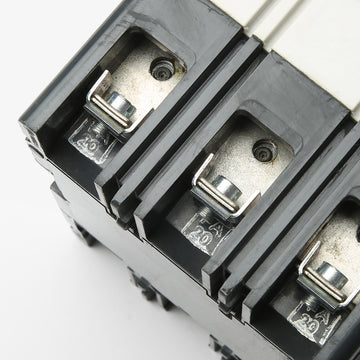

Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker - view 4
Free Shipping Over $99
Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker - view 2
Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker - view 3
Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker - view 4

Eaton / Cutler-Hammer EHD3090L Molded Case Circuit Breaker

  • 90A
  • 3 Pole
  • Unit Mount
Eaton / Cutler-Hammer EHD3090L
Molded Case Circuit Breaker
Brand Eaton / Cutler-Hammer
SKU EHD3090L
Select Item Condition
Earn 527 SuperPoints
  • 90A
  • 3 Pole
  • Unit Mount

Quantity

Bulk Pricing
Send your parts list for a volume quote.
Request Pricing
Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker

Eaton / Cutler-Hammer EHD3090L - 90A 3 Pole Molded Case Circuit Breaker

New

$527.00 In Stock

Quantity

Similar Items

Description SpecificationsProduct FAQs SuperClub Warranties Shipping Reviews 5.0 (13)

Description

Operating as a standalone overcurrent device, this 90-amp unit-mount MCCB delivers reliable thermal-magnetic protection. The L suffix indicates factory-installed line and load lugs. This configuration mounts into standard Eaton enclosures and control panels rather than bolting to a busbar. It provides a versatile solution for isolated circuit protection needs. Delivering 14kAIC at 480VAC, the F-Frame breaker features a quick-make, quick-break mechanism. It is fully HACR rated.

Specifications

Key specifications
Brand Eaton / Cutler-Hammer
Part Number EHD3090L
Series EHD
Amperage 90A
Poles 3
Mounting Style Unit Mount
Voltage 240VAC, 480VAC, 250VDC
Phase 3
AIC Rating 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC
Fit and installation
Terminal Type Lugs
For Use With Eaton Series C Panelboards, Switchboards, Enclosures
Wire Gauge 14-1/0 AWG
Max Wire 1/0 AWG
Min Wire 14 AWG
Protection and operation
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed Thermal, Fixed Magnetic
Standards and features
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Line and Load Lugs
Standards CSA C22.2 No. 5, NEMA AB-1, UL 489
Approval CSA, UL
Temp Rating 40C
Construction Features HACR Rated, Reverse Feed, Non-Interchangeable Trip, Quick-Make/Quick-Break, Trip-Free Mechanism

Product FAQs

5 answers
What is the difference between the Eaton EHD3090 and EHD3090L?

The "L" suffix in the EHD3090L catalog number indicates the breaker is supplied with standard line and load side lugs installed from the factory. The base EHD3090 does not include lugs.

Which Eaton panelboards are compatible with the EHD3090L circuit breaker?

This F-frame breaker is designed for use in Eaton Series C panelboards, switchboards, and enclosures. It can be installed in PRL3a and PRL4 panelboards when equipped with the correct F-frame connector kits, such as the KPRL3AFD3 or KPRL4FD.

Is the EHD3090L suitable for reverse feed applications?

Yes, Eaton Series C F-frame thermal-magnetic circuit breakers, including the EHD3090L, are suitable for reverse feed use.

What are the lug torque specifications for the EHD3090L?

For the standard slotted-head lugs accepting 14 to 1/0 AWG wire, the required torque varies by wire size: 35 lb-in for 14-10 AWG, 40 lb-in for 8 AWG, 45 lb-in for 6-4 AWG, and 50 lb-in for 3 to 1/0 AWG.

Is the EHD3090L rated for use in DC circuits?

Yes, this breaker is rated for DC applications up to 250VDC with a 10kA interrupting capacity. Depending on the system voltage and whether the load is grounded or ungrounded, multiple poles may need to be wired in series.
