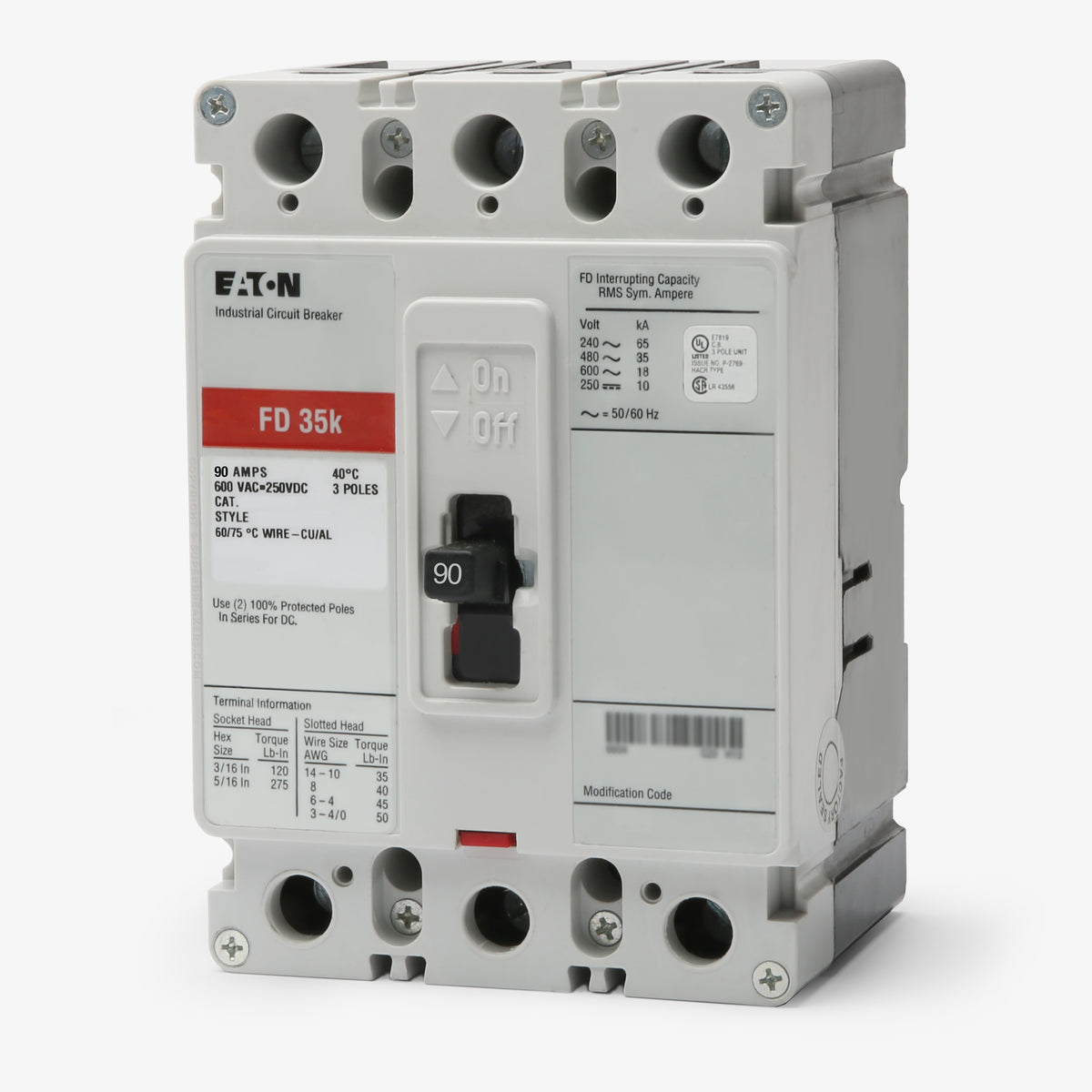

Eaton / Cutler-Hammer FD3090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
FD3090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FD3090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FD3090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FD3090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3090 |
| Series | FD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Quantity
Eaton / Cutler-Hammer FD3090 - 90A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3090-R |
| Series | FD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Similar Items
110A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial distribution, the Eaton FD3090 is a 3-pole, 90A molded case circuit breaker from the proven Series C F-Frame line. It provides dependable long-time and instantaneous (LI) thermal-magnetic protection for demanding electrical systems. This bolt-on MCCB installs into Eaton Series C panelboards, switchboards, and motor control centers. It features load-side lugs and is reverse feed capable. Rated at 35kAIC at 480V and 65kAIC at 240V, it meets UL 489 standards.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FD3090-R |
| Series | FD |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Load Side Lugs |
| Standards | HACR, UL 489, CSA C22.2 No. 5, NEMA AB-1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat panelboards are compatible with the FD3090?
This F-frame breaker is designed specifically for Eaton Series C panelboards, switchboards, and motor control centers. It is a commercial and industrial bolt-on breaker and will not fit in standard residential load centers like the Eaton BR or CH series.
Can the FD3090 be reverse fed?
Yes. Eaton Series C F-frame thermal-magnetic circuit breakers are suitable for reverse feed applications. They do not have line and load side restrictions, allowing for flexible installation in control panels and switchboards.
What is the difference between the FD3090, HFD3090, and FDC3090?
These breakers share the same physical F-frame dimensions and mounting footprint but differ in their interrupting capacity. The FD3090 is rated at 35kAIC at 480VAC, the HFD3090 is rated at 65kAIC at 480VAC, and the FDC3090 is rated at 100kAIC at 480VAC.
Is the FD3090 rated for 100 percent continuous operation?
No. Like most standard molded case circuit breakers, the FD3090 is rated for 80 percent continuous duty. For continuous loads lasting three hours or more, the load should not exceed 72 amps, which is 80 percent of its 90A rating.
Is the FD3090 HACR rated?
Yes. Eaton Series C F-frame circuit breakers are HACR rated, making them suitable for protecting heating, air conditioning, and refrigeration equipment circuits that require this specific safety designation.
Can I use the FD3090 to replace an older Westinghouse or Cutler-Hammer FD breaker?
Yes. Eaton acquired the Westinghouse distribution equipment line and later transitioned the Cutler-Hammer name to Eaton. A modern Eaton FD3090 is a direct replacement for older Westinghouse or Cutler-Hammer FD3090 breakers, as they share the same Series C F-frame design.
