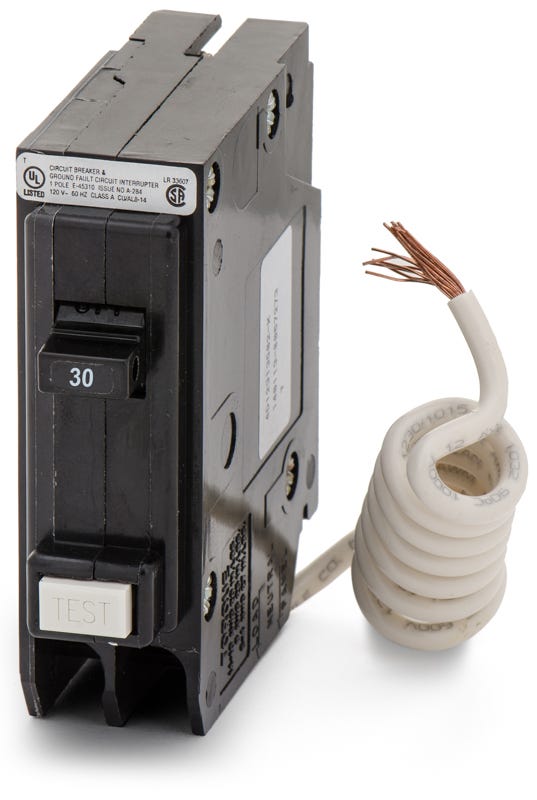

Eaton / Cutler-Hammer GFCB130 GFCI Miniature Circuit Breaker
- 30A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
GFCB130
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFCB130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFCB130 - 30A GFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer GFCB130 - 30A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB130 |
| Series | GFCB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer GFCB130 - 30A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB130-R |
| Series | GFCB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
15A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
Description
Designed for residential applications, the Eaton GFCB130 provides essential Class A ground-fault protection. This 1-pole, 30A breaker operates at 120VAC with a pigtail neutral. It mounts into standard Type BR load centers using a plug-on configuration. For replacement scenarios, this model is superseded by the BRN130GF or GFTCB130. Rated at 10kAIC, it utilizes thermal-magnetic technology with a 5mA trip sensitivity to quickly disconnect power during a ground fault, meeting NEC requirements.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB130 |
| Series | GFCB |
| Amperage | 30A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat load centers are compatible with the GFCB130 circuit breaker?
The GFCB130 is designed for use in Eaton and Cutler-Hammer Type BR load centers. It requires a single 1-inch space for installation.
Is there a plug-on neutral equivalent for the GFCB130?
Yes, the BRN130GF is the plug-on neutral version of this 30A breaker. The GFCB130 uses a traditional pigtail neutral and is intended for standard Type BR panels that do not support plug-on neutral installation.
Does the Eaton GFCB130 replace older Cutler-Hammer models?
Yes, the Eaton GFCB130 is a direct replacement for legacy Cutler-Hammer GFCB130 and GFTCB130 30A GFCI breakers.
What is the ground fault trip sensitivity of the GFCB130?
This breaker features a 5mA Class A ground fault trip sensitivity, which is designed to protect personnel from electrical shock.
How is the pigtail neutral connected on the GFCB130?
The coiled white pigtail neutral wire must be connected directly to the neutral bus bar in the load center. This connection is required to power the internal ground fault sensing circuitry.
Can the GFCB130 be used for 240V circuits?
No, the GFCB130 is a 1-pole breaker rated for 120V applications only. A 2-pole GFCI breaker, such as the GFCB230, is required for 240V circuits.
