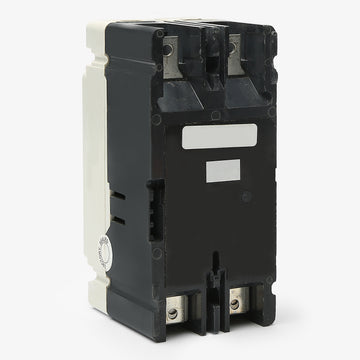

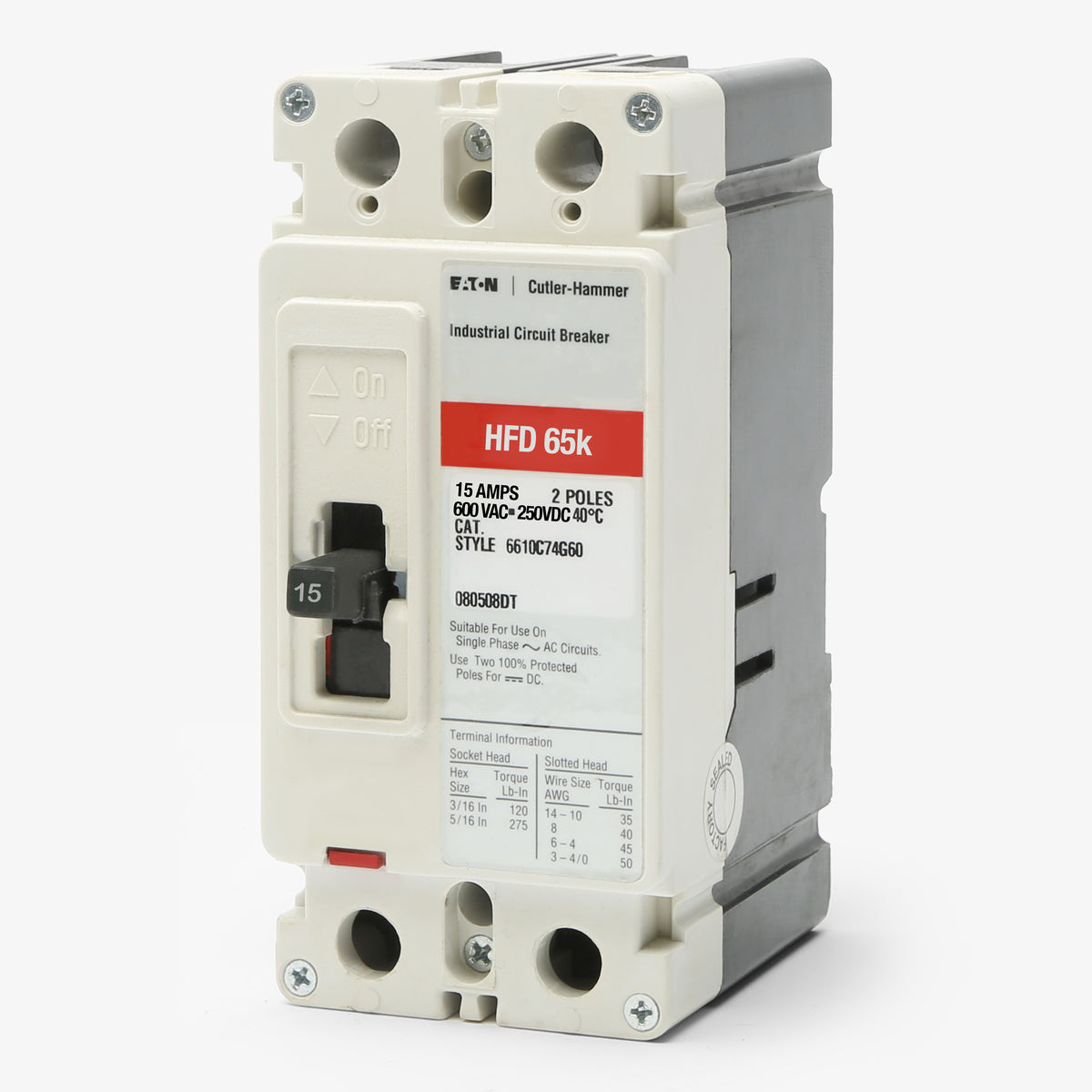

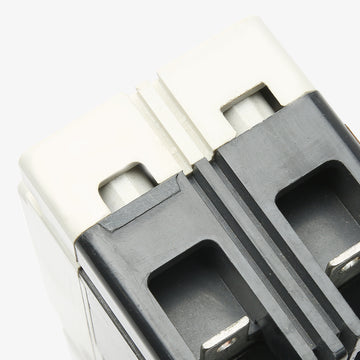

Eaton / Cutler-Hammer HFD2015 Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFD2015
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD2015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD2015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD2015 - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD2015 |
| Series | HFD |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Current Limiting |
Quantity
Eaton / Cutler-Hammer HFD2015 - 15A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD2015-R |
| Series | HFD |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Current Limiting |
Similar Items
2 Pole Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Engineered for 600VAC systems, the HFD2015 is a two-pole, 15A MCCB from Eaton's Series C family. It features fixed thermal-magnetic trip functions for precise LI protection. The F-Frame device mounts into Series C panelboards. For facilities transitioning to newer platforms, it crosses over to the Power Defense PDG22M0015TFFJ. This breaker achieves a 65 kAIC rating at 480VAC. It is HACR, HID, and SWD rated, making it versatile for lighting and motor loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD2015-R |
| Series | HFD |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | FD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Current Limiting |
Product FAQs
5 answersCan the HFD2015 replace standard FD2015 or FDB2015 breakers?
Yes. The HFD2015 shares the exact same physical F-frame dimensions as the FD2015 and FDB2015. The H prefix indicates a higher interrupting rating (65kAIC at 480VAC), making it a safe, direct upgrade for standard or low-interrupting Series C breakers.
What panelboards accept the HFD2015 breaker?
This bolt-on molded case circuit breaker is designed specifically for Eaton and Cutler-Hammer Series C panelboards and switchboards that accommodate F-frame breakers.
Are the trip settings on the HFD2015 adjustable?
No. This specific model features a fixed thermal and fixed magnetic trip unit. Both the long-time and instantaneous trip functions are factory set for 15 amps and cannot be modified in the field.
Is the HFD2015 rated for direct current (DC) systems?
Yes, this breaker is rated for use in DC applications up to 250VDC, where it provides a 22kA interrupting capacity.

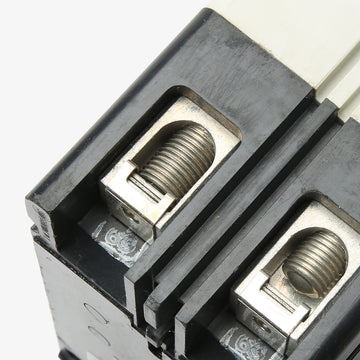

Does this breaker come with terminal lugs?
Yes, the breaker includes standard line and load lugs. The terminals accept 14 AWG through 1/0 AWG copper or aluminum conductors.
