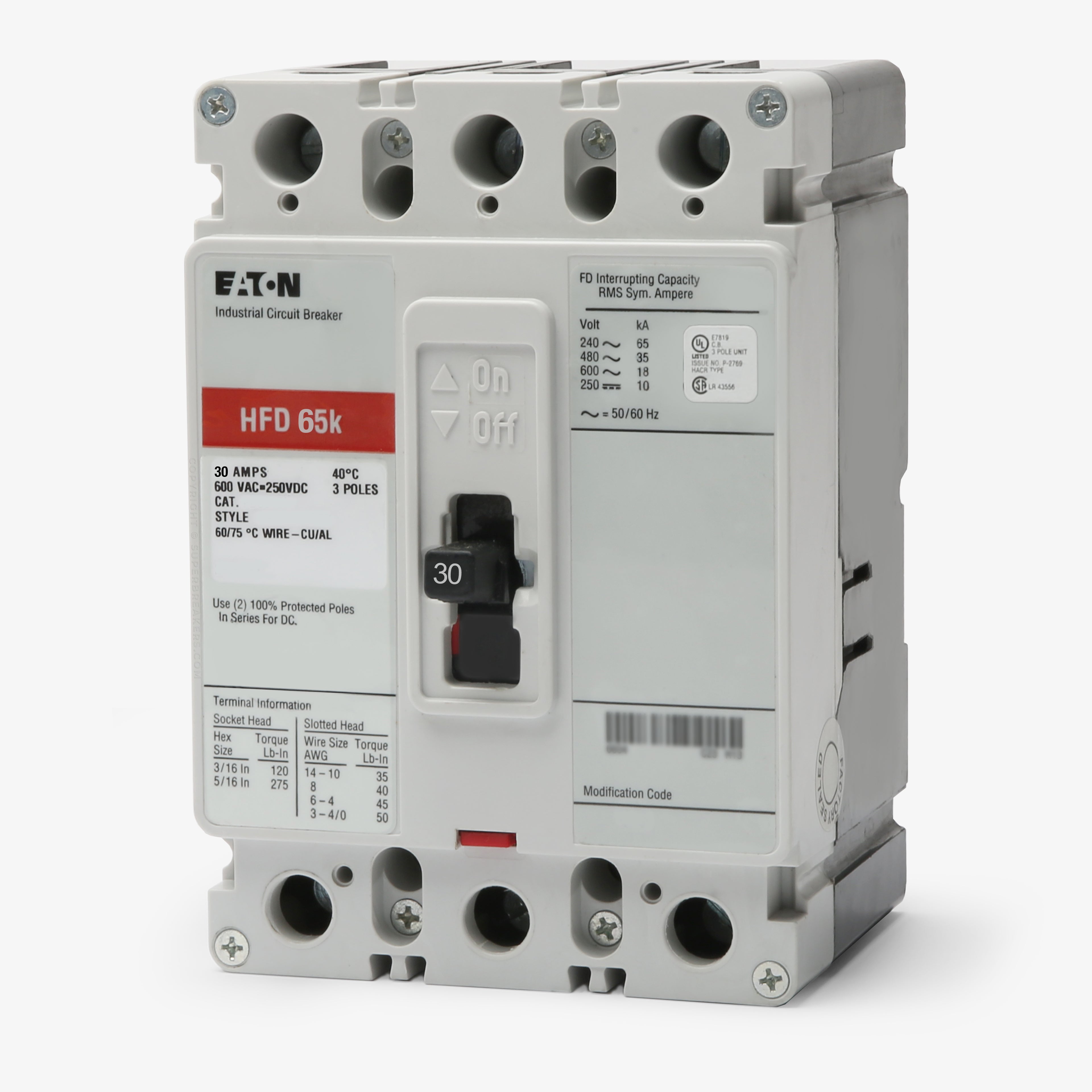

Eaton / Cutler-Hammer HFD3030L Molded Case Circuit Breaker
- 30A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HFD3030L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3030L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3030L - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3030L - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3030L |
| Series | HFD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Quantity
Eaton / Cutler-Hammer HFD3030L - 30A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
15A 3 Pole Molded Case Circuit Breaker
Description
Designed for standalone and enclosure applications, this 30-amp three-pole MCCB comes equipped with line and load lugs for immediate unit mounting. It integrates perfectly with Eaton Series C motor control centers and industrial switchgear. Delivering a high interrupting capacity of 65kA at 480VAC, the breaker ensures reliable performance under severe fault conditions. Facilities upgrading their infrastructure can transition to the modern PDG23M0030TFFJ replacement model.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, HID Rated |
Product FAQs
6 answersWhat does the L suffix mean in the HFD3030L catalog number?
The L suffix indicates that the circuit breaker is factory-supplied with standard line and load lugs.
Is the Eaton HFD3030L suitable for reverse feed applications?
Yes, standard thermal-magnetic Series C F-frame circuit breakers are suitable for reverse feed installations.
What is the difference between Eaton FD, HFD, and FDC circuit breakers?
The prefix indicates the interrupting capacity of the F-frame breaker. The HFD frame is the high-interrupting version, while the FD is standard capacity and the FDC is extra-high capacity.
What wire material is compatible with the standard lugs on the HFD3030L?
The factory-installed line and load lugs are rated for both copper and aluminum (Cu/Al) conductors ranging from 14 to 1/0 AWG.
Is the HFD3030L HACR rated for HVAC applications?
Yes, all Eaton Series C F-frame circuit breakers are HACR rated for use with heating, air conditioning, and refrigeration equipment.
Can the HFD3030L be used for high intensity discharge (HID) lighting circuits?
Yes, Eaton Series C F-frame thermal-magnetic breakers rated between 10A and 50A are suitable for switching HID lighting loads.
