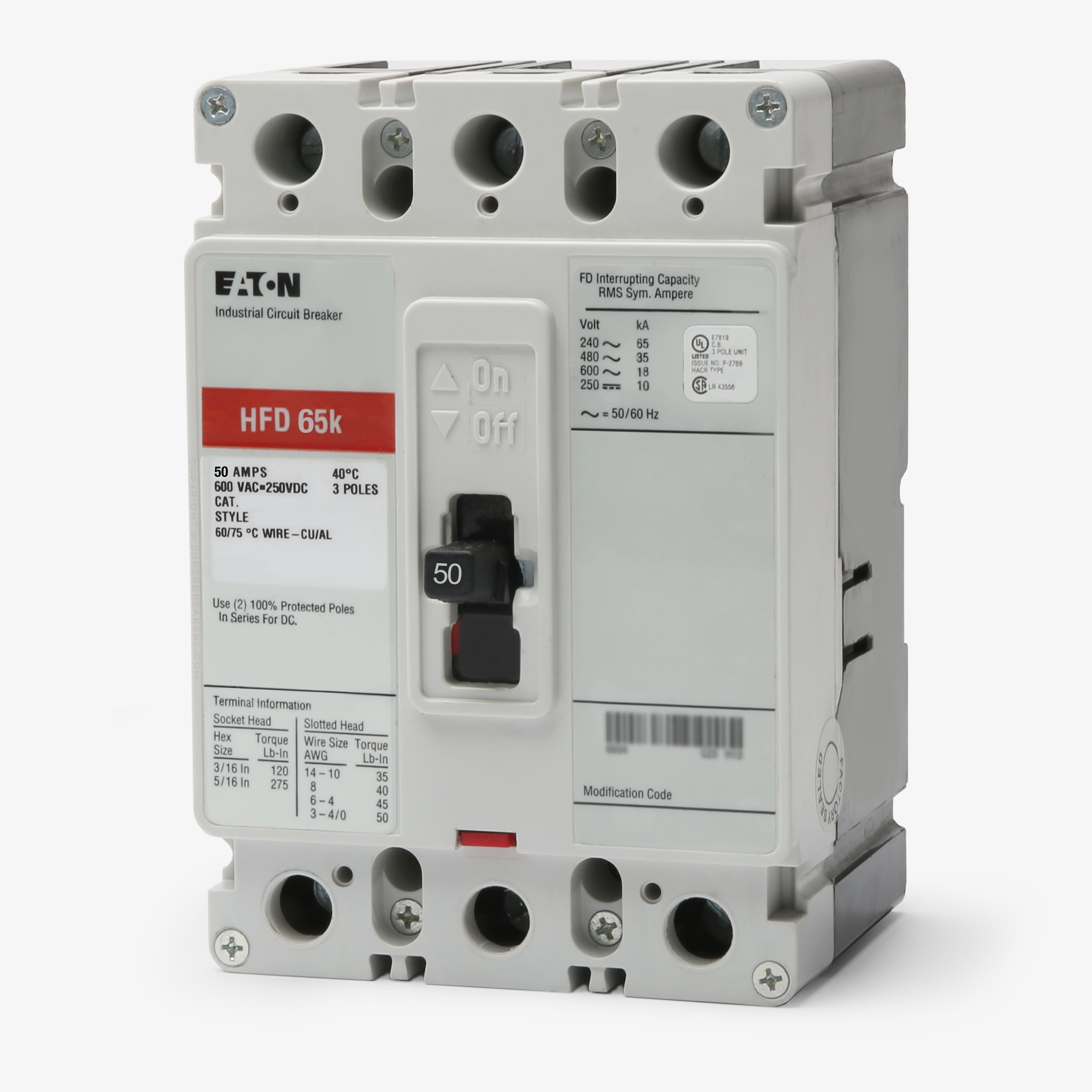

Eaton / Cutler-Hammer HFD3050L Molded Case Circuit Breaker
- 50A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HFD3050L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3050L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3050L - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3050L - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3050L |
| Series | HFD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, F-Frame Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer HFD3050L - 50A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, F-Frame Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
40A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial environments, the Eaton HFD3050L is a 3-pole, 50A molded case circuit breaker from the Series C family. It provides reliable long-time and instantaneous trip functions. This unit-mount breaker installs into Eaton panelboards, switchboards, and motor control centers. It includes line and load lugs and is replaced by the Power Defense PDG23M0050TFFJ. Rated 65 kAIC at 480VAC, the F-Frame device features a current-limiting design. It is HACR and HID rated for versatile use.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, F-Frame Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
8 answersWhat is the difference between the HFD3050 and HFD3050L?
The "L" suffix indicates the breaker includes both line and load lugs installed from the factory. The standard HFD3050 typically comes with load side terminals only.
What does the "H" in the HFD3050L part number signify?
The "H" designates this as a high interrupting capacity breaker. It is rated for 65 kAIC at 480VAC, whereas the standard FD frame is rated for 35 kAIC at 480VAC.
Can the HFD3050L be reverse fed?
Yes. Eaton Series C F-Frame thermal magnetic circuit breakers are suitable for reverse feed applications.
What wire material is supported by the factory lugs on the HFD3050L?
The included line and load lugs accept 14 to 1/0 AWG copper or aluminum (Cu/Al) conductors.
Is this breaker suitable for high intensity discharge (HID) lighting circuits?
Yes. All Eaton F-Frame circuit breakers rated 10 to 50 amps are HID rated.
Is the HFD3050L suitable for HVAC applications?
Yes. All Eaton F-Frame circuit breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment.
What is the modern replacement for the HFD3050L?
The Eaton Power Defense PDG23M0050TFFJ is the direct replacement for this legacy Series C breaker.
What safety precautions are required before inspecting or servicing this breaker?
Ensure the breaker is switched to the OFF position and verify no voltage is present. Pay special attention to reverse feed applications where the load side may remain energized.
