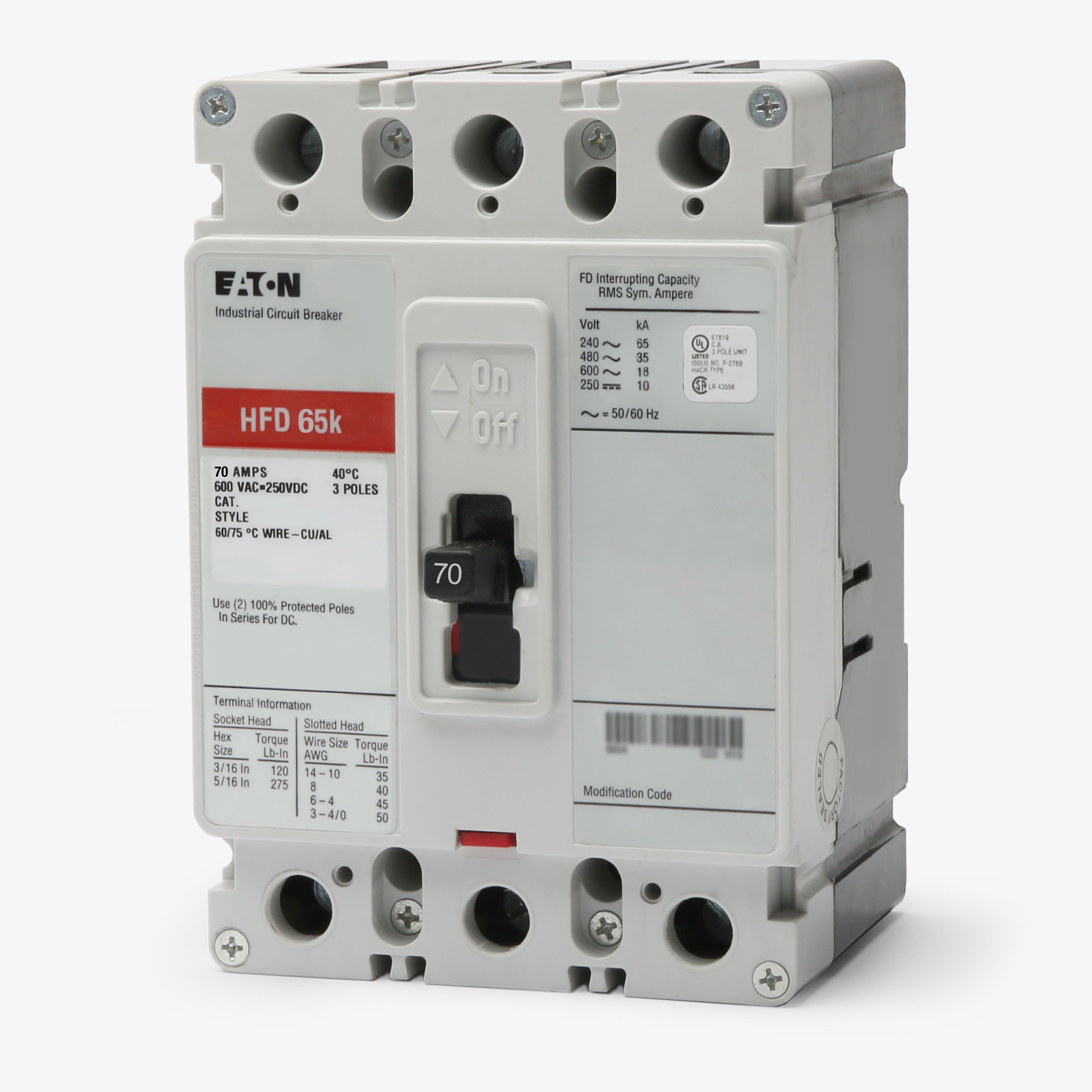

Eaton / Cutler-Hammer HFD3070L Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
HFD3070L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3070L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3070L - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer HFD3070L - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3070L |
| Series | HFD |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer HFD3070L - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Similar Items
60A 3 Pole Molded Case Circuit Breaker
90A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
Description
Part of the reliable Series C family, this 70A F-Frame molded case circuit breaker handles demanding commercial and industrial applications. The unit-mount configuration installs into Eaton panelboards, switchboards, and motor control centers. Featuring a high interrupting capacity of 65kAIC at 480VAC, it utilizes fixed thermal and magnetic trip units for precise long-time and instantaneous protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | HACR, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
7 answersWhat panelboards and enclosures accept the HFD3070L?
This F-frame breaker is designed to mount in Eaton Series C panelboards, switchboards, motor control centers, and compatible F-frame enclosures.
What does the L suffix in the HFD3070L catalog number mean?
The L suffix indicates that the circuit breaker comes equipped with factory-installed line and load lugs.
Can the HFD3070L be reverse fed?
Yes, this thermal-magnetic breaker is suitable for reverse feed applications.
Are the trip settings on the HFD3070L adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
Is the HFD3070L suitable for DC applications?
Yes, this breaker is rated for direct current systems up to 250VDC with an interrupting capacity of 22kAIC.
Does the HFD3070L include ground fault or arc fault protection?
No, this is a standard thermal-magnetic circuit breaker that provides long-time and instantaneous trip functions. It does not contain GFCI or AFCI protection.
Can this breaker replace legacy Westinghouse or Cutler-Hammer HFD3070L units?
Yes. Eaton acquired the Westinghouse and Cutler-Hammer distribution equipment lines, so the Eaton HFD3070L is the exact replacement for older breakers sharing the same catalog number.
