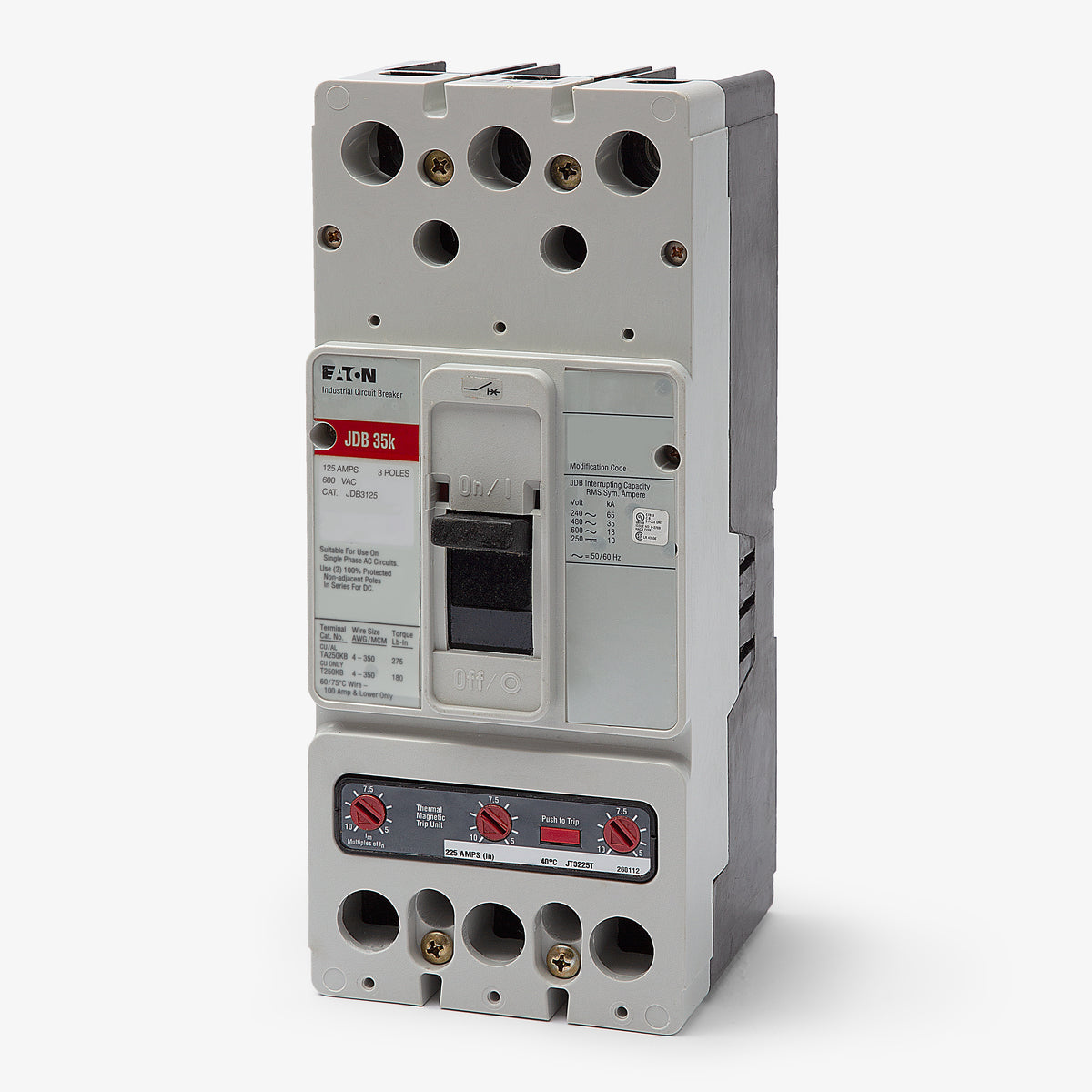

Eaton / Cutler-Hammer JDB3125 Molded Case Circuit Breaker
- 125A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
JDB3125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
JDB3125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer JDB3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer JDB3125 - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JDB3125 |
| Series | JDB |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JD |
|---|---|

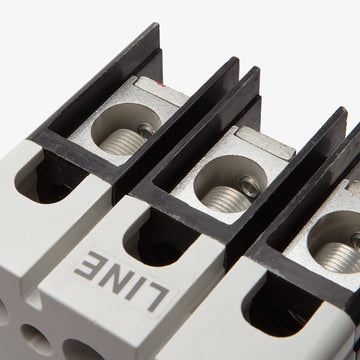

| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |

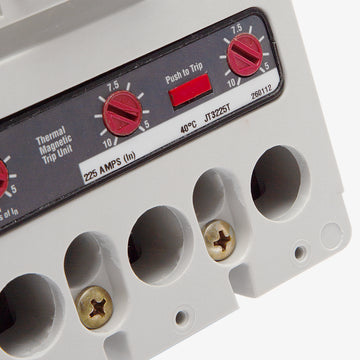

| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Quantity
Eaton / Cutler-Hammer JDB3125 - 125A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | JDB |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Similar Items
175A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
225A 3 Pole Molded Case Circuit Breaker
Description
Designed for heavy-duty commercial use, the Eaton JDB3125 is a 3-pole, 125A molded case circuit breaker. As part of the Series C J-Frame lineup, it mounts into compatible Eaton panelboards, enclosures, and switchboards. This unit features a factory-sealed, non-interchangeable thermal-magnetic trip unit for precise long-time and instantaneous (LI) protection. It delivers a robust 35kAIC interrupting rating at 480VAC and is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | JDB3125 |
| Series | JDB |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | JD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 4 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included (TA250KB) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
6 answersCan the Eaton JDB3125 be reverse fed?
Yes. The JDB3125 features a factory-sealed, non-interchangeable trip unit, making it suitable for reverse feed applications under UL 489.
What is the difference between Eaton JDB, JD, HJD, and JDC circuit breakers?
These are all Series C J-Frame breakers with identical physical dimensions but different interrupting ratings and trip unit designs. The JDB features a factory-sealed, non-interchangeable trip unit, whereas JD, HJD, and JDC models utilize interchangeable trip units with standard, high, and extra-high interrupting capacities.
What equipment is compatible with the JDB3125 breaker?
This J-Frame breaker is designed for installation in Eaton Series C panelboards, switchboards, motor control centers, and standalone enclosures.
Are the trip settings on the JDB3125 field-adjustable?
No. This breaker is equipped with a fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection without adjustable dials.
Is the JDB3125 suitable for direct current (DC) systems?
Yes. In addition to its AC ratings, this thermal-magnetic breaker is rated for up to 250VDC with a 10kA interrupting capacity, allowing it to be used in compatible DC distribution systems.
Can this breaker be used for heating, air conditioning, and refrigeration equipment?
Yes. Eaton J-Frame circuit breakers, including the JDB3125, are HACR rated for use with commercial HVAC and refrigeration equipment.
