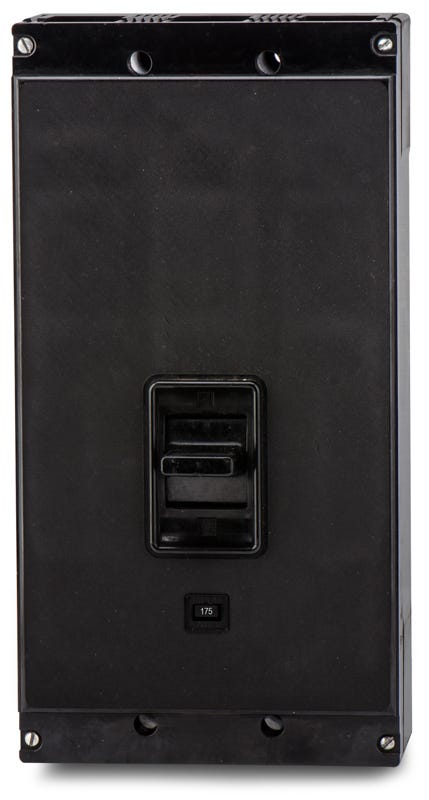

Eaton / Cutler-Hammer K3175 Molded Case Circuit Breaker
- 175A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
K3175
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
K3175
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer K3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer K3175 - 175A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3175 |
| Series | K |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Quantity
Eaton / Cutler-Hammer K3175 - 175A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3175-R |
| Series | K |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Similar Items
200A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Providing 175A of power distribution, the Eaton K3175 is a 3-pole molded case circuit breaker from the Series C line. This K-Frame unit operates at up to 600VAC, utilizing a fixed thermal and adjustable magnetic trip mechanism for LI protection. Designed for bolt-on installation, it integrates into Eaton Series C panelboards, Westinghouse enclosures, and motor control centers. It provides a direct replacement path for legacy KD3175 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3175-R |
| Series | K |
| Amperage | 175A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | HACR, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Product FAQs
5 answersIs the Eaton K3175 interchangeable with the Westinghouse K3175?
Yes. Eaton acquired the Westinghouse distribution equipment division. A K3175 breaker labeled under Eaton, Cutler-Hammer, or Westinghouse shares the exact same physical dimensions, Series C K-frame footprint, and bolt-on mounting configuration.
What type of panelboards are compatible with the K3175?
This bolt-on breaker is designed for installation in Eaton Series C panelboards, legacy Westinghouse panelboards, motor control centers, and compatible switchboards that accept K-frame breakers.
How do I adjust the instantaneous trip setting on this breaker?
The K3175 features a fixed thermal and adjustable magnetic trip unit. The magnetic (instantaneous) pickup can be adjusted using the dial located on the front face of the breaker to coordinate with downstream loads and prevent nuisance tripping.
Does the K3175 provide ground fault protection?
No. This breaker is equipped with an LI (Long-Time, Instantaneous) thermal-magnetic trip unit. It provides protection against overloads and short circuits but does not include integral ground fault equipment protection.
Are the standard lugs on the K3175 rated for aluminum conductors?
Yes, the factory-installed lugs are dual-rated for both aluminum and copper wire. They accept conductor sizes ranging from 3 AWG up to 350 kcmil, making them versatile for various field wiring applications.
