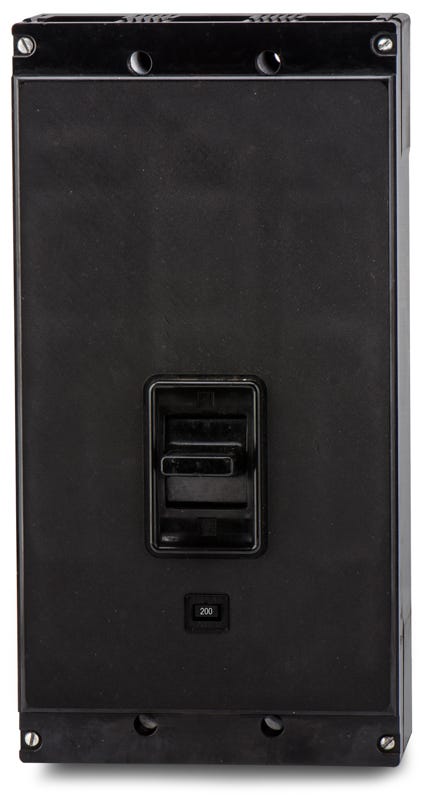

Eaton / Cutler-Hammer K3200 Molded Case Circuit Breaker
- 200A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
K3200
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
K3200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer K3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer K3200 - 200A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3200 |
| Series | K |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Quantity
Eaton / Cutler-Hammer K3200 - 200A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3200-R |
| Series | K |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Similar Items
225A 3 Pole Molded Case Circuit Breaker
175A 3 Pole Molded Case Circuit Breaker
150A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton K3200 provides robust overcurrent protection within a K-Frame footprint. This 200A, 3-pole breaker operates at up to 600VAC, utilizing a fixed thermal and adjustable magnetic trip unit. It installs into Eaton Series C panelboards, legacy Westinghouse enclosures, and motor control centers. It is frequently replaced by the KD3200 model but remains essential for maintaining existing systems. Rated at 25 kAIC at 240VAC, this bolt-on MCCB is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | K3200-R |
| Series | K |
| Amperage | 200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Westinghouse Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 3 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs Not Included |
| Standards | CSA C22.2 No. 5.1, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Interchangeable Trip Unit, Reverse Feed |
Product FAQs
7 answersWhat panels and enclosures are compatible with the K3200 circuit breaker?
The K3200 is designed for use in Eaton Series C panelboards, legacy Westinghouse panelboards, motor control centers (MCCs), and switchboards that accept K-frame breakers.
What does the adjustable magnetic trip on the K3200 allow me to do?
The adjustable magnetic trip function lets you customize the instantaneous short-circuit response threshold. This is useful for coordinating with downstream breakers or preventing nuisance tripping from motor inrush currents, while the thermal trip remains fixed for standard overload protection.
Can the Eaton K3200 replace older Westinghouse K-frame breakers?
Yes. Because Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines, the Eaton K3200 is a direct replacement for legacy Westinghouse K3200 breakers used in existing panels and motor control centers.
Are there higher interrupting capacity versions of this 200A K-frame breaker?
Yes. While the K3200 provides 22kAIC at 480VAC, the KD3200 offers 35kAIC, the HKD3200 provides 65kAIC, and the KDC3200 provides 100kAIC at 480VAC.
Is the K3200 HACR rated?
Yes, like most modern Eaton Series C molded case circuit breakers, the K3200 is HACR rated, making it suitable for group motor applications in heating, air conditioning, and refrigeration equipment.
Can the K3200 be reverse fed?
Yes, standard thermal-magnetic Eaton Series C K-frame breakers like the K3200 are reverse feed capable, allowing them to be wired with the line connections at the bottom and load connections at the top if required by the panel layout.
Does the K3200 feature an interchangeable trip unit?
Yes, Eaton K-frame Series C breakers feature interchangeable trip units. This allows the thermal-magnetic trip unit to be swapped or upgraded without replacing the entire breaker frame.
