Eaton / Cutler-Hammer QBGFEP1040 GFEP Miniature Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGFEP1040
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFEP1040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

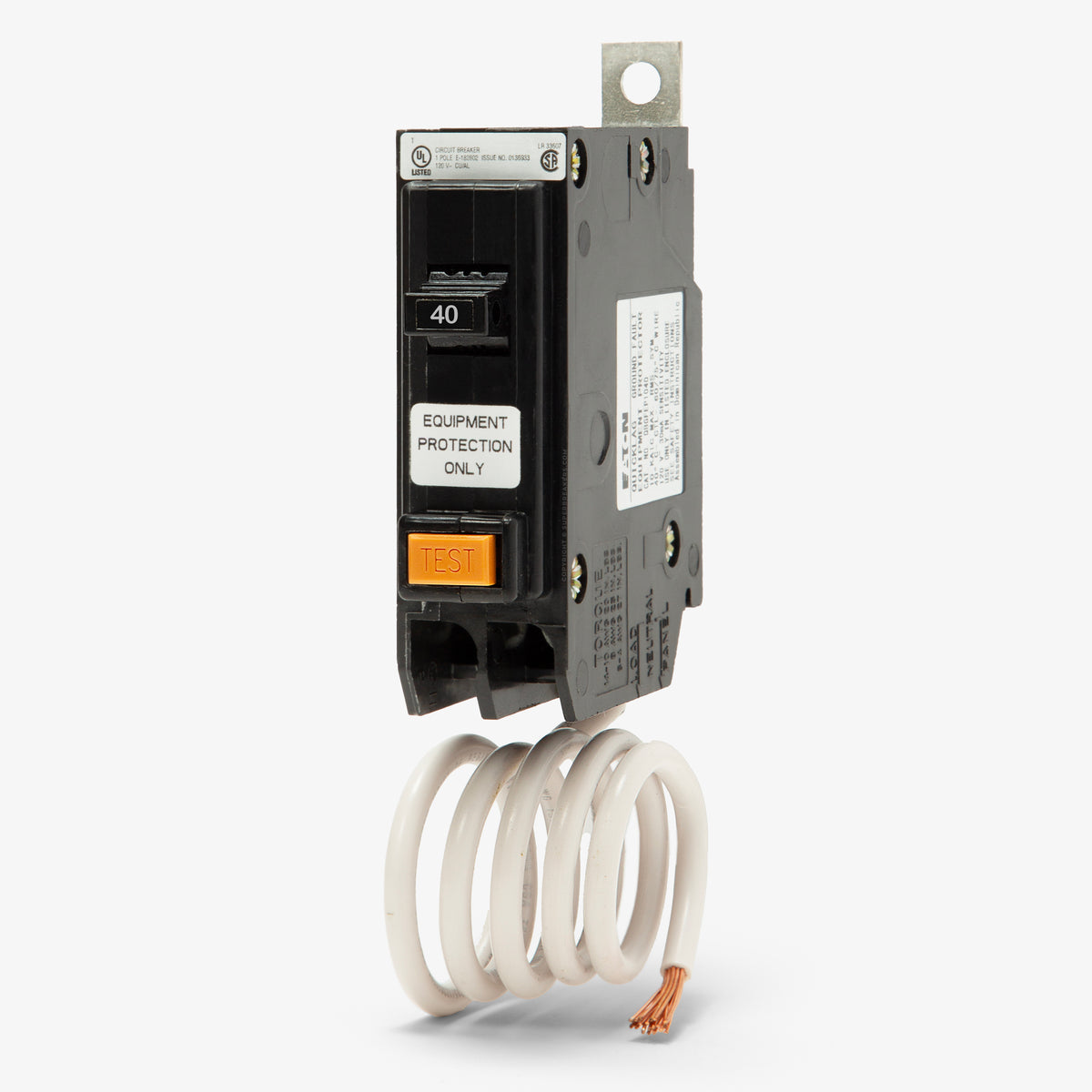

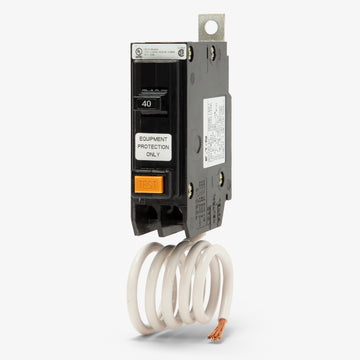

Eaton / Cutler-Hammer QBGFEP1040 - 40A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFEP1020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1020W1
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1015
15A GFEP Miniature Circuit Breaker
Description

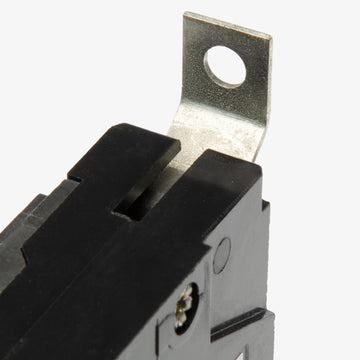

Rated 10 kAIC at 120VAC, the Eaton QBGFEP1040 is a 1-pole, 40A equipment protection breaker. It provides a 30mA ground fault threshold to prevent damage to industrial machinery and heat trace systems without nuisance tripping. Engineered for secure connections, this bolt-on unit installs into Eaton Pow-R-Line panelboards. The breaker features box lug terminals accommodating 14-4 AWG wire. This Quicklag family breaker utilizes fixed thermal-magnetic trip technology and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | QBGFEP |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch, Bell Alarm |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the Eaton QBGFEP1040?
This breaker installs into Eaton Pow-R-Line panelboards that accept BAB frame bolt-on circuit breakers.
What is the ground fault trip sensitivity for the QBGFEP1040?
This Ground Fault Equipment Protection (GFEP) breaker features a 30mA trip sensitivity. It is designed to protect equipment like heat trace cables and industrial machinery from line-to-ground faults without nuisance tripping.
Can I use the QBGFEP1040 for personnel safety applications?
No. This is a GFEP breaker with a 30mA trip threshold intended strictly for equipment protection. Personnel safety applications require a Class A GFCI breaker with a 5mA trip threshold.
How is the neutral connection wired on this GFEP breaker?

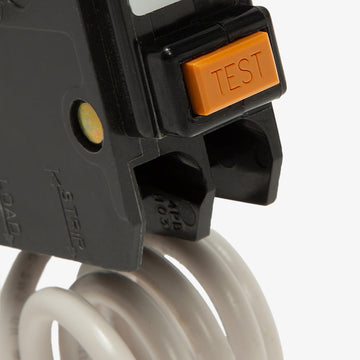

The QBGFEP1040 includes a pigtail neutral wire that must be routed and connected directly to the panelboard neutral bar to power the internal ground fault sensing circuitry.
Does this 1-pole breaker require a load neutral connection?
Yes. To properly monitor for ground faults, the neutral wire from the protected load must be terminated at the breaker load neutral lug, while the breaker pigtail connects to the panel neutral.
Is the QBGFEP1040 a direct replacement for older Cutler-Hammer breakers?
Yes, Eaton and Cutler-Hammer are the same brand. The QBGFEP1040 replaces older Cutler-Hammer breakers that share the exact same catalog number.
