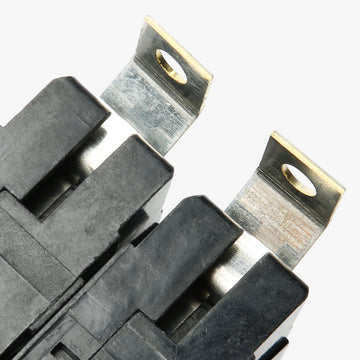

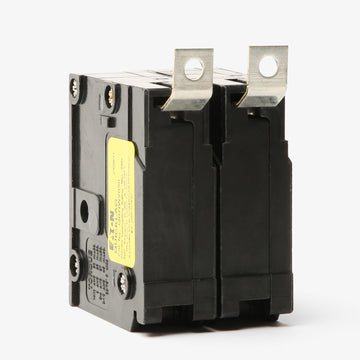

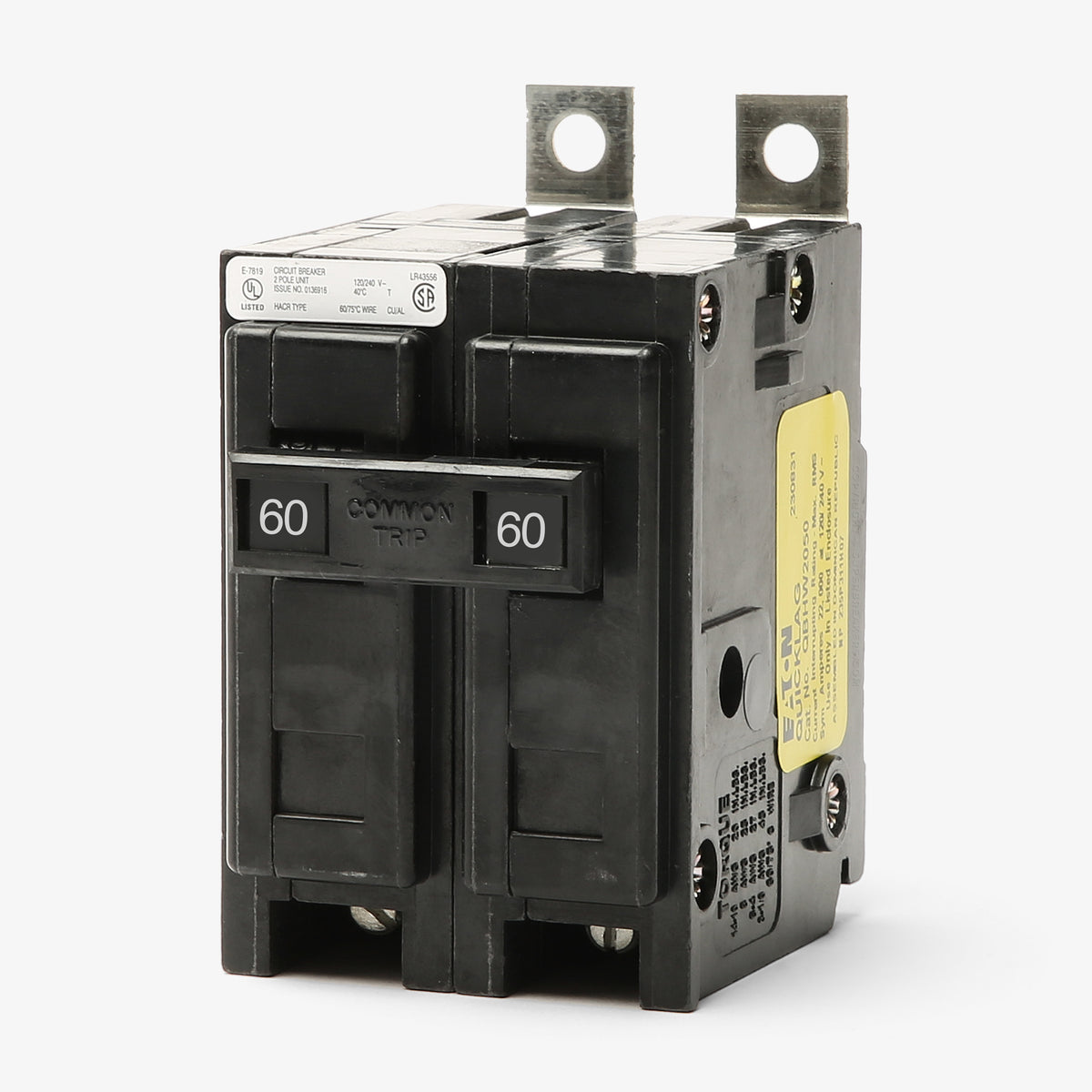

Eaton / Cutler-Hammer QBHW2060 Miniature Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW2060
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW2060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW2060 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QBHW2060 - 60A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2060 |
| Series | QBHW |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW2060 - 60A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2060-R |
| Series | QBHW |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
70A 2 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW2070S
70A 2 Pole Miniature Circuit Breaker
50A 2 Pole Miniature Circuit Breaker
Description
Built to handle higher current loads, this 60A two-pole breaker delivers 22kAIC fault protection for commercial and industrial distribution systems. The device fastens securely into Eaton Pow-R-Line 1a and 2a panelboards, utilizing a bolt-on mounting style that prevents loose connections. Equipped with fixed thermal and magnetic trip elements, it provides dependable overcurrent defense and is fully HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2060 |
| Series | QBHW |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QBHW2060 circuit breaker?
This bolt-on breaker is designed for use in Eaton Pow-R-Line 1a and Pow-R-Line 2a commercial panelboards. It is not compatible with standard residential plug-on load centers.
What is the difference between the BAB2060 and the QBHW2060?
Both are 60A, 2-pole Quicklag bolt-on breakers with identical physical dimensions. The difference is the interrupting rating. The BAB2060 is rated for 10kAIC, while the QBHW2060 offers a higher 22kAIC rating for systems with higher available fault current.

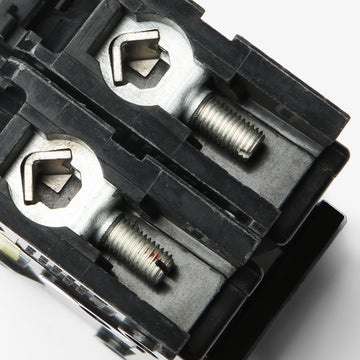

What wire sizes are accepted by the terminals on the QBHW2060?
The box lugs on this breaker accept 8 AWG to 1/0 AWG copper or aluminum conductors. Ensure proper torque is applied during installation as specified by the manufacturer.
What does the 22kAIC rating mean for this breaker?
The 22kAIC interrupting rating indicates that the breaker can safely interrupt up to 22,000 amps of fault current at 240V without sustaining damage. This makes it suitable for commercial and industrial applications where the available fault current exceeds standard 10kAIC limits.
Can I use the QBHW2060 to replace an older Westinghouse bolt-on breaker?
Yes. Eaton acquired the Westinghouse distribution equipment line, and the current Quicklag QBHW series is a direct, backward-compatible replacement for older Westinghouse bolt-on breakers of the same frame size and specifications.
Is the QBHW2060 HACR rated?
Yes, all Eaton Quicklag bolt-on breakers from 15A to 100A, including the QBHW2060, are HACR rated for use with heating, air conditioning, and refrigeration equipment.
