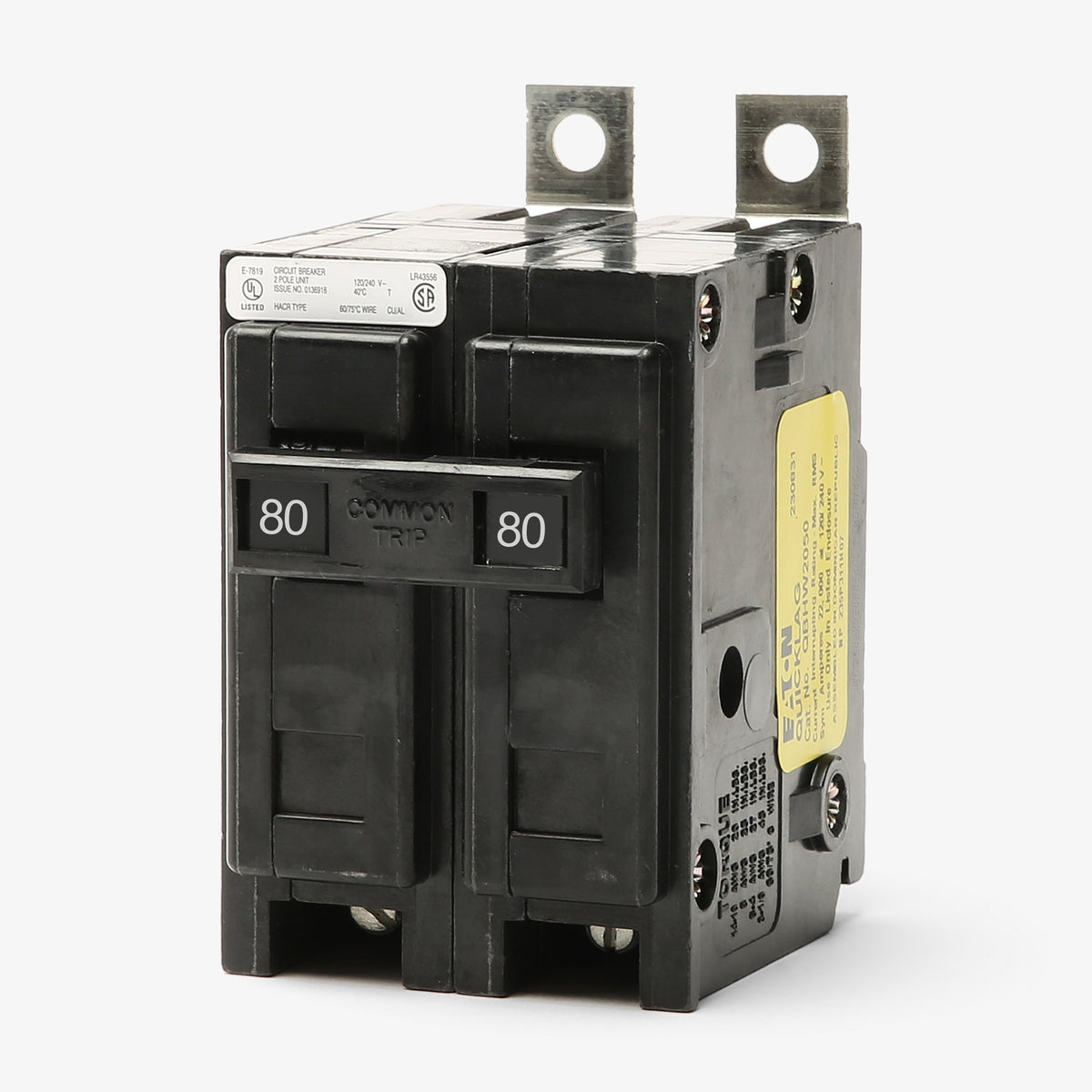

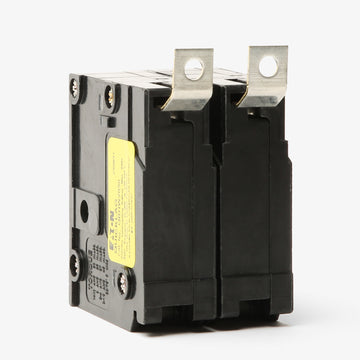

Eaton / Cutler-Hammer QBHW2080 Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHW2080
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHW2080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHW2080 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer QBHW2080 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2080 |
| Series | QBHW |
| Amperage | 80A |
| Poles | 2 |

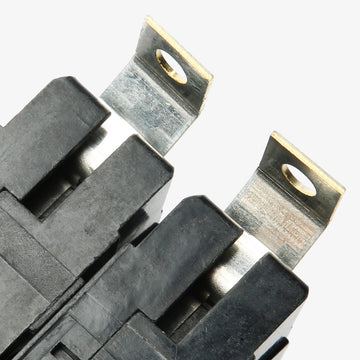

| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer QBHW2080 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2080-R |
| Series | QBHW |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Similar Items
70A 2 Pole Miniature Circuit Breaker
Eaton / Cutler-HammerQBHW2070S
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton QBHW2080 is a 2-pole miniature circuit breaker from the Quicklag family. It provides reliable 80A overcurrent protection for demanding electrical distribution systems. This unit installs into Eaton and Cutler-Hammer Pow-R-Line panelboards. The bolt-on mounting style ensures a secure, vibration-resistant connection to the busbar, making it ideal for high-traffic facility environments.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHW2080 |
| Series | QBHW |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 8-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat panelboards are compatible with the QBHW2080?
This bolt-on breaker is designed for Eaton Pow-R-Line commercial and industrial panelboards, including the PRL1a and PRL2a series. It is not compatible with standard residential plug-on load centers.
What is the difference between the BAB2080 and the QBHW2080?
Both are 80-amp, 2-pole, bolt-on breakers in the Eaton Quicklag family. The difference is their short-circuit interrupting rating. The BAB2080 is rated for 10kAIC, while the QBHW2080 provides a higher 22kAIC rating.
Can the QBHW2080 be used on a 277/480V system?
No. The QBHW2080 is rated for a maximum of 120/240VAC. It cannot be used in 277V or 480V applications. For those higher voltage systems, a different breaker series like the GHB is required.
What wire sizes and materials are accepted by the QBHW2080 terminals?

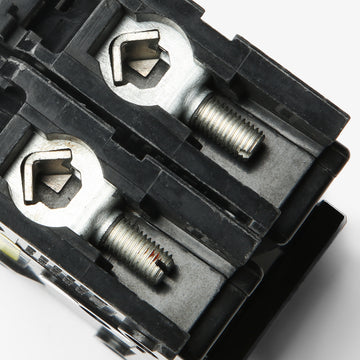

The box lugs on this breaker accept 8 AWG to 1/0 AWG wire. You can use either copper (Cu) or aluminum (Al) conductors.
What does the LI trip function indicate on this breaker?
The LI designation means the breaker features Long-Time and Instantaneous trip functions. The thermal long-time element protects against sustained overloads, while the magnetic instantaneous element trips immediately during a short circuit.
Can I replace an older Westinghouse QBHW2080 with this Eaton model?
Yes. Eaton acquired the Westinghouse distribution equipment line. An Eaton or Cutler-Hammer QBHW2080 is the direct replacement for an older Westinghouse breaker with the exact same catalog number.
