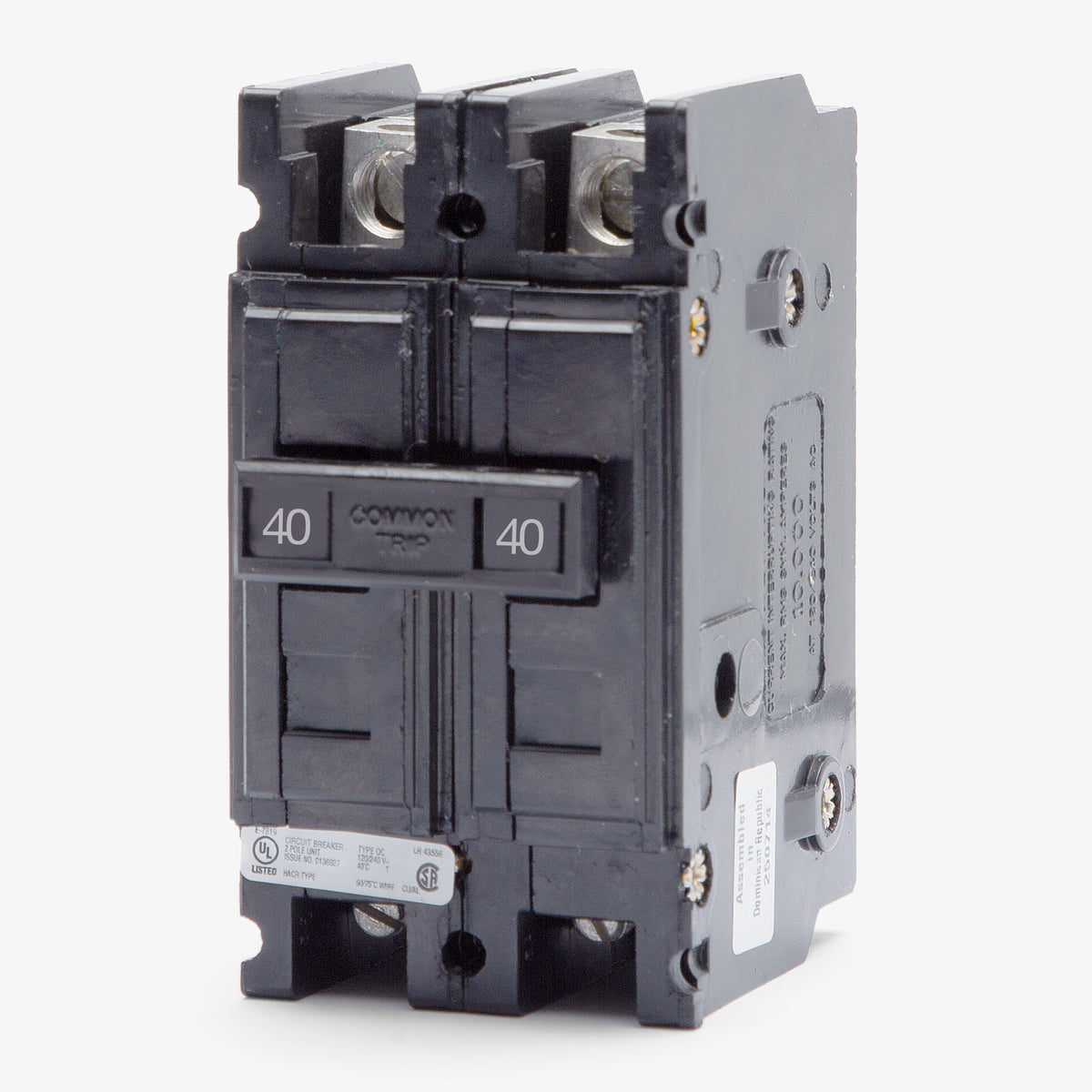

Eaton / Cutler-Hammer QC2040 Miniature Circuit Breaker
- 40A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC2040
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC2040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC2040 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC2040 - 40A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2040 |
| Series | QC |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out design |
Sold out
Quantity
Eaton / Cutler-Hammer QC2040 - 40A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2040-R |
| Series | QC |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out design |
Similar Items
30A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Serving as a reliable replacement for the legacy QCL2040, the QC2040 is a 40A, two-pole miniature circuit breaker from Eaton's Quicklag family. It is engineered for commercial and industrial applications, providing essential overcurrent and short-circuit protection for equipment enclosures and control panels. This panel-mount breaker features a convenient cable-in/cable-out design and accepts 14-4 AWG wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2040 |
| Series | QC |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out design |
Product FAQs
5 answersHow is a feed-thru breaker like the QC2040 installed in an enclosure?

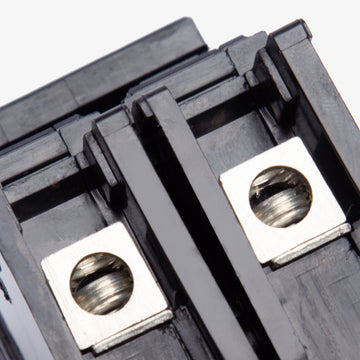

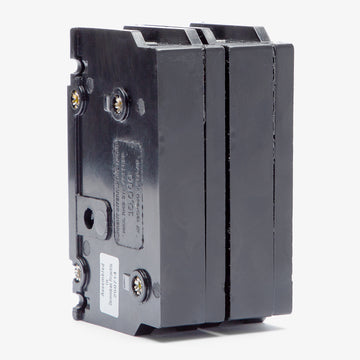

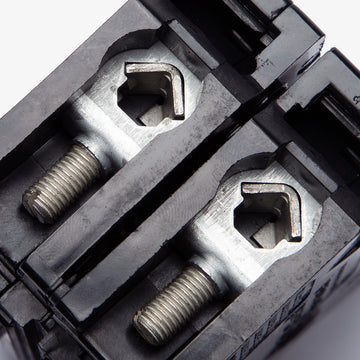

Unlike plug-on or bolt-on breakers that connect to a panelboard bus, feed-thru breakers have box lugs on both the line and load sides. They are individually surface-mounted to a panel backplate or DIN rail, making them ideal for standalone control panels or custom enclosures.
Which DIN rail adapter is compatible with the QC2040?
You can mount this breaker to a standard 35mm DIN rail using the Eaton QCDINADAPT adapter kit. Eaton recommends ordering one adapter kit per breaker pole.
What are the higher interrupting capacity alternatives to the QC2040?
The standard QC series provides a 10kAIC rating at 120/240VAC. If your system requires a higher short-circuit rating, look for the QCH series for 22kAIC or the QHC series for 65kAIC protection.
Does the QC2040 provide ground fault or arc fault protection?
No, the QC2040 is a standard thermal-magnetic breaker providing only long-time overload and instantaneous short-circuit protection. It does not include GFCI or AFCI circuitry.
Is the QC2040 HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires this specific designation for overcurrent protection.
