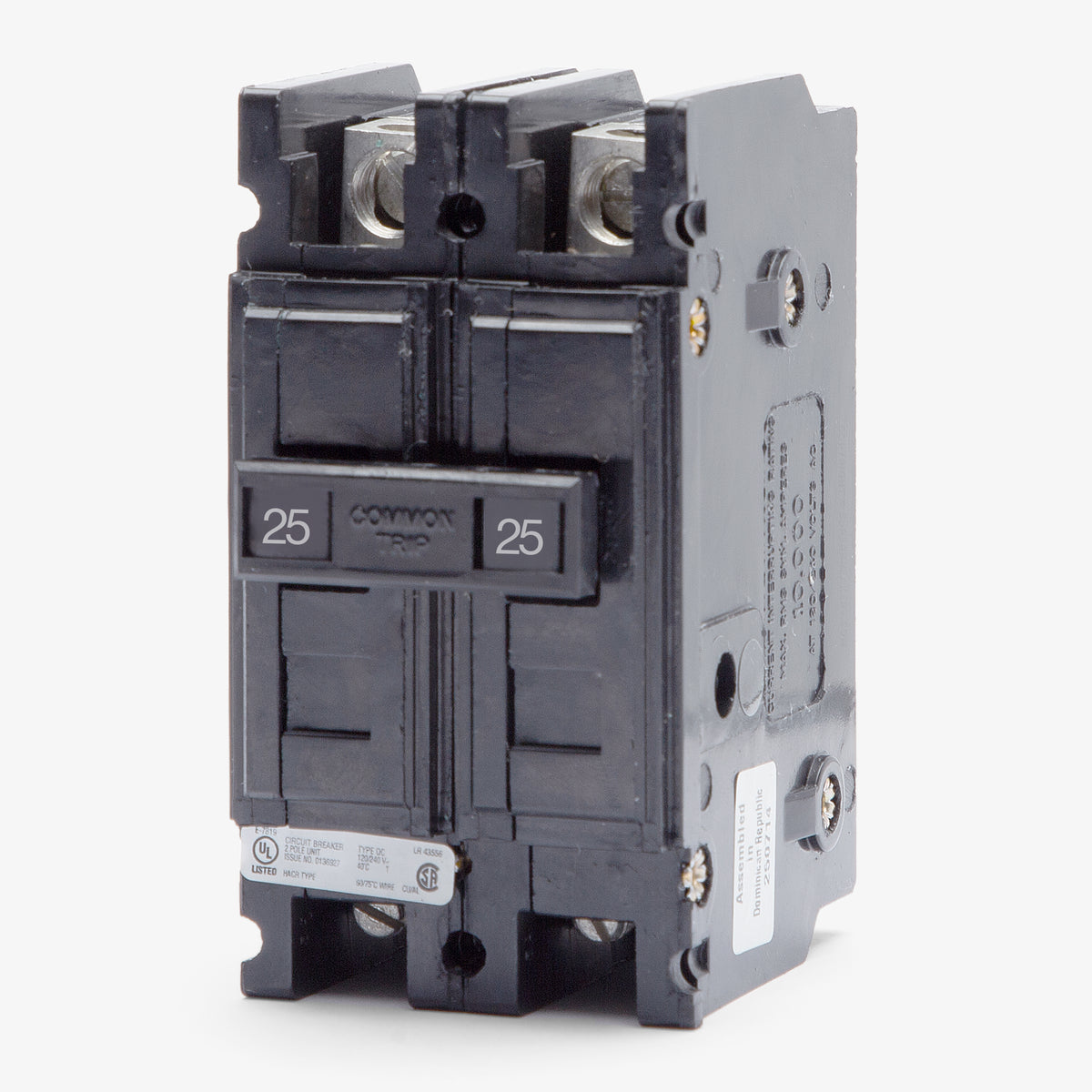

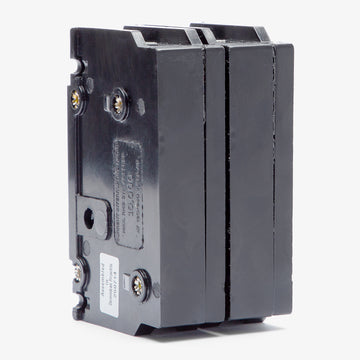

Eaton / Cutler-Hammer QC2025 Miniature Circuit Breaker
- 25A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC2025
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC2025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC2025 - 25A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 2 Pole Miniature Circuit Breaker
15A 2 Pole Miniature Circuit Breaker
40A 2 Pole Miniature Circuit Breaker
Description
Built for commercial and industrial environments, the Eaton QC2025 is a 25-amp, two-pole miniature circuit breaker. It delivers robust thermal-magnetic overcurrent protection for various electrical systems. Designed with a cable-in/cable-out configuration, this breaker mounts into Eaton Quicklag panelboards and standard control enclosures. It can also be adapted for DIN rail mounting. Featuring a 10 kAIC interrupt rating at 120/240 VAC, the HACR-rated unit includes fixed trip settings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2025 |
| Series | QC |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 48VDC, 62.5VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Frame Type | QC |
|---|---|

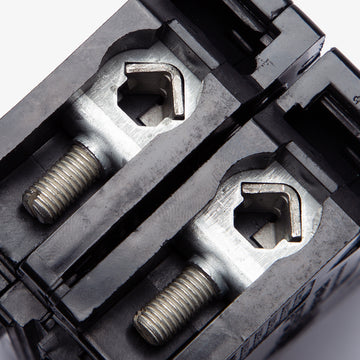

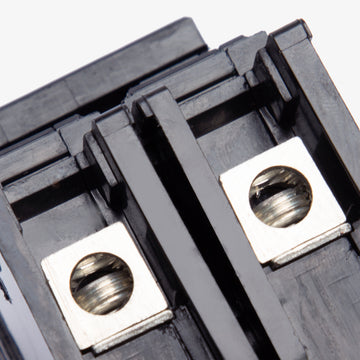

| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat type of panels accept the QC2025 circuit breaker?
The QC2025 is a cable-in/cable-out breaker designed for Eaton Quicklag panelboards, control panels, and custom enclosures. Because it is a feed-thru breaker, it does not plug or bolt directly onto a standard load center busbar.
What does the QC frame designation mean?
The QC frame designates this as a Quicklag cable-in/cable-out miniature circuit breaker. Unlike plug-on or bolt-on variants, QC breakers use box lugs on both the line and load sides for feed-thru wiring.
How do you mount the QC2025 in a control panel?
The QC2025 can be panel-mounted using a Quicklag mounting base plate, such as the 2-pole QC2FP. It can also be mounted to a standard 35mm DIN rail using the appropriate Eaton Quicklag DIN rail adapter.
What type of wire can be used with the QC2025 terminals?
The box lugs on the QC2025 accept 14 to 10 AWG aluminum or copper wire. Ensure proper torque specifications are followed during installation for secure cable-in/cable-out connections.
Is the QC2025 rated for direct current (DC) applications?
Yes, the QC2025 carries DC interrupting ratings of 5kAIC at 48VDC and 3.8kAIC at 62.5VDC, making it suitable for specific control circuits and DC power distribution.
What type of trip unit does the QC2025 use?
It features a fixed thermal-magnetic trip unit that provides long-time overload protection and instantaneous short-circuit protection.
Are Eaton and Cutler-Hammer QC2025 breakers interchangeable?
Yes, Eaton acquired Cutler-Hammer, and the QC2025 is the exact same Quicklag cable-in/cable-out breaker regardless of which brand name is printed on the label.
