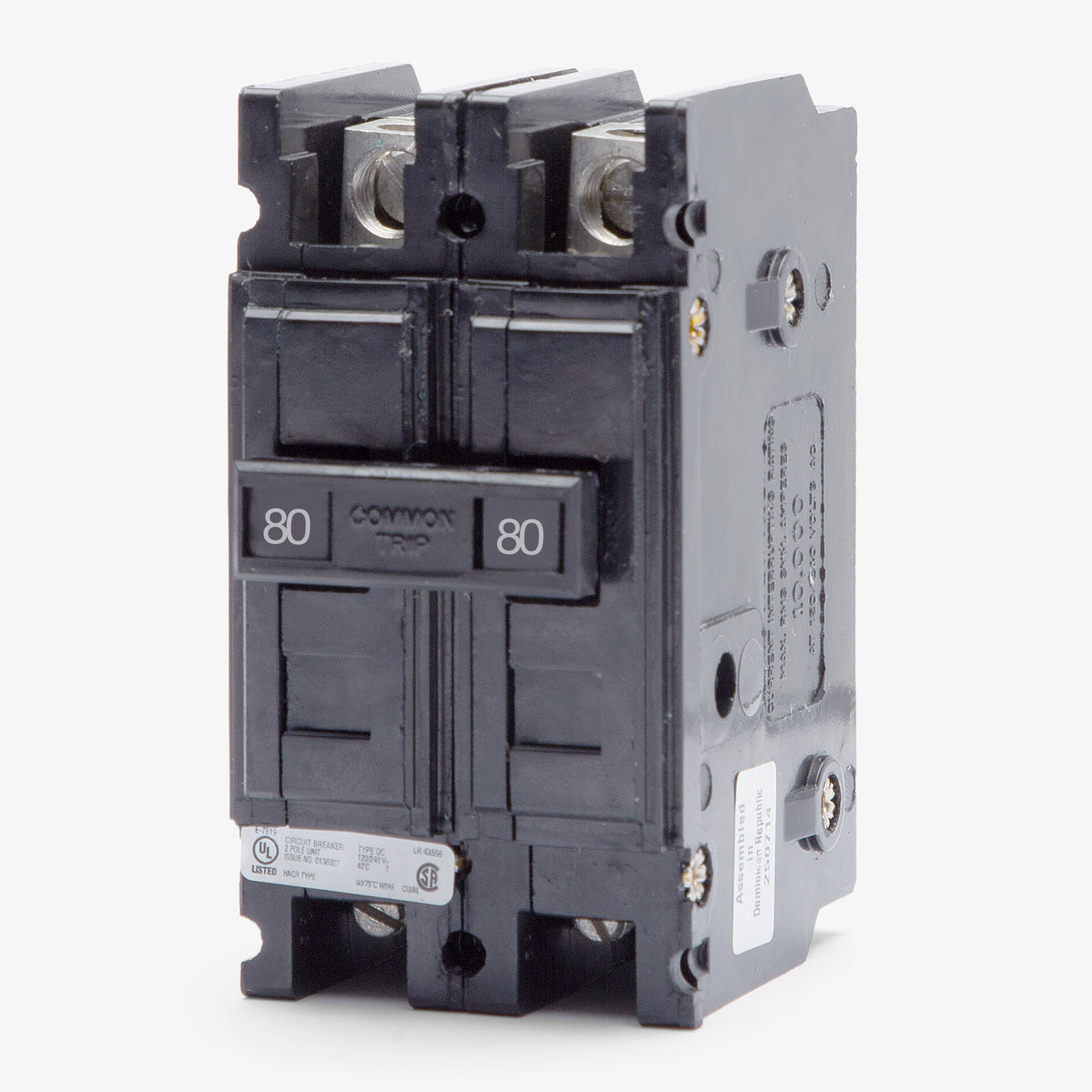

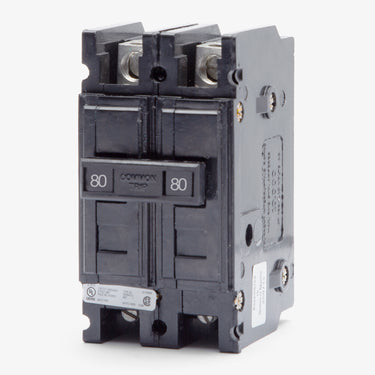

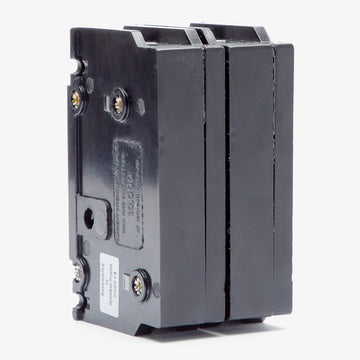

Eaton / Cutler-Hammer QC2080 Miniature Circuit Breaker
- 80A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC2080
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC2080
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC2080 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC2080 - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2080 |
| Series | QC |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 24-48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24-48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QC2080 - 80A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2080-R |
| Series | QC |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 24-48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24-48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
100A 2 Pole Miniature Circuit Breaker
80A 2 Pole Miniature Circuit Breaker
Description
Designed to handle demanding electrical loads, the Eaton QC2080 is an 80A miniature breaker for commercial use. Its thermal-magnetic trip ensures precise response. The cable-in/cable-out design allows for straightforward panel mount installation. It integrates seamlessly into Eaton Quicklag panelboards, control panels, and enclosures. Rated 10 kAIC at 120/240VAC, it delivers dependable short-circuit protection. It comes equipped with box lugs and is HACR rated for HVAC circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC2080 |
| Series | QC |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC, 24-48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24-48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | QC |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 4 AWG - 1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
8 answersCan I mount the QC2080 on a standard DIN rail?
Yes, but it requires a separate adapter. You will need one Eaton QCDINADAPT accessory per pole to securely mount this breaker to a standard 35mm DIN rail.
What is the difference between Eaton QC and QCD breakers?
The QCD series comes factory-built for DIN rail mounting. The QC series, including the QC2080, is a standard cable-in/cable-out breaker that requires the add-on QCDINADAPT accessory to be mounted on a DIN rail.

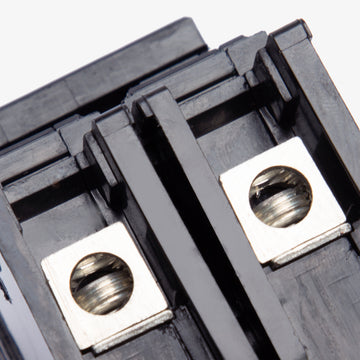

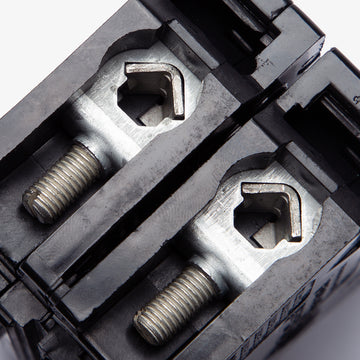

How is the QC2080 wired and what wire sizes does it accept?
This breaker features a feed-thru, cable-in/cable-out connection type. Its box lugs accept either copper or aluminum wiring ranging from 4 AWG to 1/0 AWG.
Is the QC2080 suitable for DC voltage applications?
Yes, in addition to its 120/240VAC rating, this breaker is rated for DC applications. It provides a 5 kAIC interrupting rating at both 62.5VDC and 80VDC.
What type of trip unit does this breaker use?
It utilizes a thermal-magnetic trip unit with fixed long-time and instantaneous (LI) trip functions to protect against overloads and short circuits.
What enclosures and panels are compatible with this breaker?
The QC2080 is designed for Eaton Quicklag panelboards, as well as various industrial control panels and enclosures that support feed-thru miniature circuit breakers.
Is an Eaton QC2080 the same as a Cutler-Hammer QC2080?
Yes. Eaton acquired Cutler-Hammer, so the Eaton QC2080 is the exact direct replacement for a legacy Cutler-Hammer breaker with the same catalog number.
Is this breaker HACR rated for HVAC equipment?
Yes, Eaton Quicklag QC breakers in this amperage range are HACR rated, making the QC2080 suitable for protecting heating, air conditioning, and refrigeration circuits.
