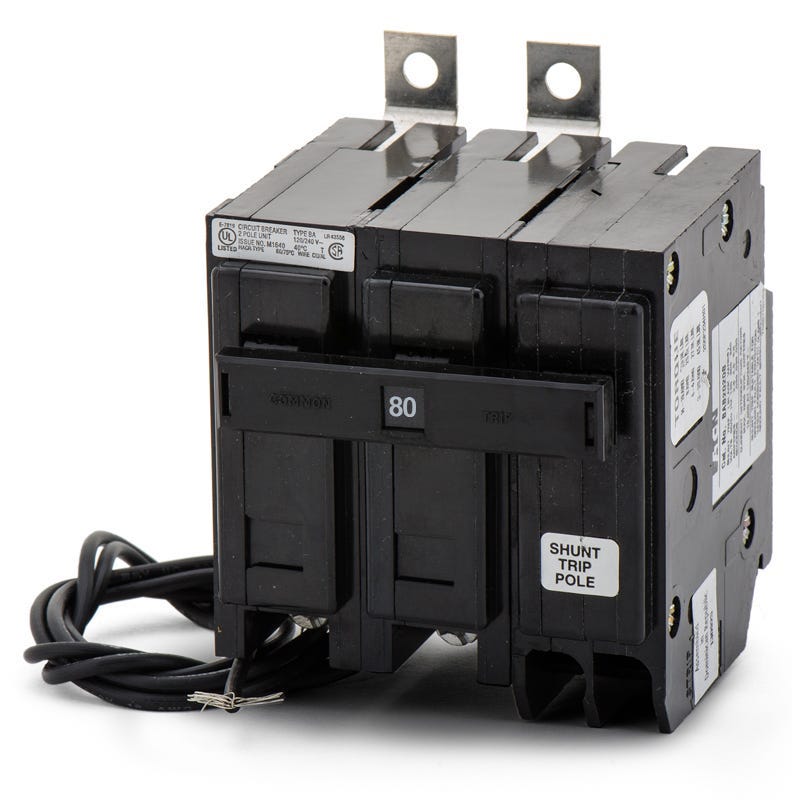

Eaton / Cutler-Hammer BAB2080S Miniature Circuit Breaker
- 80A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2080S
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2080S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2080S - 80A 2 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
70A 2 Pole Miniature Circuit Breaker
100A 2 Pole Miniature Circuit Breaker
60A 2 Pole Miniature Circuit Breaker
Description
Engineered for commercial applications, the Eaton BAB2080S provides reliable 80A overcurrent protection. This Quicklag series miniature breaker features a thermal-magnetic trip mechanism to safeguard electrical distribution systems. The two-pole unit bolts into Eaton Pow-R-Line, Cutler-Hammer, and Westinghouse panelboards. It serves as a functional replacement for discontinued QNBL2080 breakers. Rated for 10 kAIC at 120/240V, this model includes a factory-installed 120-240VAC shunt trip.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2080S |
| Series | BAB |
| Amperage | 80A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards |
| Wire Gauge | 4-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
8 answersWhat panelboards are compatible with the Eaton BAB2080S?
This bolt-on breaker is designed for installation in Eaton Pow-R-Line panelboards, as well as legacy Cutler-Hammer and Westinghouse panelboards.
What does the S suffix in the BAB2080S catalog number indicate?
The S suffix designates that this breaker includes a factory-installed 120/240VAC shunt trip mechanism. This allows the breaker to be tripped remotely for emergency shutdown or control applications.
Can the BAB2080S be used to replace older Westinghouse breakers?
Yes, this Eaton Quicklag breaker serves as a direct functional replacement for legacy Westinghouse and Cutler-Hammer BAB series breakers, including older QNBL shunt-trip units with matching specifications.
What wire sizes and materials are accepted by the terminals on this breaker?
The box lugs on the BAB2080S accommodate 4 AWG to 1/0 AWG conductors and are rated for use with both copper and aluminum wiring.
How does the bolt-on mounting style benefit the installation?
The bolt-on connection fastens directly to the panelboard bus, providing a highly secure, vibration-resistant mechanical and electrical connection that is ideal for commercial and industrial environments.
Is this 80-amp breaker suitable for HVAC applications?
Yes, Eaton Quicklag BAB circuit breakers in this amperage range carry a full HACR rating, making them certified for use with heating, air conditioning, and refrigeration equipment loads.
Can the BAB2080S be used in DC voltage systems?
Yes, while primarily rated for 120/240VAC at 10kAIC, this breaker is also rated for DC applications up to 80VDC with a 5kAIC interrupting capacity.
How does the thermal-magnetic trip unit protect the circuit?
The fixed thermal-magnetic mechanism provides dual protection. The thermal element (long-time) responds to sustained overloads, while the magnetic element (instantaneous) trips immediately during a short circuit.
