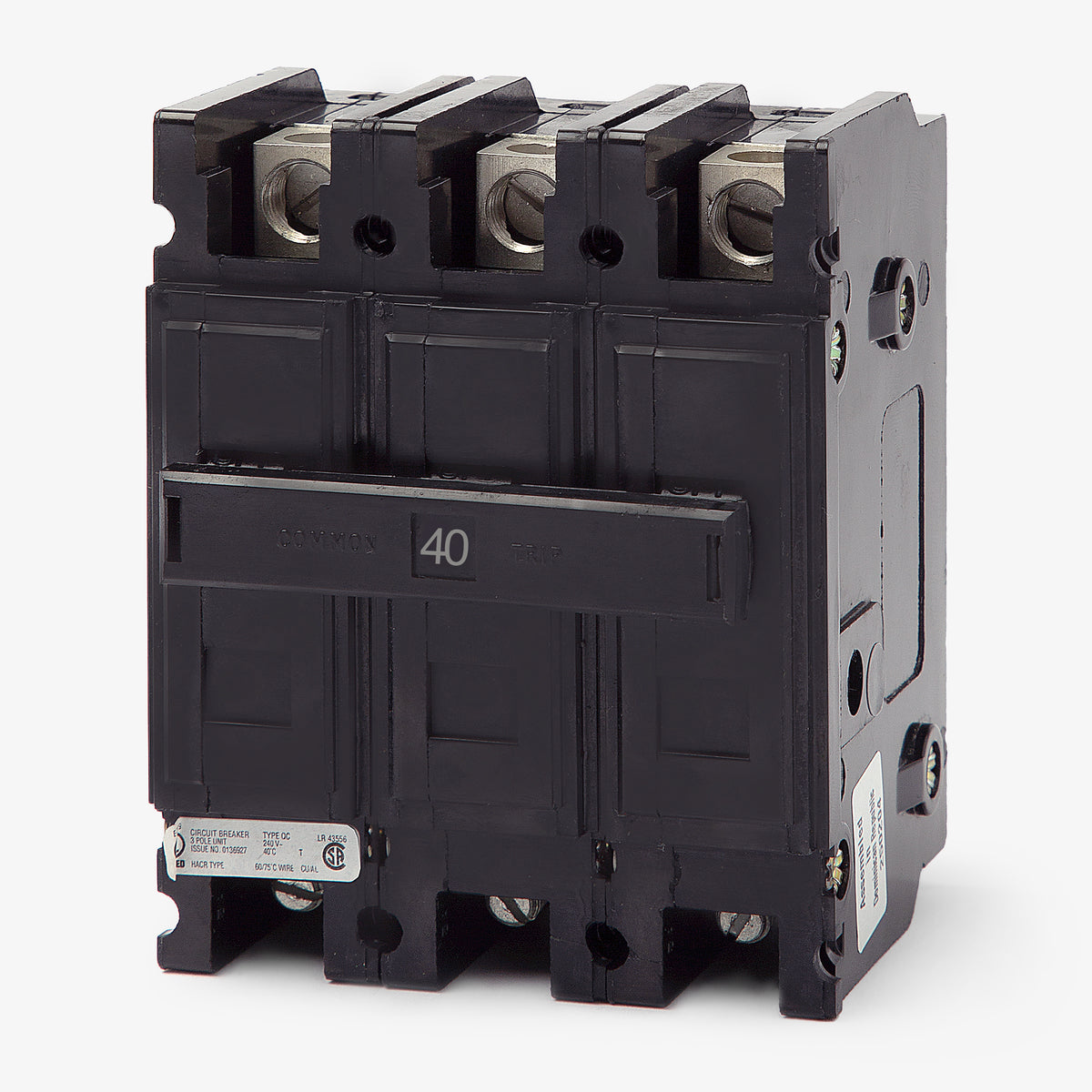

Eaton / Cutler-Hammer QC3040H Miniature Circuit Breaker
- 40A
- 3 Pole
- DIN Rail
Eaton / Cutler-Hammer
QC3040H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC3040H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC3040H - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer QC3040H - 40A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3040H |
| Series | QC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 24-48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Eaton Quicklag Panelboards, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out |
Sold out
Quantity
Eaton / Cutler-Hammer QC3040H - 40A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3040H-R |
| Series | QC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 24-48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Eaton Quicklag Panelboards, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out |
Similar Items
25A 3 Pole Miniature Circuit Breaker
90A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
Designed for industrial applications, this 40-amp Quicklag breaker ensures dependable thermal-magnetic overcurrent protection. It carries a HACR rating for heating and cooling systems. Featuring a cable-in/cable-out configuration, it mounts into Eaton Quicklag panelboards and standard enclosures. It can also be adapted for DIN rail installations. Rated for 10kA interrupting capacity at 240V, the device provides safe operation for three-phase systems and accepts 14-4 AWG wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3040H |
| Series | QC |
| Amperage | 40A |
| Poles | 3 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 24-48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 24-48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Eaton Quicklag Panelboards, DIN Rail (with adapter) |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Cable-in/Cable-out |
Product FAQs
8 answersWhat panels are compatible with the QC3040H breaker?
This Quicklag breaker is designed for use in Eaton Quicklag panelboards and industrial control panels. It utilizes a cable-in, cable-out mounting configuration.
Can the QC3040H be mounted on a DIN rail?
Yes. While it is natively a cable-in, cable-out panel-mount breaker, it can be installed on a standard 35mm DIN rail when paired with the appropriate Eaton DIN rail adapter bracket.
What are the wire size limits for the line and load terminals?

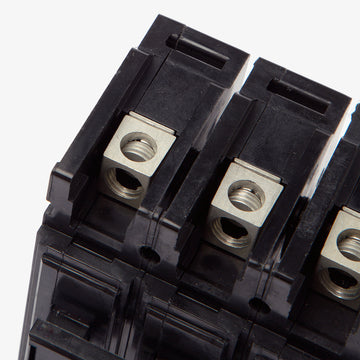

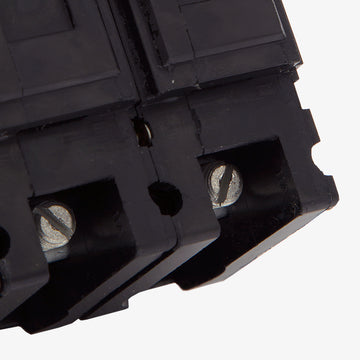

The box lug terminals have different capacities. The line side accepts 14 to 10 AWG aluminum or copper wire, while the load side accepts a wider range of 14 to 4 AWG aluminum or copper wire.
Is this breaker HACR rated for HVAC equipment?
Yes, Eaton Quicklag QC miniature circuit breakers from 10A to 100A are HACR rated, making this 40A model suitable for heating, air conditioning, and refrigeration applications.
Can the QC3040H be used in DC control circuits?
Yes, in addition to its standard AC ratings, this breaker is rated for up to 3.8kA interrupting capacity at 62.5 VDC, allowing it to be used in specific low-voltage DC applications.
Are the trip settings adjustable on the QC3040H?
No, this breaker features fixed thermal and fixed magnetic trip settings. It does not support field adjustments for the trip curve.
Is this a direct replacement for older Westinghouse or Cutler-Hammer QC breakers?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse product lines. This modern Eaton Quicklag breaker is the exact, authentic replacement for legacy Cutler-Hammer and Westinghouse QC3040H models.
Does this breaker include ground fault or arc fault protection?
No. The QC3040H is a standard thermal-magnetic breaker providing long-time and instantaneous (LI) overcurrent and short-circuit protection. It does not feature GFCI or AFCI capabilities.
