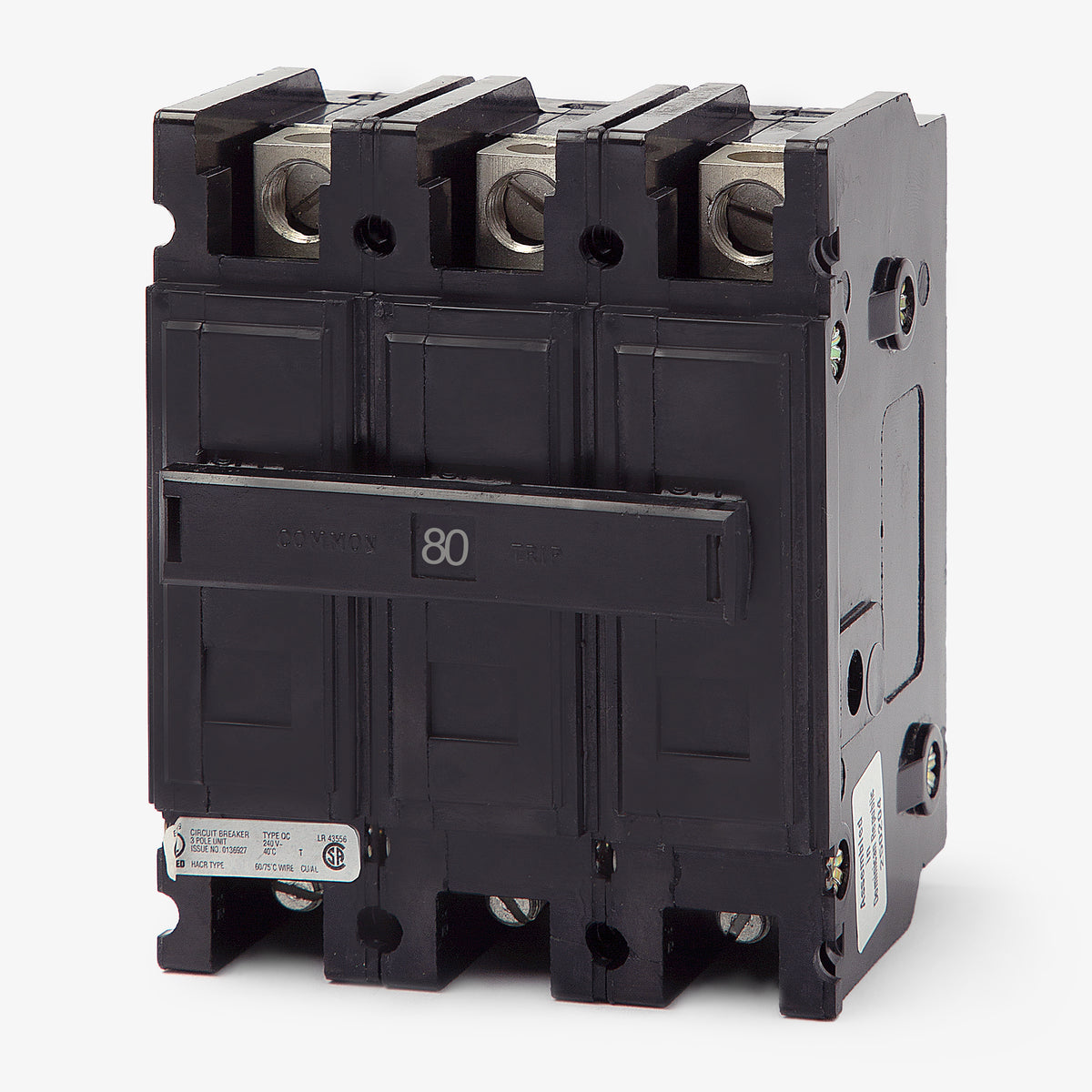

Eaton / Cutler-Hammer QC3080H Miniature Circuit Breaker
- 80A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
QC3080H
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QC3080H
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QC3080H - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer QC3080H - 80A 3 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3080H |
| Series | QC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Non-Interchangeable Trip Unit |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QC3080H - 80A 3 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3080H-R |
| Series | QC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Non-Interchangeable Trip Unit |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Similar Items
100A 3 Pole Miniature Circuit Breaker
60A 3 Pole Miniature Circuit Breaker
50A 3 Pole Miniature Circuit Breaker
Description
Built for demanding electrical environments, the Eaton QC3080H provides 80A of thermal-magnetic protection across three poles. This Quicklag QC series breaker features a cable-in/cable-out design, making it highly adaptable for various setups. It seamlessly integrates into Eaton Quicklag panelboards, control panels, and industrial enclosures. Rated at 10kAIC at 240VAC, the breaker includes a non-interchangeable trip unit and is HACR rated for heating and cooling equipment applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QC3080H |
| Series | QC |
| Amperage | 80A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 48VDC, 62.5VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 48VDC, 3.8kA @ 62.5VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Control Panels, Enclosures, DIN Rail (with adapter), Eaton Quicklag Panelboards |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Non-Interchangeable Trip Unit |
| Standards | CSA C22.2 No. 5, HACR, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersHow does the QC3080H connect to power if it does not plug into a busbar?

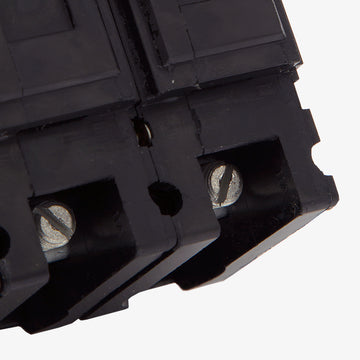

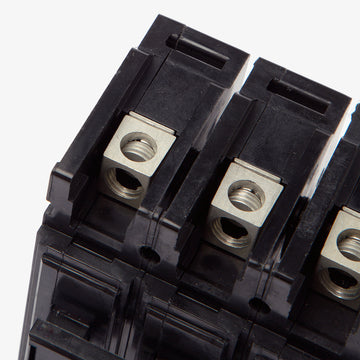

The QC3080H is a feed-thru breaker featuring a cable-in/cable-out design. Instead of snapping or bolting onto a panel busbar, it uses box lugs on both the line and load sides to connect directly to your wiring.
Will the QC3080H fit in a standard residential Eaton BR or CH load center?
No. Because it is a feed-thru breaker with line and load lugs, it cannot plug onto or bolt onto standard residential busbars. It is specifically designed for Eaton Quicklag panelboards, industrial enclosures, and control panels.
Can I mount the QC3080H on a DIN rail?
Yes, but it requires a separate DIN rail adapter. Out of the box, it is configured for standard panel mounting.
Do I need to purchase special lugs to use aluminum wire with this breaker?
No. The factory-installed box lugs on the QC3080H are dual-rated for both copper and aluminum (Cu/Al) conductors.
Is the QC3080H suitable for HVAC equipment?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment that requires HACR-certified overcurrent protection.
Does the QC3080H provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic breaker designed strictly for overload and short-circuit protection. It does not contain GFCI or AFCI circuitry.
Are Eaton and Cutler-Hammer QC3080H breakers the exact same product?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Quicklag QC series under the Eaton name. The QC3080H catalog number and physical specifications are identical regardless of which brand name is printed on the label.
