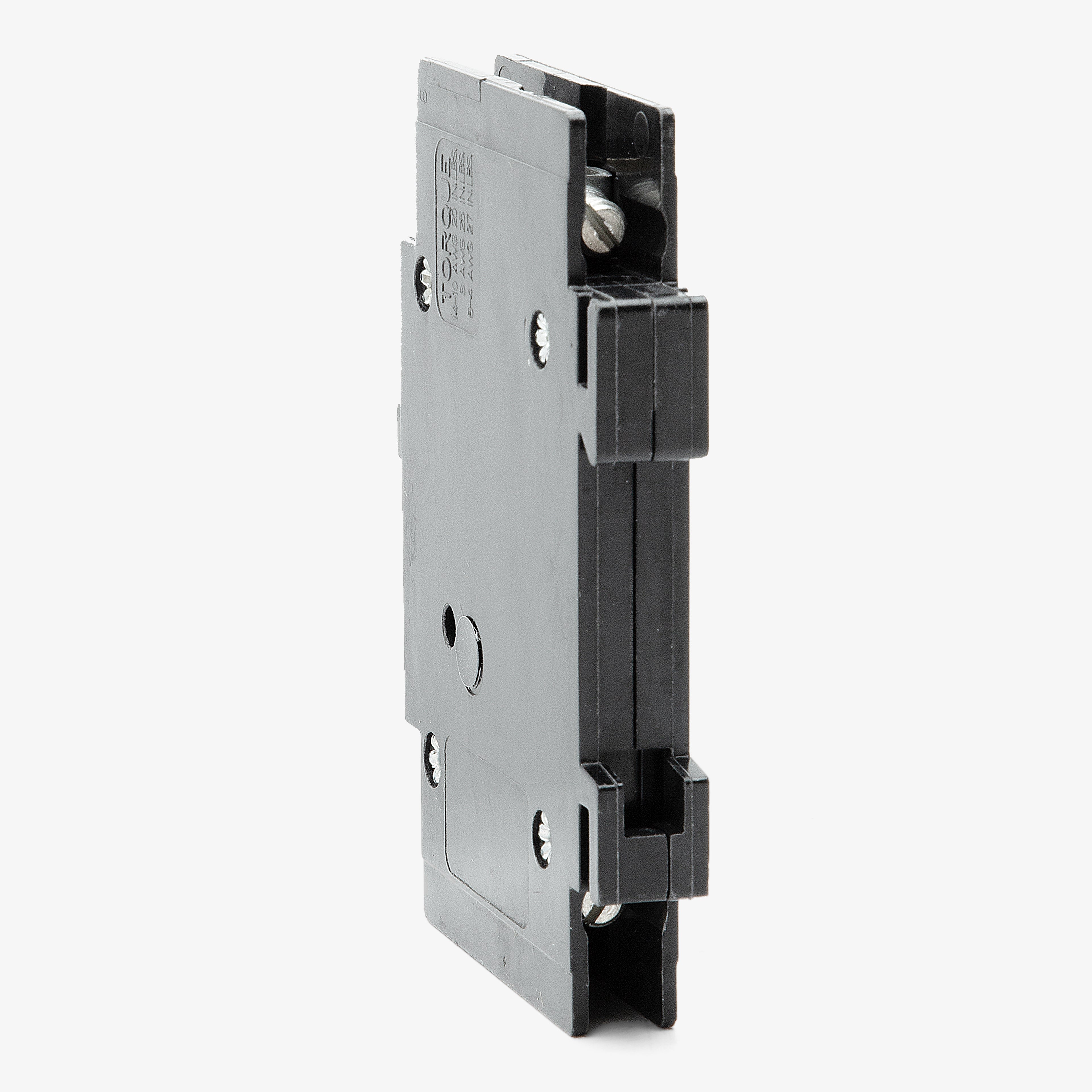

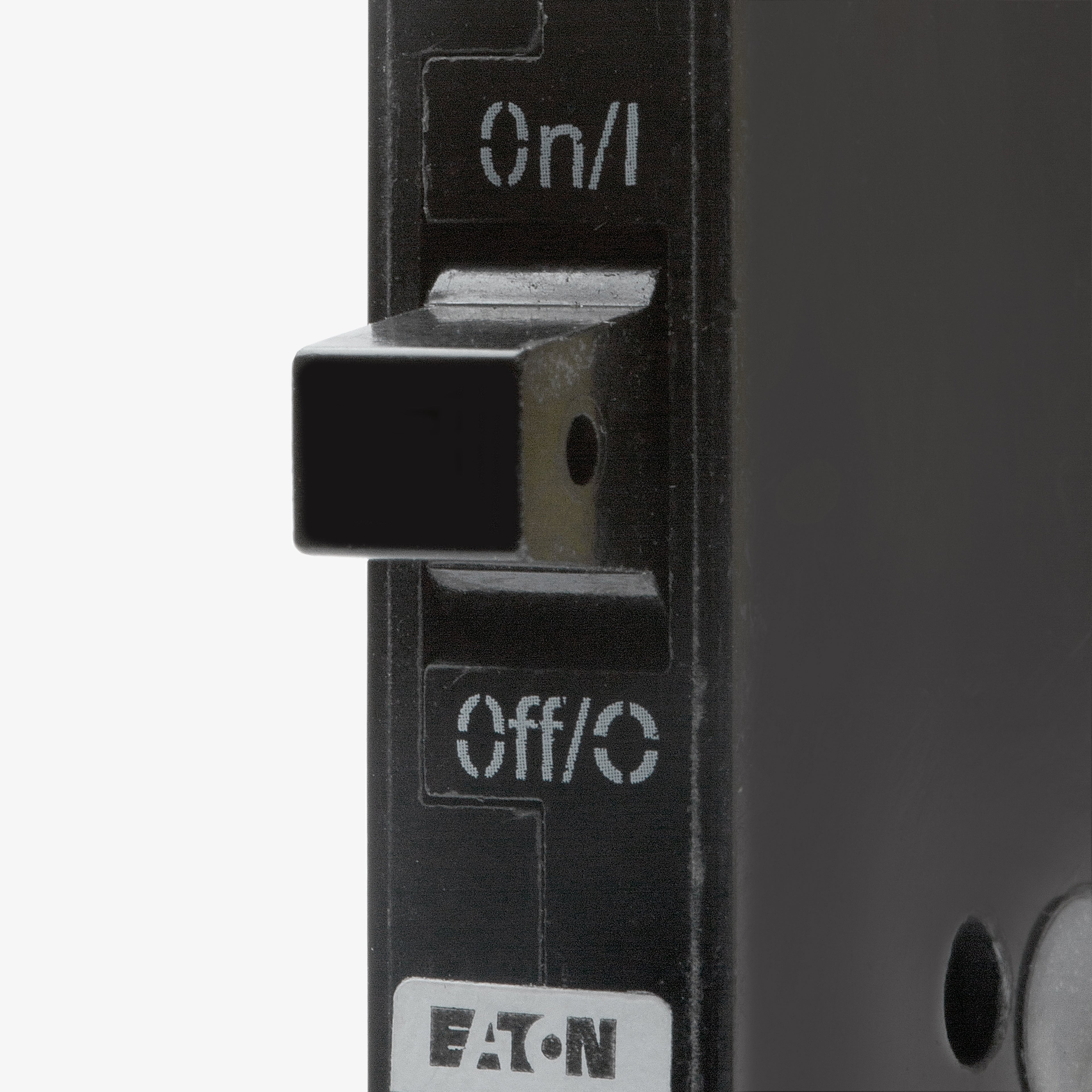

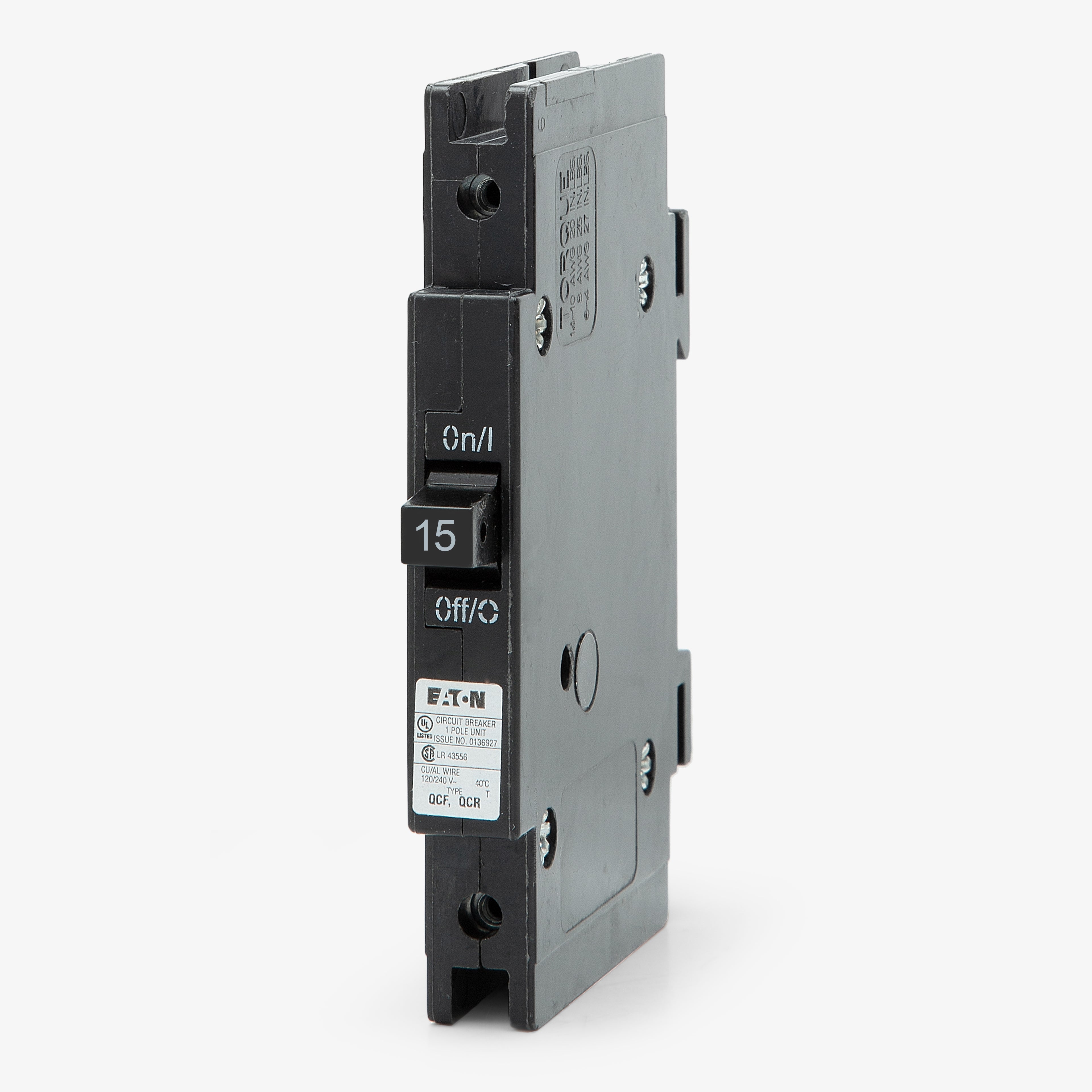

Eaton / Cutler-Hammer QCF1015 Miniature Circuit Breaker
- 15A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
QCF1015
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QCF1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QCF1015 - 15A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
10A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Part of the space-saving Quicklag QCF series, the Eaton QCF1015 is a single-pole miniature breaker for industrial use. It combines a half-inch width with robust thermal-magnetic protection. This feed-thru breaker installs into OEM control panels, enclosures, and Quicklag panelboards. The cable-in/cable-out design includes box lugs for 14-4 AWG wiring. Featuring an SWD rating, it is approved for switching 120V fluorescent lighting loads. It also carries a HACR rating and a 10kAIC capacity.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QCF1015 |
| Series | QCF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | OEM Control Panels, Enclosures, Eaton Quicklag Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
6 answersHow does the QCF1015 connect to the electrical circuit?

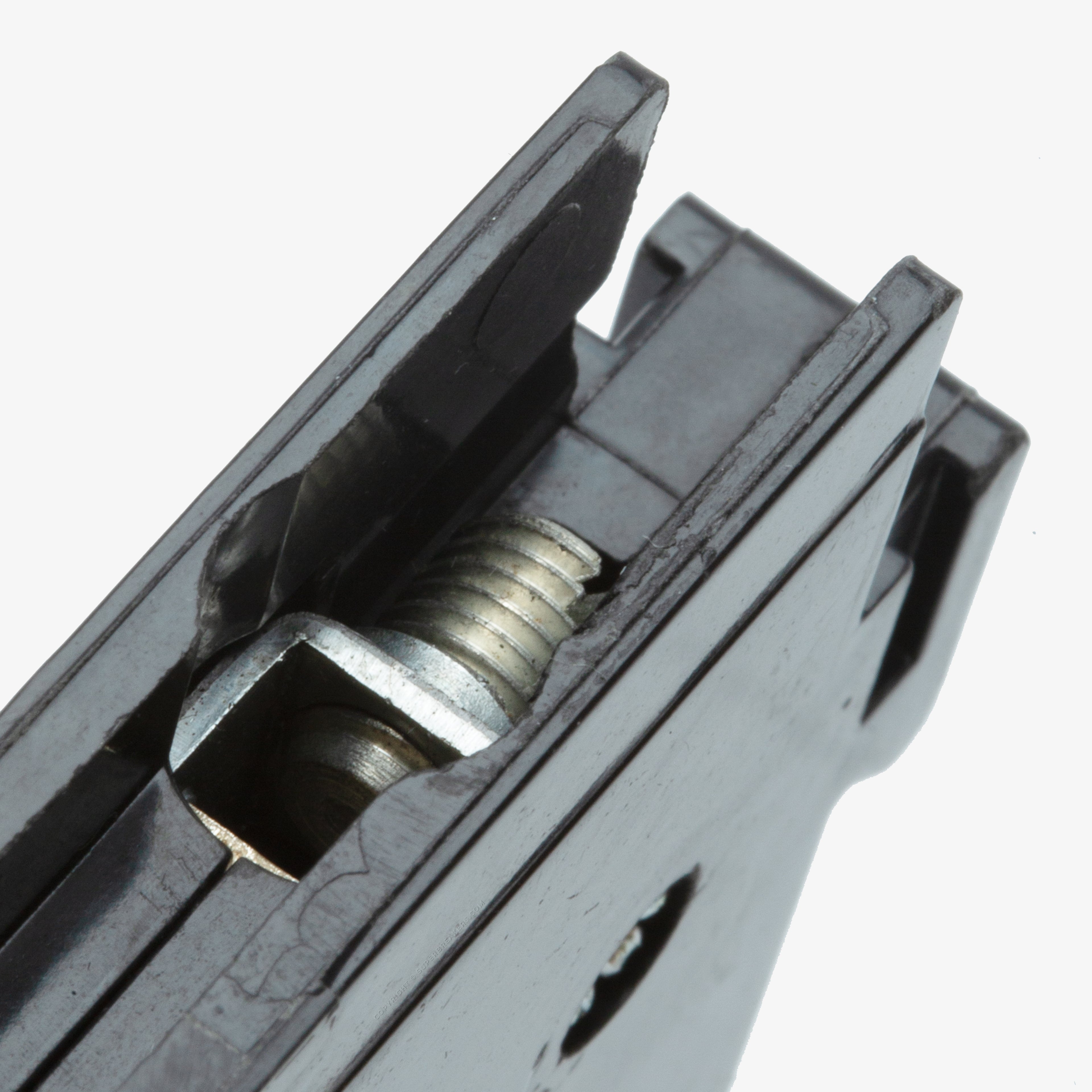

It utilizes a feed-thru, cable-in and cable-out design with box lug terminals. This means wires connect directly to both the line and load sides rather than plugging onto a bus bar.
Can ring terminals be used with the QCF1015 breaker?
Yes, while the standard terminals are box lugs, it is also suitable for line and load side ring terminal connections using a #10-32 terminal screw.
How much space does this breaker occupy in a panel?
As part of the Quicklag QCF series, it features a compact half-inch width, allowing for high-density installations in space-constrained control panels.
Is the QCF1015 suitable for switching lighting circuits?
Yes, it is SWD rated, meaning it is approved for switching duty applications like 120V fluorescent lighting loads.
Can I use this breaker for HVAC applications?
Yes, it carries a HACR rating, making it suitable for heating, air conditioning, and refrigeration equipment requiring 15-amp protection.
What are the alternate part numbers or identifiers for the QCF1015?
This breaker can also be identified by UPC 786679143025 or alternate part number 8889C25G02.
