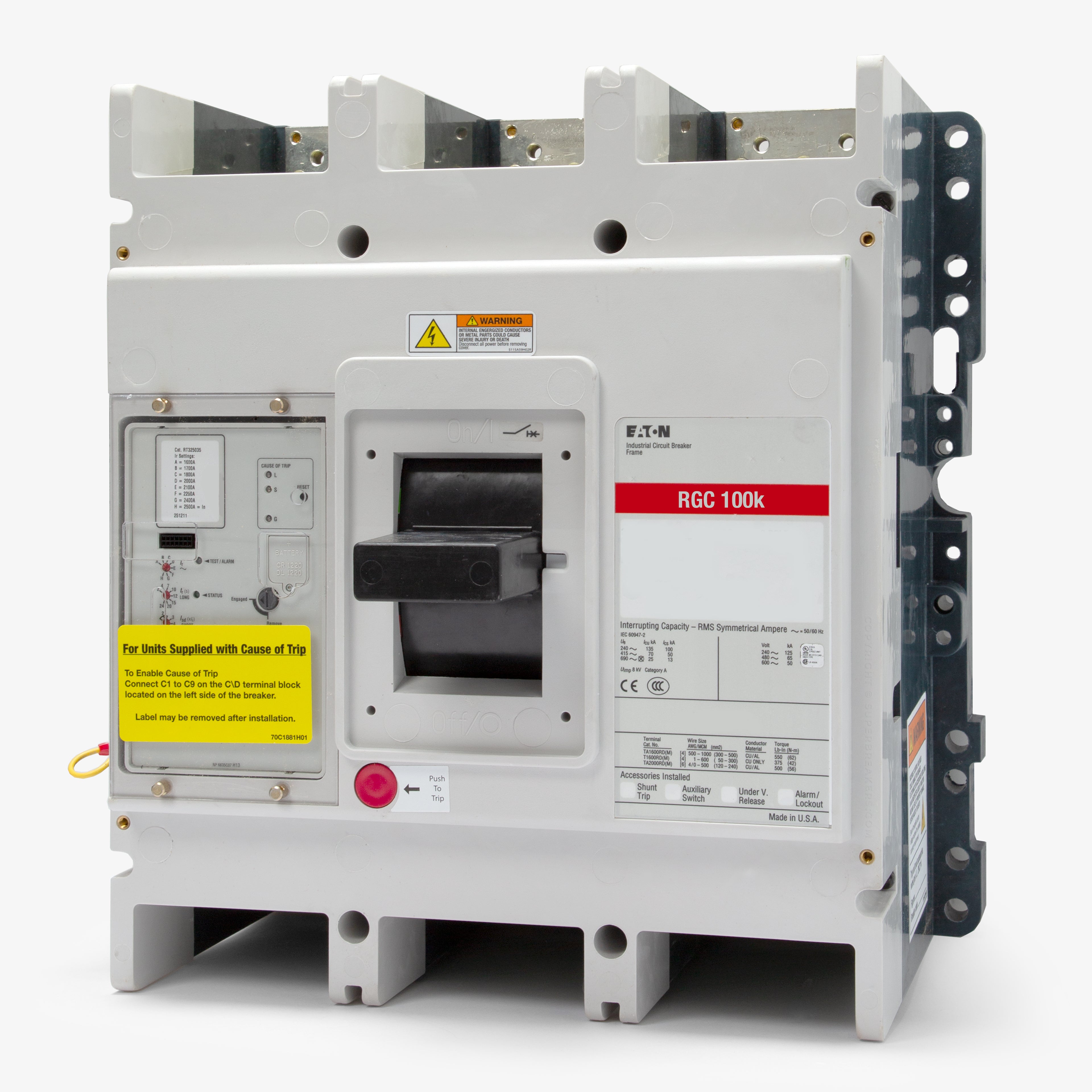

Eaton / Cutler-Hammer RGC320036E - 2000A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGC320036E

Eaton / Cutler-Hammer RGC320036E - 2000A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGC320036E
Select Item Condition
Earn 10542 SuperPoints

Quantity

Reach out to verify stock
Inquire about this product
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer RGC320036E - 2000A 3 Pole Molded Case Circuit Breaker

New

$10542.00 Low stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for heavy-duty applications, the Eaton RGC320036E is a 2000A, 3-pole Series G molded case circuit breaker. It delivers reliable power distribution with an 80% continuous current rating and reverse feed capabilities. This unit mount MCCB installs into Eaton Series G panelboards and switchboards. It features a 100 kAIC rating at 480VAC to safely clear severe faults. The Digitrip 310+ electronic trip unit provides adjustable LSIG protection for precise system coordination.

Specifications

Brand Eaton / Cutler-Hammer
Series RGC
Part Number RGC320036E
Amperage 2000A
Amperage Range 1000-2000A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC
Mounting Style Unit Mount
Terminal Type Stud/Tapped Pad
For Use With Eaton Series G Panelboards, Switchboards, Motor Control Centers
Trip Technology Electronic Trip
Trip Function Code LSIG
Trip Function Long-Time, Short-Time, Instantaneous, Ground Fault
Trip Adjustability Adjustable
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment
Accessories Lugs Not Included
Standards CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
Approval CE, CSA, IEC, KEMA, UL
Temp Rating -20C to 70C
Construction Features HACR Rated, Current Limiting, Reverse Feed, 80% Rated, True RMS Sensing
