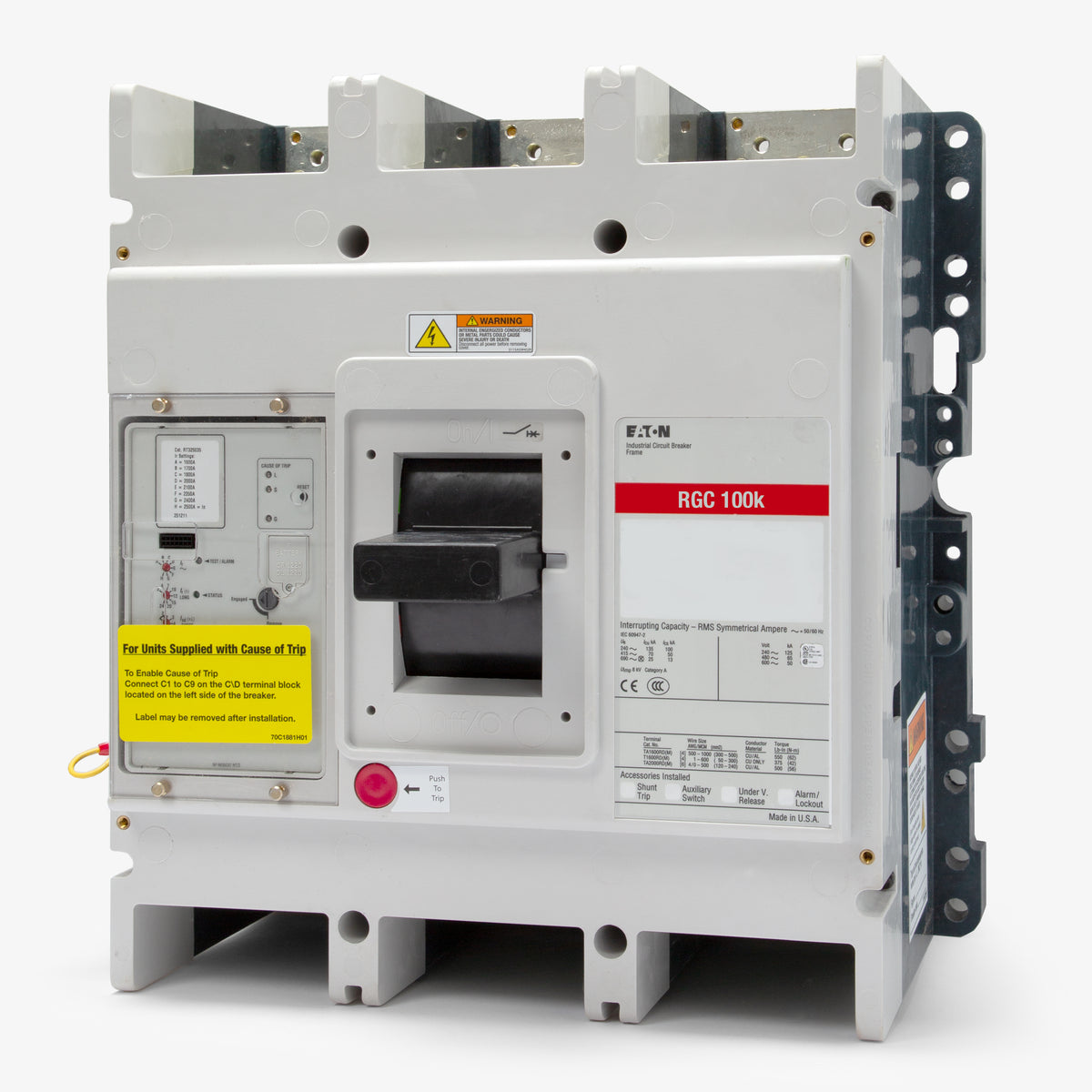

Eaton / Cutler-Hammer RGC325039E Molded Case Circuit Breaker
- 2500A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGC325039E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGC325039E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGC325039E - 2500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGC320038E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGC320039E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGC316038E
1600A 3 Pole Molded Case Circuit Breaker
Description
Built to handle demanding electrical systems, the Eaton RGC325039E is a 2500A, 3-pole electronic trip circuit breaker. It is designed for commercial power distribution where precise coordination is required. This unit-mount RG Frame breaker installs into Eaton Series G panelboards, switchboards, and motor control centers. It stands out with a 100kAIC rating at 480VAC, adjustable LSIG trip settings for ground fault protection, and an integrated Arcflash Reduction Maintenance System (ARMS).Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | RGC |
| Amperage | 2500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC |
| Amperage Range | 1600-2500A |
|---|
| Frame Type | RG |
|---|---|

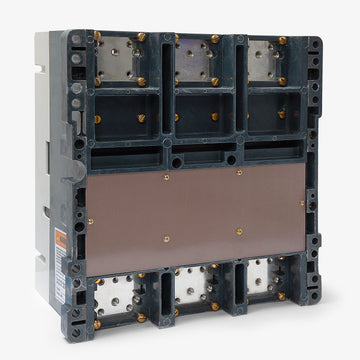

| Terminal Type | Stud/Tapped Pad |
| For Use With | Eaton Series G Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Imperial Tapped Pads |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, 80% Rated, True RMS Sensing, Arcflash Reduction Maintenance System (ARMS) |
Product FAQs
5 answersDoes the RGC325039E include wire lugs?

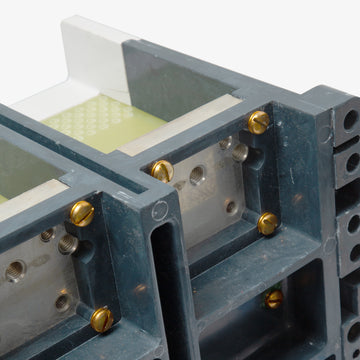

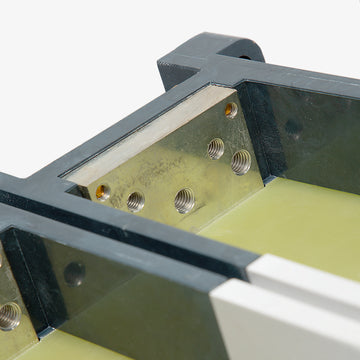

No, this breaker is supplied with stud and tapped pad terminals. Wire lugs must be ordered separately based on your specific conductor size and material requirements.
Can the RGC325039E be reverse fed?
Yes, Eaton Series G R-Frame circuit breakers are suitable for reverse feed applications.
What type of enclosures or assemblies accept this breaker?
This RG-frame breaker is designed for installation in Eaton Series G panelboards, switchboards, and motor control centers.
How does the maintenance mode trip function improve safety?
The maintenance mode feature allows personnel to temporarily lower the instantaneous trip threshold. This reduces the available arc fault energy downstream, providing a safer environment for workers performing maintenance on energized equipment.
What protection settings are available on the ALSIG trip unit?
The ALSIG electronic trip unit provides fully adjustable Long-Time, Short-Time, Instantaneous, and Ground-Fault protection parameters to ensure precise coordination with your electrical system.
