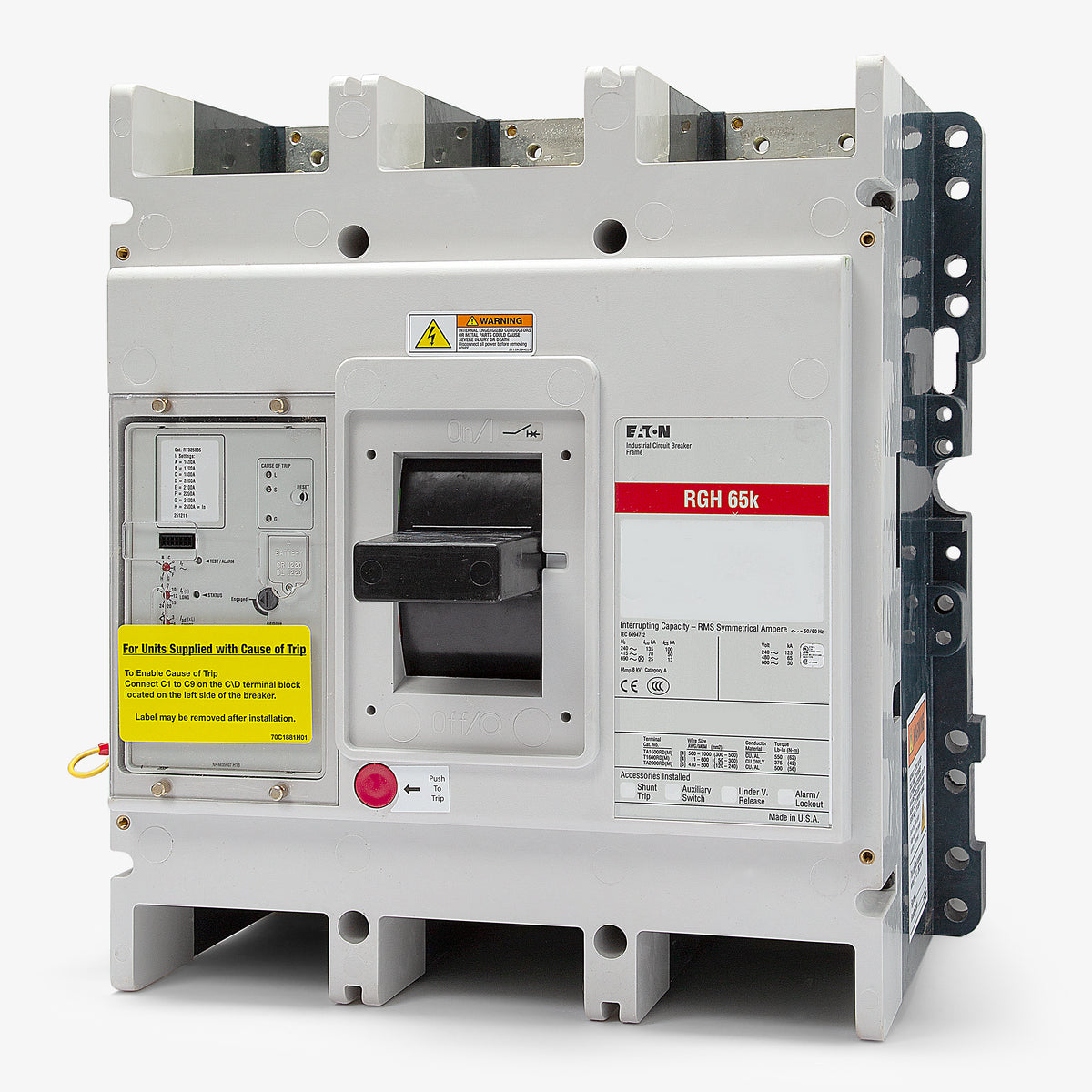

Eaton / Cutler-Hammer RGH320033E Molded Case Circuit Breaker
- 2000A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGH320033E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGH320033E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGH320033E - 2000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGH320038E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH320032E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH320036E
2000A 3 Pole Molded Case Circuit Breaker
Description
The Eaton RGH320033E is a 3-pole, 2000A molded case circuit breaker from the Series G family. It is engineered to deliver dependable power distribution across demanding commercial environments. Designed as a unit-mount device, it integrates into Eaton Pow-R-Line switchboards and motor control centers. The breaker includes imperial tapped pads and supports reverse feed configurations. Featuring a Digitrip 310 trip unit, it offers adjustable LS pickup settings and a 65kAIC rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | RGH320033E |
| Series | RGH |
| Amperage | 2000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 1000-2000A |
|---|
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Eaton Pow-R-Line Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LS |
| Trip Function | Long-Time, Short-Time |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Lug Kits |
|---|---|
| Accessories | Imperial Tapped Line/Load Pads |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | 80% Rated, Reverse Feed, True RMS Sensing, Zone Selective Interlocking |
Product FAQs
6 answersWhat does the "33E" in the RGH320033E catalog number indicate?
In the Eaton Series G nomenclature, the "33" suffix designates that the breaker is equipped with a Digitrip 310 electronic trip unit programmed for Long-Time and Short-Time (LS) protection functions. The "E" indicates the breaker comes with imperial tapped pad terminals.
Does the RGH320033E come with standard mechanical lugs for wire termination?

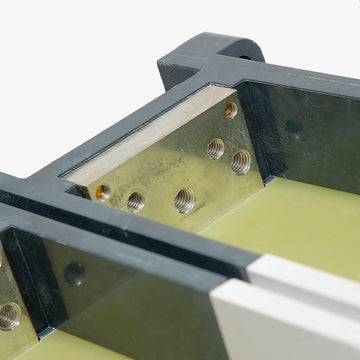

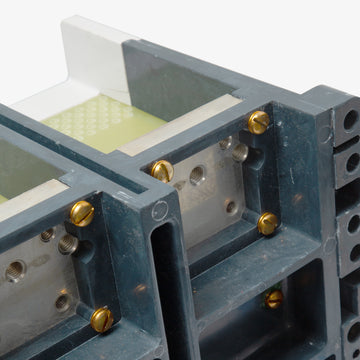

No. This RG-frame breaker is supplied standard with imperial stud/tapped pad terminals on both the line and load sides. If your installation requires mechanical or compression lugs for direct wire termination, those lug kits must be ordered separately.
Can the RGH320033E be used in reverse feed configurations?
Yes, Eaton Series G R-frame circuit breakers are designed and rated for reverse feed applications without compromising their protective capabilities.
Are Cutler-Hammer and Eaton the same brand for this breaker?
Yes. Eaton acquired Cutler-Hammer and continues to manufacture the Series G molded case circuit breakers. The RGH320033E may be labeled under either brand name, but the internal components, specifications, and physical footprint are identical.
How does the adjustable rating plug work on this 2000A breaker?
The Digitrip 310 electronic trip unit features an adjustable rating plug, allowing electricians to dial in precise continuous current pickup limits (Long-Time) and specific Short-Time delay settings to coordinate closely with downstream loads and system requirements.
What type of panels typically accept this 2000A unit mount breaker?
The RGH320033E is a unit mount style breaker engineered for heavy commercial and industrial power distribution. It is most commonly bolted directly into Eaton Pow-R-Line switchboards and heavy-duty motor control centers.
