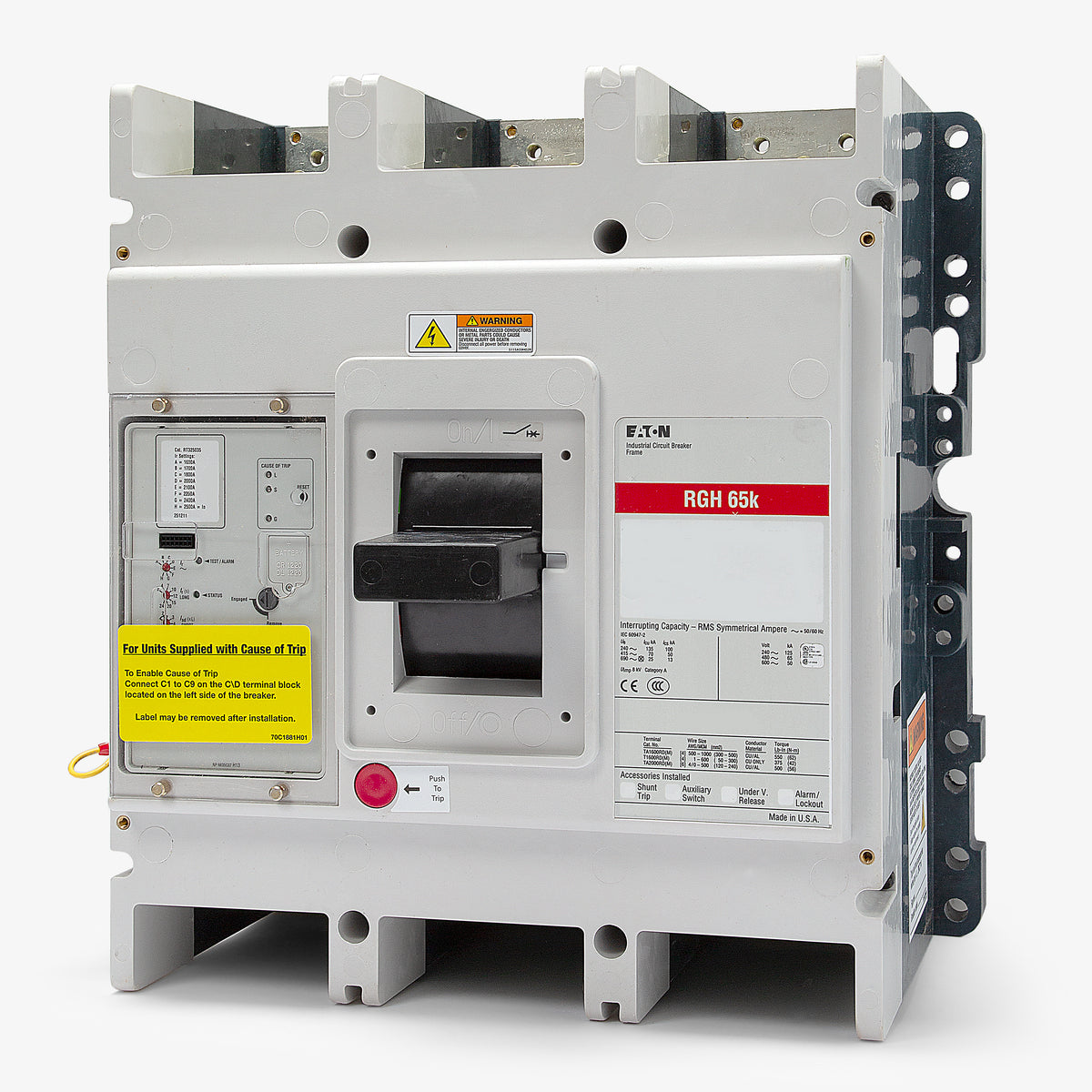

Eaton / Cutler-Hammer RGH320036E Molded Case Circuit Breaker
- 2000A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGH320036E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGH320036E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGH320036E - 2000A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGH320033E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH320035E
2000A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH320038E
2000A 3 Pole Molded Case Circuit Breaker
Description
The RGH320036E is a 2000A, 3-pole molded case circuit breaker from Eaton's Series G family. Built for industrial environments, it delivers reliable power distribution and advanced protection. This unit-mount RG-frame breaker installs into Pow-R-Line panelboards, switchboards, and motor control centers. Rated for 65 kAIC at 480V, it utilizes a Digitrip 310+ electronic trip unit with adjustable LSIG settings. Zone selective interlocking ensures optimal system coordination.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | RGH320036E |
| Series | RGH |
| Amperage | 2000A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 1000-2000A |
|---|
| Frame Type | MDL |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Imperial Tapped Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, 80% Rated, True RMS Sensing, Visual Trip Indicator |
Product FAQs
8 answersWhat types of enclosures or panels is the RGH320036E designed to fit?
This RG-frame breaker is engineered for installation in Eaton Pow-R-Line panelboards, switchboards, and motor control centers.
What specific trip functions are included in the RGH320036E's electronic trip unit?
It features a Digitrip 310+ electronic trip unit with adjustable LSIG settings, providing Long-Time, Short-Time, Instantaneous, and Ground-Fault protection.
How do I adjust the trip settings on the RGH320036E?
The Digitrip 310+ electronic trip unit features adjustable dials on the front of the breaker, allowing you to independently set the Long-Time, Short-Time, Instantaneous, and Ground-Fault pickup and delay parameters.
Is the RGH320036E rated for 100% continuous operation?
No, the standard RGH320036E is an 80% rated circuit breaker. This means its maximum continuous load should not exceed 1600 amps (80% of its 2000A nominal rating). For a 100% rated version, a 'C' suffix would be required in the catalog number.
How are connections made to the RGH320036E?

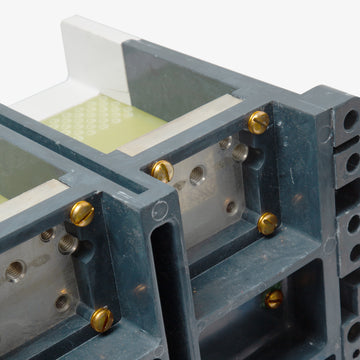

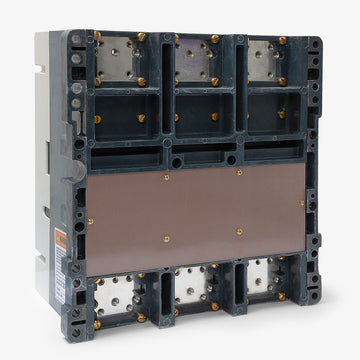

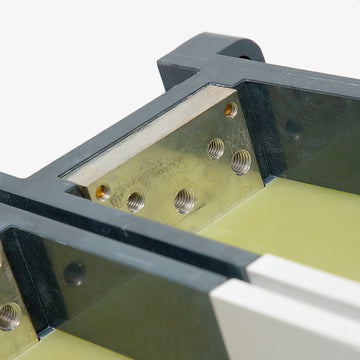

The RGH320036E features a bolt-on connection with imperial-tapped line and load pads. If you are connecting standard wire, you will need to purchase and install compatible terminal lugs separately.
Can the RGH320036E be used in reverse-feed applications?
Yes, all Eaton RG-frame circuit breakers, including the RGH320036E, are suitable for reverse-feed use.
What does the 'H' in the RGH320036E catalog number stand for?
The 'H' indicates that this is a high-interrupting capacity version of the RG-frame breaker, providing a 65kAIC rating at 480VAC.
What does the 'E' at the end of the RGH320036E catalog number indicate?
The 'E' signifies that the breaker is equipped with imperial (English) tapped line and load conductors. If metric threading is required, the suffix 'M' is used instead.
