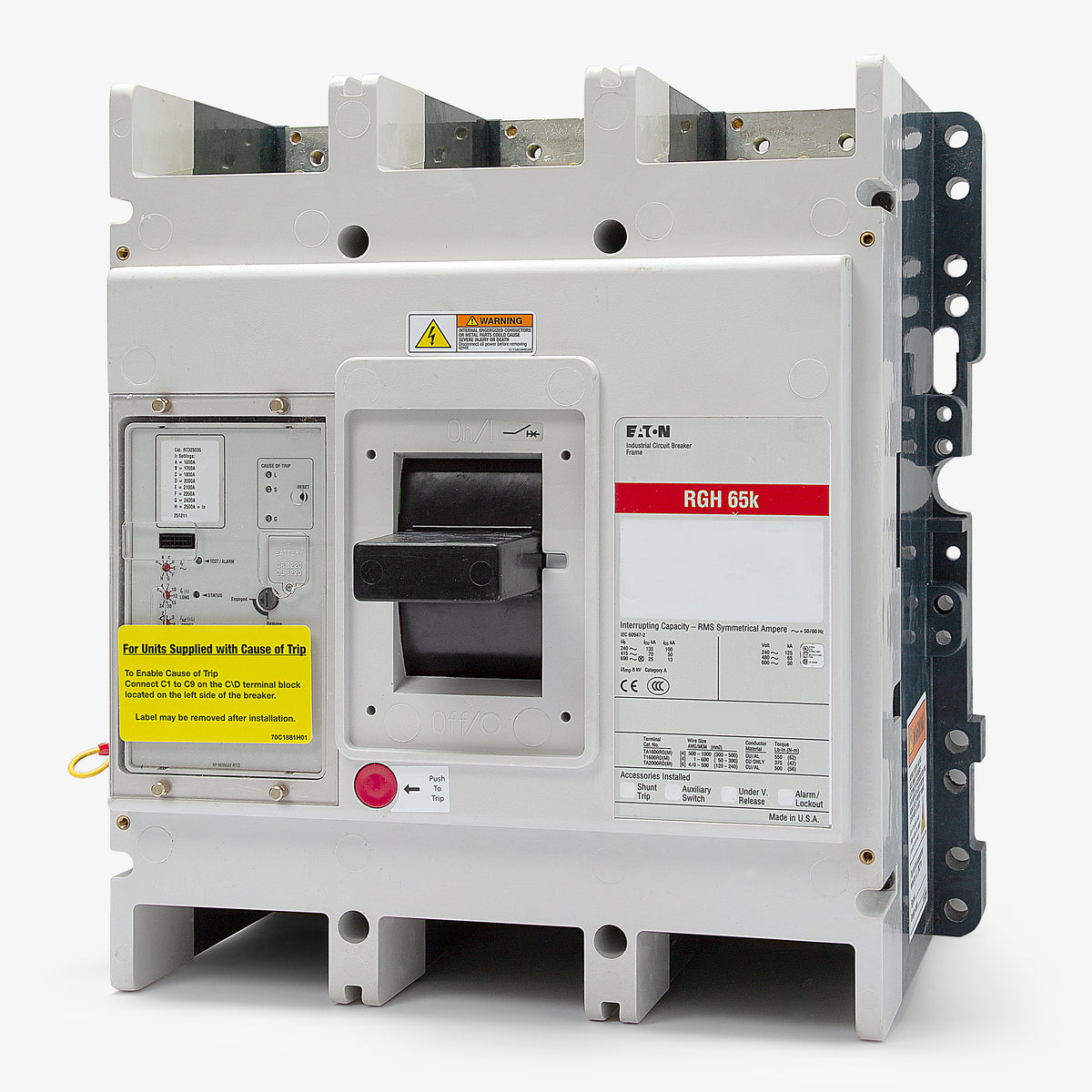

Eaton / Cutler-Hammer RGH325036E Molded Case Circuit Breaker
- 2500A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGH325036E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGH325036E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGH325036E - 2500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGH325033E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH325035E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH325038E
2500A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial power systems, the Eaton RGH325036E is a 3-pole, 2500A Series G molded case circuit breaker. It integrates into Eaton Pow-R-Line panelboards and switchboards. This unit-mount RG-frame breaker features imperial tapped pads and is reverse feed capable. It is 80% rated to provide installation flexibility. A Digitrip electronic trip unit delivers precise LSIG protection. True RMS sensing and a 65kAIC rating at 480VAC ensure reliable system coordination.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | RGH325036E |
| Series | RGH |
| Amperage | 2500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 1600-2500A |
|---|
| Terminal Type | Stud/Tapped Pad |
|---|---|
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIG |
| Trip Function | Long-Time, Short-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Imperial Tapped Line/Load Pads |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, 80% Rated, True RMS Sensing, Visual Trip Indicator |
Product FAQs
5 answersWhat protection features are included in the LSIG trip function of the RGH325036E?
The LSIG designation indicates the Digitrip 310 electronic trip unit provides adjustable protection for Long-Time overload, Short-Time delay, Instantaneous short circuit, and Ground Fault conditions.
Which Eaton equipment is compatible with the RGH325036E breaker?
This RG-frame Series G breaker is designed for installation in Eaton Pow-R-Line panelboards, switchboards, and motor control centers.
What type of terminal connections are standard on this 2500A breaker?

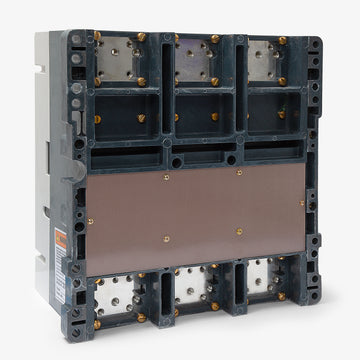

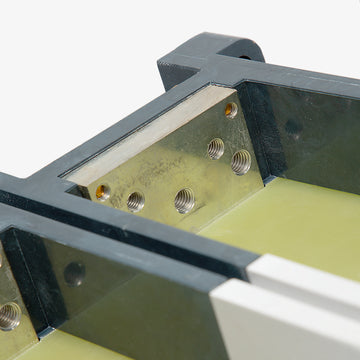

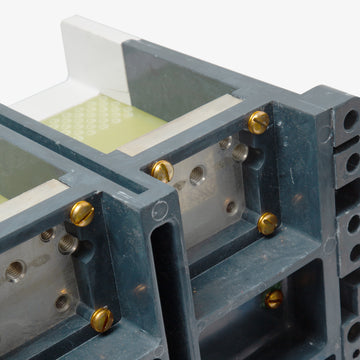

The RGH325036E features stud and tapped pad connections on the line and load sides, which are designed to accept bolt-on lug terminals for heavy-duty cable termination.
Can the trip settings be adjusted on the RGH325036E?
Yes, the included Digitrip 310 electronic trip unit features an adjustable rating plug. This allows licensed electricians to fine-tune the trip curve to match specific system requirements.
Does this breaker provide ground fault protection?
Yes, the G in the LSIG trip function code indicates that this breaker includes integrated ground fault protection for equipment safety.
