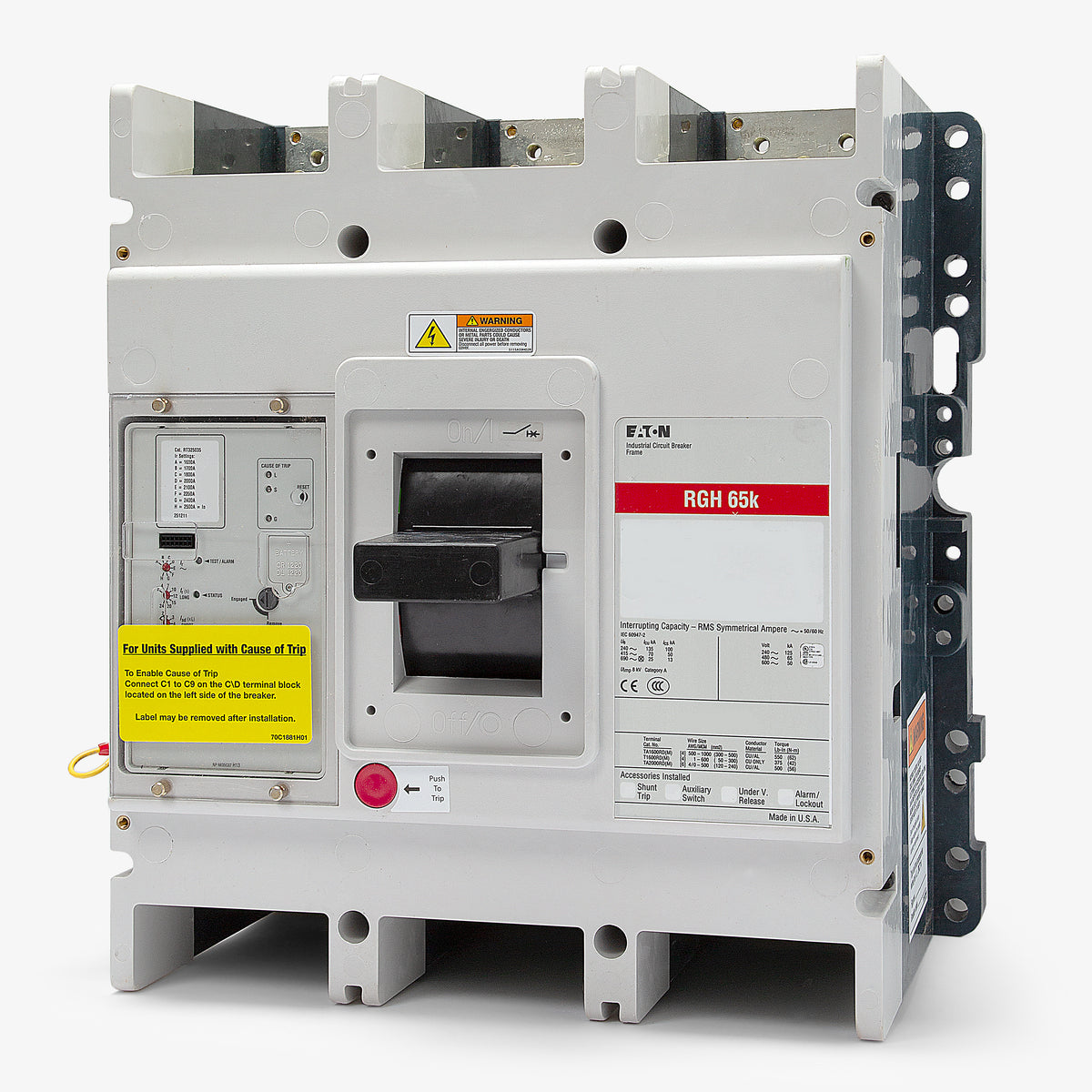

Eaton / Cutler-Hammer RGH325032E Molded Case Circuit Breaker
- 2500A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
RGH325032E
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
RGH325032E
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer RGH325032E - 2500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerRGH325033E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH325035E
2500A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerRGH325038E
2500A 3 Pole Molded Case Circuit Breaker
Description
Engineered for demanding industrial environments, the Eaton RGH325032E serves as a 3-pole, 2500A molded case circuit breaker from the Series G R-Frame lineup. It mounts into Eaton Pow-R-Line switchboards and motor control centers. This 80% rated breaker provides advanced protection with a Digitrip 310+ electronic trip unit, offering adjustable Long-Time, Short-Time, and Instantaneous (LSI) settings. It delivers 65 kAIC at 480VAC and includes reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | RGH325032E |
| Series | RGH |
| Amperage | 2500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 125kA @ 240VAC, 65kA @ 480VAC, 35kA @ 600VAC |
| Amperage Range | 1600-2500A |
|---|
| Frame Type | RG |
|---|---|
| Terminal Type | Stud/Tapped Pad |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Imperial Tapped Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Reverse Feed, 80% Rated, True RMS Sensing, Visual Trip Indicator |
Product FAQs
8 answersWhich Eaton enclosures are compatible with the RGH325032E breaker?
This RG-frame breaker is designed for use in Eaton Pow-R-Line panelboards, switchboards, and motor control centers that accommodate Series G unit mount breakers.
Does the RGH325032E come with standard wire lugs?
No. This breaker features stud or tapped pad terminals for bolt-on connections. If you are not connecting directly to a busbar, you will need to purchase and install compatible mechanical or compression lugs separately based on your wire size.
How does the LSI electronic trip unit benefit system coordination?
The Long-Time, Short-Time, and Instantaneous (LSI) settings allow panel builders to fine-tune the trip curve. This ensures that a fault clears at the breaker closest to the issue without unnecessarily tripping the main 2500A breaker, improving overall system reliability.
Is the RGH325032E part of the Series C or Series G family?
The RGH325032E is an RG-frame breaker, which belongs to the Eaton Cutler-Hammer Series G family of molded case circuit breakers.
Can this breaker be DIN rail mounted?
No. The RGH325032E is a large 2500A unit mount breaker that requires a heavy-duty bolt-on connection directly to the panelboard or switchboard bus structure.
Why is an electronic trip unit preferred for a 2500A breaker?
Electronic trip units provide higher accuracy and repeatability compared to traditional thermal-magnetic units. They are essential in high-amperage applications to meet strict safety codes for selective coordination and arc flash mitigation.
Is this breaker suitable for DC voltage applications?
The provided specifications list this breaker for AC voltage only, up to 600VAC. Electronic trip units in the Series G family rely on current transformers that are not rated for DC applications.
What does the "32" signify in the RGH325032E catalog number?
In the Eaton Series G nomenclature, the "32" indicates the breaker is equipped with a Digitrip electronic trip unit featuring LSI (Long-Time, Short-Time, Instantaneous) protection functions.
