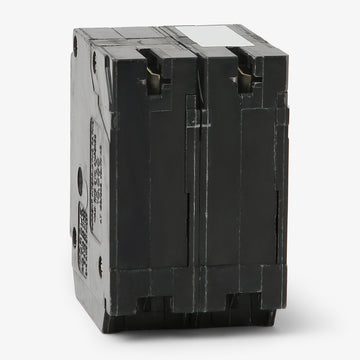

Eaton / Cutler-Hammer BQC2152120 15/20/20A Quadplex Miniature Circuit Breaker
- 15/20/20A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC2152120
15/20/20A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2152120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2152120 - 15/20/20A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC2202115
15/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2202120
20/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220215
20/15A Quadplex Miniature Circuit Breaker
Description

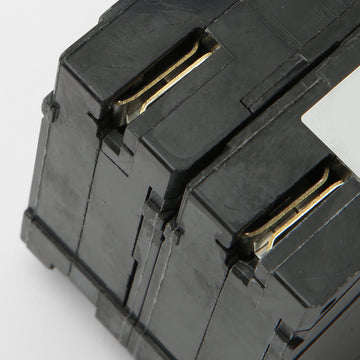

Engineered for space-saving efficiency, the BQC2152120 quadplex breaker houses one 2-pole 15A circuit and two 1-pole 20A circuits in a standard two-inch slot. This makes it ideal for residential upgrades where panel space is at a premium. Designed for plug-on installation, it mounts securely into Eaton Type BR load centers and incorporates a CTL rejection tab. Rated for 10 kAIC at 120/240VAC, it provides reliable thermal-magnetic protection and features switch duty (SWD) rated single poles.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/20/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|

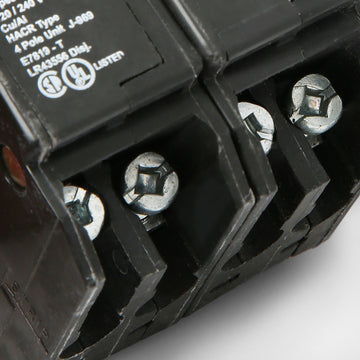

| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 60C to 75C |
Product FAQs
6 answersIs the Eaton BQC2152120 a CTL or non-CTL circuit breaker?
The BQC2152120 is a CTL (Circuit Total Limitation) breaker. It features a rejection tab on the bus connection side and is designed exclusively for use in Eaton Type BR load centers with notched bus stabs. It is not compatible with older non-CTL panels.
How are the circuits configured on the BQC2152120 quad breaker?
This quadplex breaker provides two single-pole 20A circuits on the outer positions and one two-pole 15A circuit on the inner positions. The inner 15A circuit has a common trip function, while the outer 20A circuits operate independently.
Can I install this quad breaker in any Eaton BR load center?
No. Because it is a CTL breaker with a rejection tab, it can only be installed in specific slots of a CTL-rated Eaton BR load center. The panel must have notched bus stabs designed to accept tandem or quad breakers.
What is the difference between Eaton BQ and BQC quad breakers?
BQ quad breakers feature independent trip functions for all poles, meaning each circuit trips independently. BQC breakers, like the BQC2152120, feature a common trip mechanism for the two-pole section, ensuring both legs trip simultaneously if a fault occurs on either side.
How much panel space does the BQC2152120 require?
This quadplex breaker requires two standard 1-inch spaces in your load center to provide a total of four circuits. This makes it an excellent space-saving solution for expanding capacity in full panels.
Does this breaker provide Arc Fault or Ground Fault protection?
No. The BQC2152120 is a standard thermal-magnetic circuit breaker. It provides overload and short-circuit protection but does not include AFCI or GFCI circuitry.
