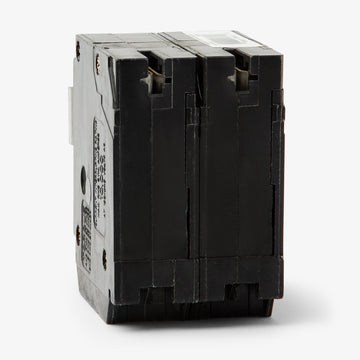

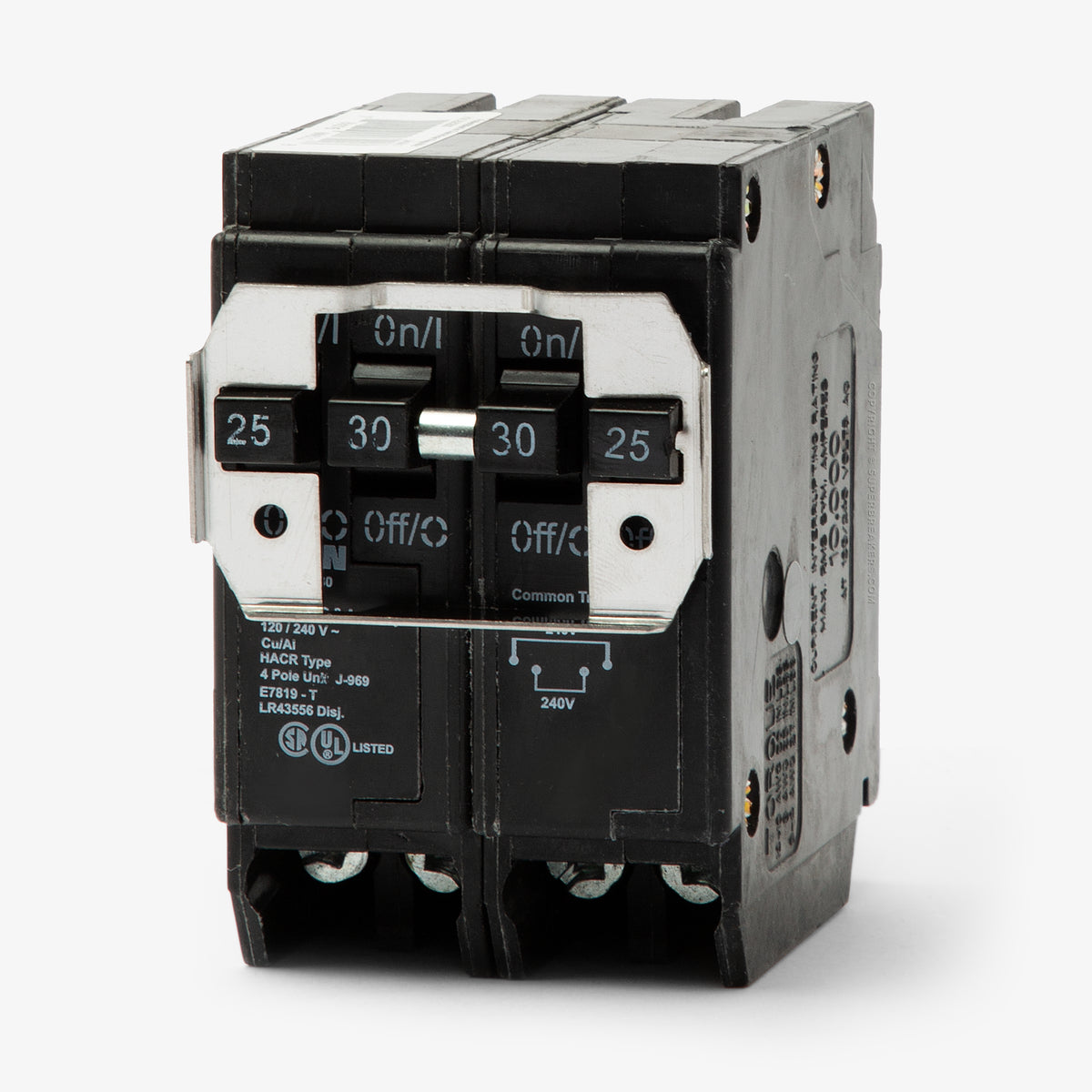

Eaton / Cutler-Hammer BQC225230 25/30A Quadplex Miniature Circuit Breaker
- 25/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC225230
25/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC225230
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC225230 - 25/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC215230
15/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220230
20/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2302130
30/30A Quadplex Miniature Circuit Breaker
Description
Built for space-constrained systems, the Eaton BQC225230 delivers reliable thermal-magnetic protection. This quadplex breaker provides one 25A and one 30A two-pole circuit, perfect for adding 240V loads without a panel upgrade. The plug-on design fits Eaton Type BR load centers. A CTL rejection tab prevents overstuffing in non-notched panel slots. With a 10kAIC rating at 120/240V, it utilizes common trip mechanisms and is fully HACR rated for HVAC motor applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 25/30A |
| Poles | 4 |

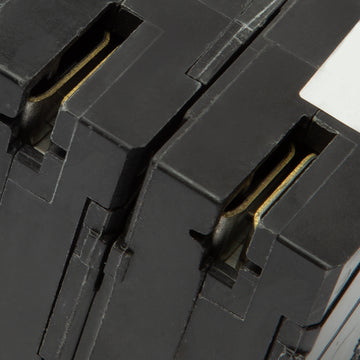

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Rejection Tab, Common Trip |
Product FAQs
6 answersWhich load centers are compatible with the BQC225230 quad breaker?
This breaker is designed for Eaton Type BR load centers. It is also UL-listed for use in older Westinghouse, Challenger, and Bryant panels that specify Type BR breakers.
How much panel space does the BQC225230 require?
It requires two standard 1-inch spaces. This quadplex design provides two independent 2-pole circuits (25A and 30A) in the space normally occupied by a single 2-pole breaker.
Does this breaker have a rejection clip?
Yes, the BQC225230 is a CTL (Circuit Total Limiting) breaker and includes a rejection tab. It must be installed in panel positions with notched bus stabs designed to accept tandem or quad breakers.

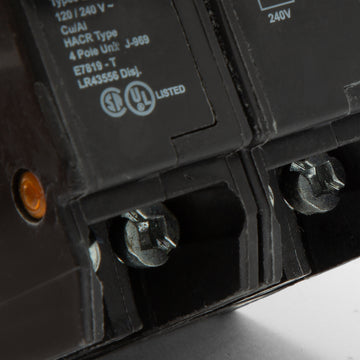

What type of wire is compatible with the box lugs on this breaker?
The terminals accept 14 AWG to 4 AWG copper (Cu) or aluminum (Al) wire rated for 60C or 75C.
Is the Eaton BQC225230 HACR rated?
Yes, this quadplex breaker is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
Are the two 2-pole circuits on this breaker independent or common trip?
The BQC225230 features a common trip mechanism for each 2-pole circuit. If a fault occurs on one leg of a 240V circuit, both poles for that specific circuit will trip simultaneously.
