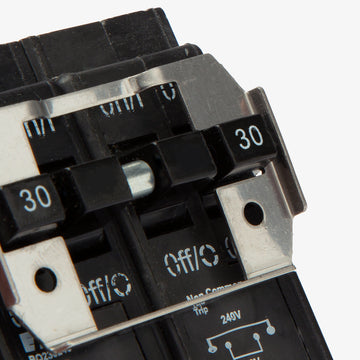

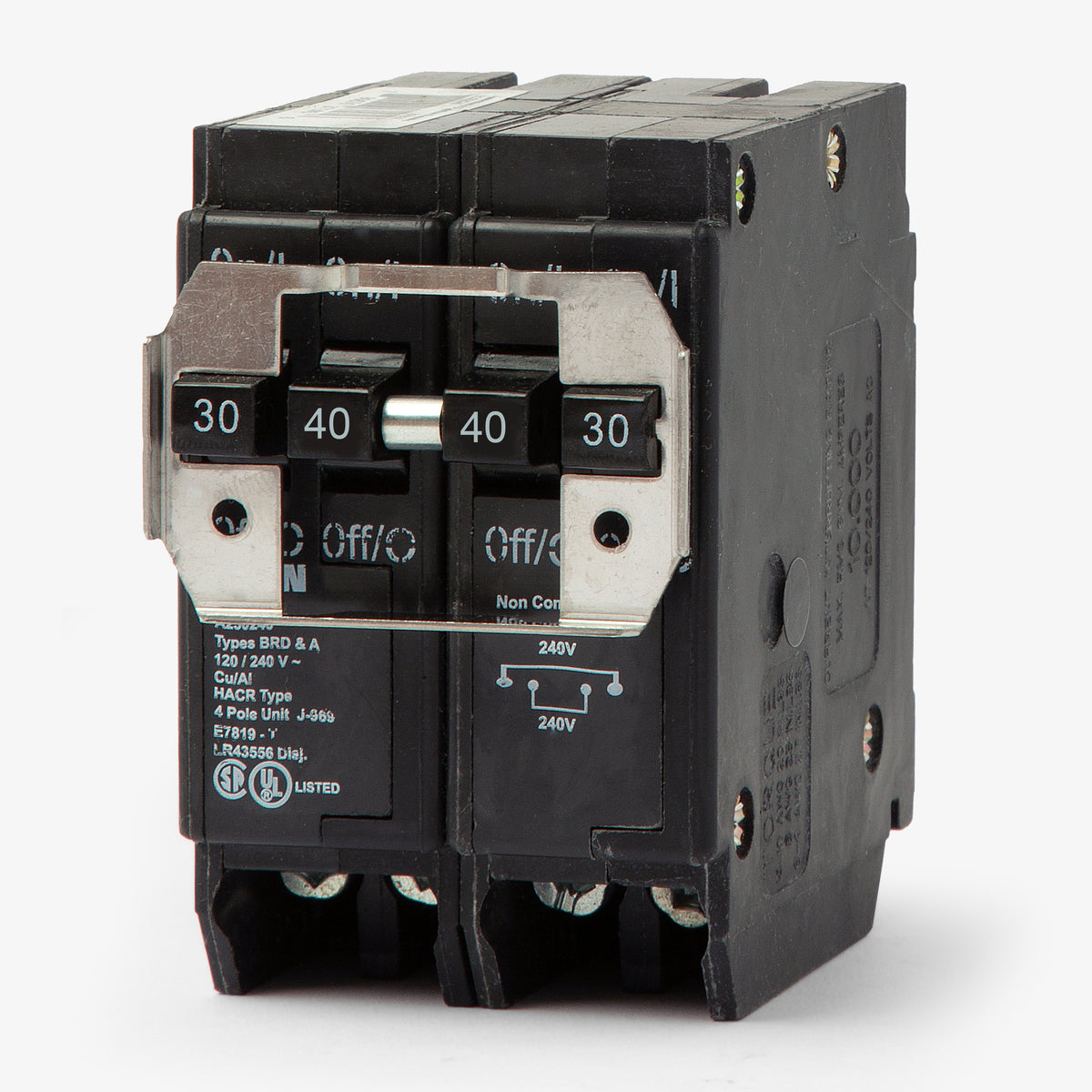

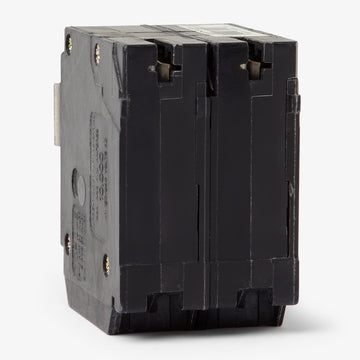

Eaton / Cutler-Hammer BQC230240 30/40A Quadplex Miniature Circuit Breaker
- 30/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC230240
30/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC230240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC230240 - 30/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC215240
15/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220240
20/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2402130
40/30/30A Quadplex Miniature Circuit Breaker
Description
Maximizing available panel space, the BQC230240 combines a 30A 2-pole circuit and a 40A 2-pole circuit into a single four-pole, two-inch wide housing. Both circuits utilize common trip mechanisms to safely disconnect multi-wire branch circuits simultaneously. Engineered with a rejection tab, this Class CTL plug-on breaker mounts securely into Eaton Type BR load centers equipped with notched bus stabs. It is rated for 10 kAIC at 120/240V, making it ideal for residential and commercial upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 30/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Rejection Tab |
Product FAQs
5 answersHow many panel spaces does the BQC230240 require?
This quadplex breaker requires two standard 1-inch spaces in an Eaton BR load center.
What is the pole configuration for the 30A and 40A circuits on this breaker?
The BQC230240 features a 30A two-pole circuit on the outer poles and a 40A two-pole circuit on the inner center poles.

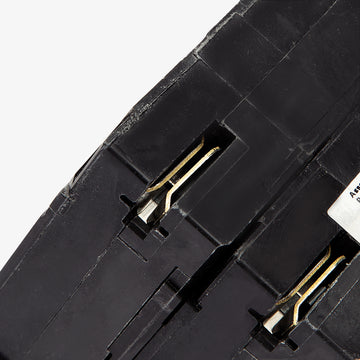

Does the BQC230240 have a rejection clip?
Yes, this is a Class CTL breaker equipped with a rejection tab. It must be installed in panel positions with notched bus stabs designed to accept CTL breakers.
Are the two-pole circuits on the BQC230240 common trip or independent trip?
The BQC series features common trip mechanisms. Both the 30A outer circuit and the 40A inner circuit will synchronously trip their respective poles if a fault occurs.
Can the BQC230240 replace older Bryant or Westinghouse quad breakers?
Yes, Eaton BR series breakers are the UL approved direct replacements for legacy Bryant, Westinghouse, and Challenger Type BR load centers.
