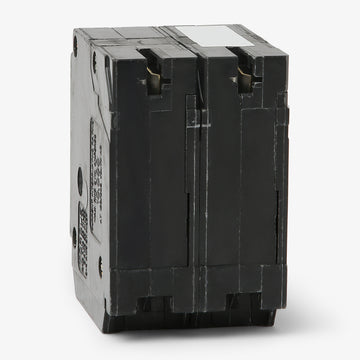

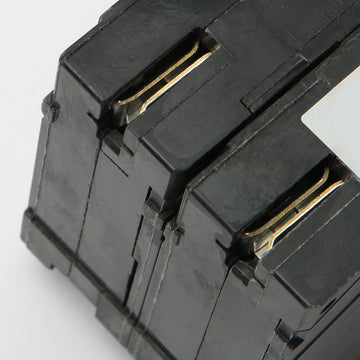

Eaton / Cutler-Hammer BQC2402130 40/30/30A Quadplex Miniature Circuit Breaker
- 40/30/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC2402130
40/30/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2402130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2402130 - 40/30/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC220240
20/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC230240
30/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240230
30/40A Quadplex Miniature Circuit Breaker
Description
Maximizing available slots, this 40/30/30A quadplex breaker delivers high-density circuit protection for residential and commercial electrical systems. The space-saving design allows installers to add new branch circuits while avoiding the cost of a larger panelboard. Designed exclusively for Eaton Type BR load centers, the plug-on breaker features a CTL rejection tab to verify correct placement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 40/30/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Rejection Tab, Common Trip |
Product FAQs
8 answersHow many panel spaces does the BQC2402130 require?
This quadplex breaker requires two adjacent 1-inch spaces in a compatible load center, allowing you to add four poles of protection without upgrading to a larger panel.
What is the circuit configuration of this quadplex breaker?
The BQC2402130 provides one 2-pole 40A circuit, typically located on the center poles for 240V applications, and two independent 1-pole 30A circuits on the outer poles for 120V applications.
Which load centers are compatible with the BQC2402130?
It is designed exclusively for Eaton and legacy Cutler-Hammer Type BR load centers. The panel must have slots approved for tandem or quadplex breakers.
Does the BQC2402130 include a rejection tab?
Yes. As a Class CTL breaker, it features a rejection tab on the mounting foot. It will only seat properly in panel slots specifically notched to accept CTL tandem or quadplex breakers.
What wire sizes are compatible with the BQC2402130?

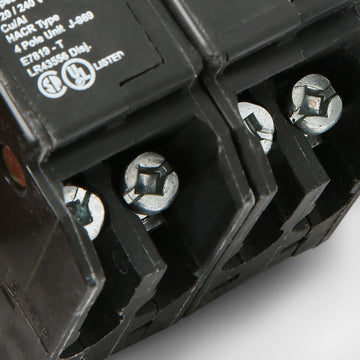

The box lugs on this breaker accept 14 AWG to 4 AWG copper or aluminum wiring.
Is the BQC2402130 HACR rated?
Yes, Eaton BQC quadplex circuit breakers are HACR rated, making them suitable for protecting heating, air conditioning, and refrigeration equipment circuits.
What is the difference between Eaton BQC and BQ quadplex breakers?
Type BQC breakers are Class CTL and include a rejection tab to prevent overloading in newer panels. Type BQ breakers are non-CTL, lacking the rejection tab, and are intended for older panels manufactured before CTL requirements.
What trip functions are included on the BQC2402130?
This thermal-magnetic breaker features fixed Long-Time and Instantaneous (LI) trip functions to protect against both sustained overloads and sudden short circuits.
