Eaton / Cutler-Hammer BR360ST Miniature Circuit Breaker
- 60A
- 3 Pole
- Plug-On
Eaton / Cutler-Hammer
BR360ST
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR360ST
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

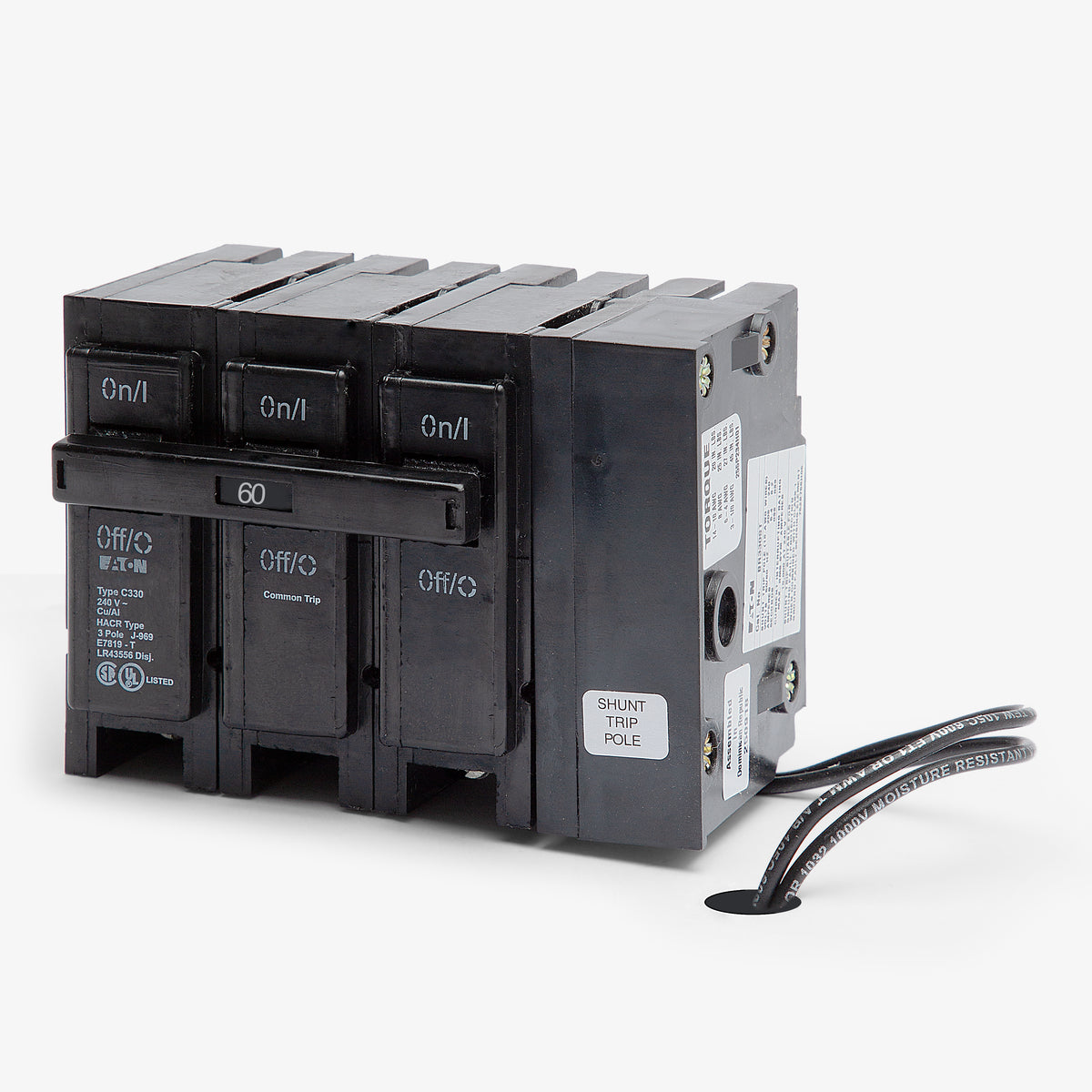

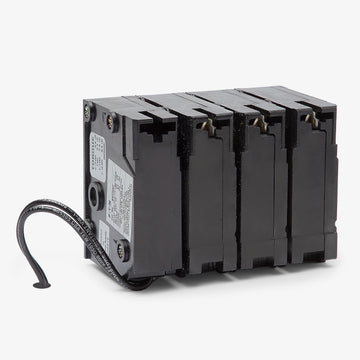

Eaton / Cutler-Hammer BR360ST - 60A 3 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
50A 3 Pole Miniature Circuit Breaker
80A 3 Pole Miniature Circuit Breaker
40A 3 Pole Miniature Circuit Breaker
Description
Integrating remote shutdown capabilities, this 60-amp thermal-magnetic breaker is ideal for commercial safety systems requiring emergency disconnects. The plug-on design fits seamlessly into Eaton Type BR three-phase load centers without requiring complex modifications. Alongside standard long-time and instantaneous trip functions, the built-in shunt trip mechanism enables automated tripping from external signals like fire alarms or emergency stop buttons.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR360ST |
| Series | BR |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Plug-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 4-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Shunt Trip |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip |
Product FAQs
6 answersWhat load centers are compatible with the BR360ST circuit breaker?
This breaker is designed for use in Eaton, Cutler-Hammer, and Westinghouse Type BR load centers. It features a plug-on mounting style that connects directly to the panel bus bar.
What does the ST suffix indicate on the BR360ST catalog number?

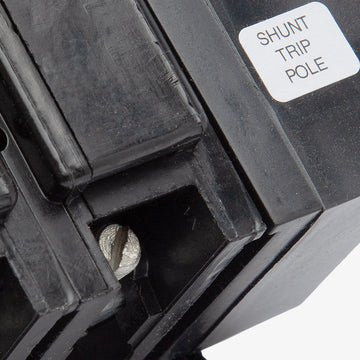

The ST suffix signifies that the breaker includes a factory-installed shunt trip mechanism. This allows the breaker to be opened remotely via an external electrical signal, which is often required for emergency stops or fire alarm integration.
Can a shunt trip be field-installed on a standard Eaton BR 3-pole breaker?
No. Shunt trips for the Eaton BR series cannot be installed in the field. You must purchase a breaker with a factory-installed shunt trip, such as the BR360ST.
What voltage is required to activate the shunt trip coil on the BR360ST?
The integrated shunt trip mechanism on Eaton BR series breakers operates on a 120VAC signal. Applying 120V to the shunt trip leads will automatically trip the breaker.
How does the thermal-magnetic trip unit function on this breaker?
The BR360ST features fixed long-time and instantaneous (LI) trip functions. The thermal bimetal element provides a delayed response to sustained overloads, while the magnetic assembly trips immediately when a short circuit is detected.
Is the BR360ST rated for use with heating, air conditioning, and refrigeration equipment?
Yes, all Eaton Type BR multi-pole circuit breakers carry a listing for HACR applications, making them suitable for heating, air conditioning, and refrigeration circuits.
