Eaton / Cutler-Hammer BRAFGF120 Dual Function Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRAFGF120
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRAFGF120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

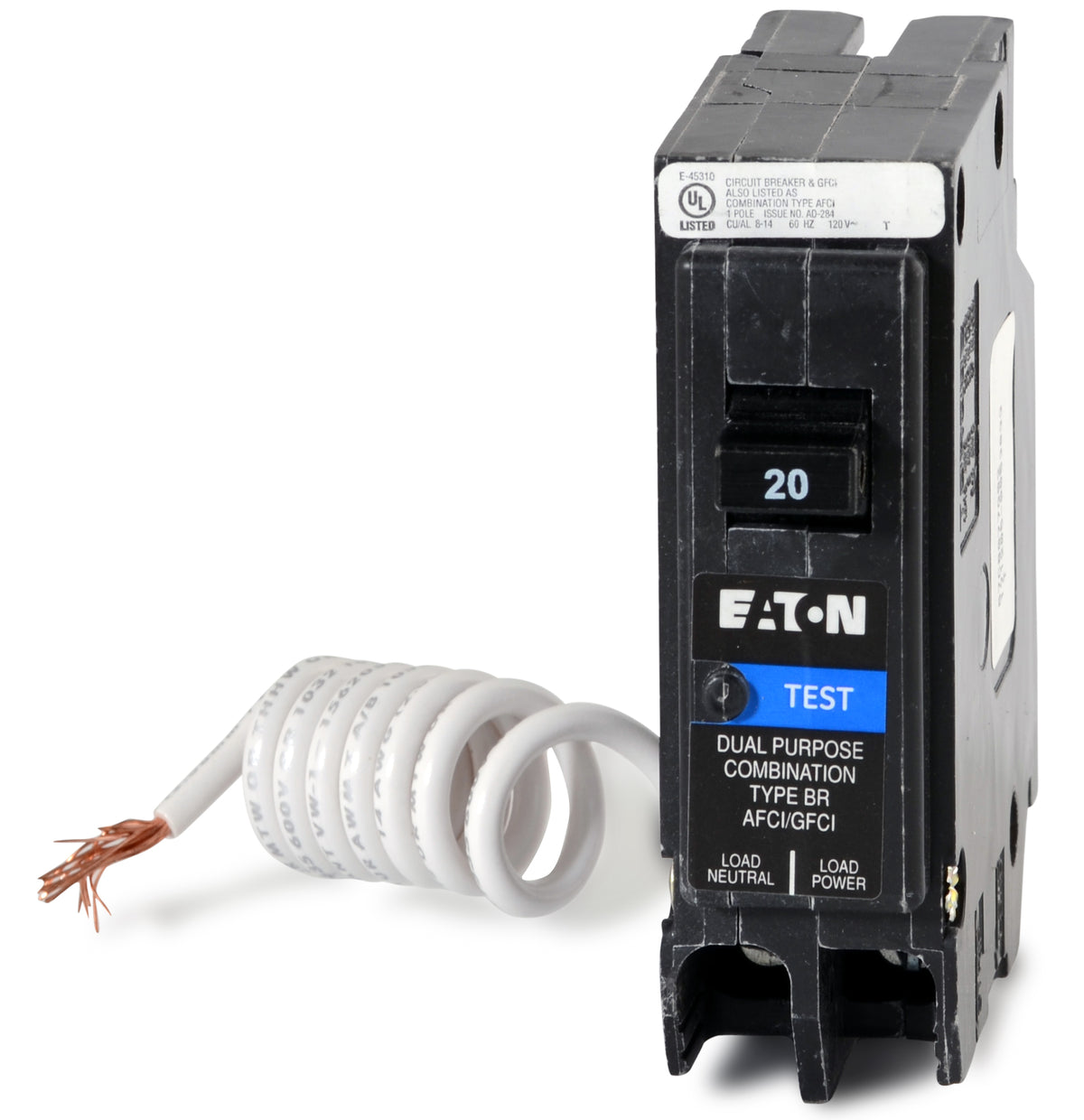

Eaton / Cutler-Hammer BRAFGF120 - 20A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items

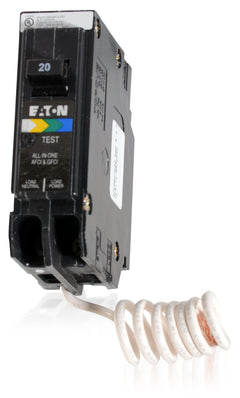

Eaton / Cutler-HammerBRN120A1CS
20A Dual Function Miniature Circuit Breaker
Eaton / Cutler-HammerBRPAFGF120
20A Dual Function Miniature Circuit Breaker
Description
Meeting modern electrical code requirements, the Eaton BRAFGF120 delivers 20 amps of dual function AFCI/GFCI protection. This 1-pole miniature circuit breaker safeguards residential branch circuits against both arcing conditions and ground faults. It installs into standard Eaton Type BR panelboards using a plug-on mounting style and a pigtail neutral connection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRAFGF120 |
| Series | BRAFGF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Self-Test, Visual Trip Indicator, Short Body |
Product FAQs
7 answersWhat load centers are compatible with the BRAFGF120 circuit breaker?
This breaker is designed exclusively for use in Eaton Type BR load centers. It is not compatible with Eaton Type CH panels or other manufacturer load centers.
Does the BRAFGF120 require a plug-on neutral panel for installation?
No. This breaker features a pigtail neutral connection, meaning it can be installed in standard Eaton BR load centers by wiring the pigtail directly to the neutral bus bar.
What is the difference between a dual-function breaker and a standard GFCI breaker?
A dual-function breaker like the BRAFGF120 provides both Arc Fault (AFCI) and Ground Fault (GFCI) protection in a single device. A standard GFCI breaker only protects against ground faults. This dual protection is often required by the NEC for specific residential circuits like kitchens and laundry rooms.
How do I troubleshoot a tripped BRAFGF120 breaker?
Eaton dual-function breakers feature LED diagnostic indicators that display specific trip codes. These codes help identify whether the trip was caused by an arc fault, a ground fault, or a standard thermal-magnetic overload.
Is there a plug-on neutral equivalent to the BRAFGF120?
Yes. If you have a plug-on neutral (PON) Eaton BR load center and want to eliminate the pigtail wire, the equivalent plug-on neutral dual-function breaker is the BRP120DF.
Does the BRN120DF replace the BRAFGF120?
Yes. The BRN120DF is Eaton's newer short-body version of the 20A pigtail neutral dual-function breaker and serves as a direct replacement for the BRAFGF120.
Can I use the BRAFGF120 on a 240V circuit?
No. This is a 1-pole breaker rated for 120VAC only. It cannot be used for 240V or multi-wire branch circuits that share a neutral.
