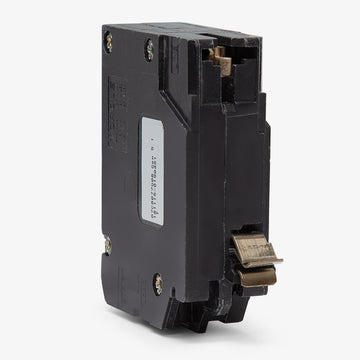

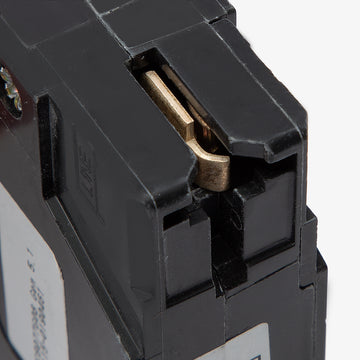

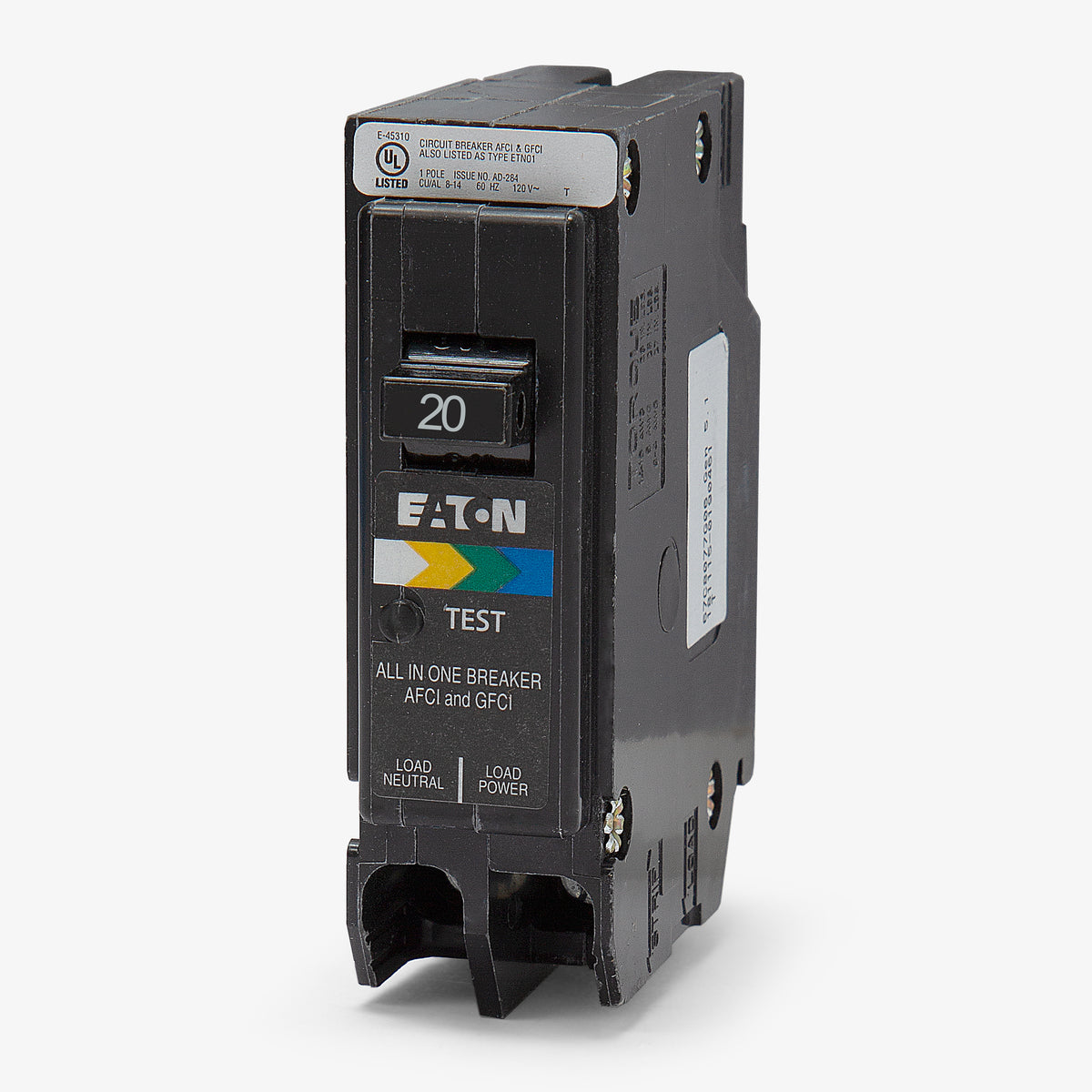

Eaton / Cutler-Hammer BRPAFGF120 Dual Function Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRPAFGF120
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRPAFGF120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRPAFGF120 - 20A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRN120A1CS
20A Dual Function Miniature Circuit Breaker
20A Dual Function Miniature Circuit Breaker
Description
Built for residential and commercial applications, the BRPAFGF120 provides dual-function protection against both arc faults and ground faults. This 20A, 120VAC breaker ensures compliance with strict NEC codes for areas requiring enhanced electrical safety. Installs into Eaton BR plug-on neutral load centers, streamlining the wiring process by removing the pigtail requirement. It is a reliable legacy option replaced by the BRP120DF. Rated for 10kAIC, it features a convenient LED trip indicator.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRPAFGF120 |
| Series | BRP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Plug-On Neutral Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 943, UL 489, UL 1998 |
| Approval | UL |
| Temp Rating | 60C to 75C |
Product FAQs
6 answersCan I install the BRPAFGF120 in an older Eaton BR panel?
It depends on the panel. This breaker requires an Eaton BR Plug-On Neutral load center. If your older panel does not have a plug-on neutral bar, you must use the pigtail version instead.
What is the pigtail alternative to the BRPAFGF120?
The Eaton BRN120DF is the pigtail equivalent. It provides the same 20A dual function protection but includes a neutral wire for panels that do not support plug-on neutral breakers.
Does the BRPAFGF120 require a separate neutral wire connection?
No. As a Plug-On Neutral breaker, it connects directly to the neutral bar in compatible Eaton BR load centers, eliminating the need for a pigtail wire.
What does the LIG trip function code indicate on this breaker?
The LIG code stands for Long-Time, Instantaneous, and Ground-Fault. This means the thermal-magnetic breaker provides overload and short-circuit protection, alongside its integrated ground fault capabilities.
Why choose a dual function breaker over separate AFCI and GFCI devices?
The National Electrical Code requires both AFCI and GFCI protection for specific areas like kitchens and laundry rooms. A dual function breaker meets both requirements at the panel, simplifying the circuit and avoiding the need for specialized receptacles.
What is the recommended torque for the load terminals on this breaker?
The load terminal torque specifications are printed directly on the side of the breaker. For 14 to 10 AWG wire, the standard torque is 20 in-lbs.
