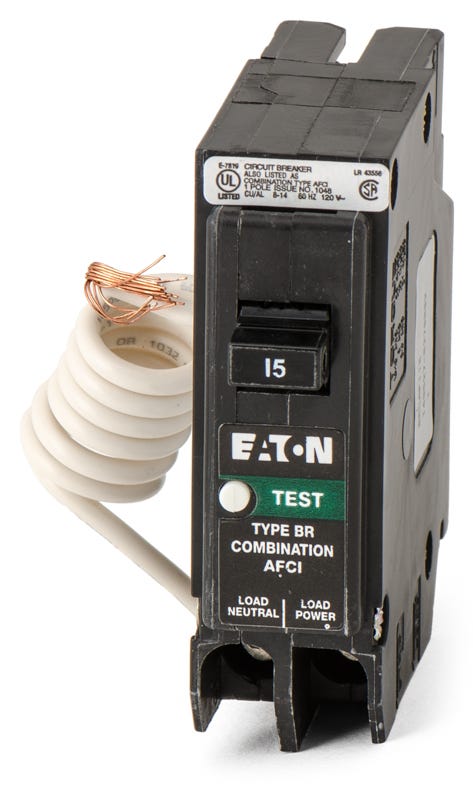

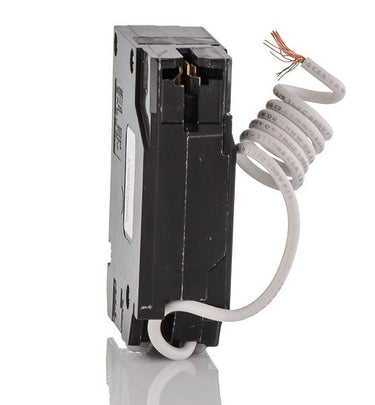

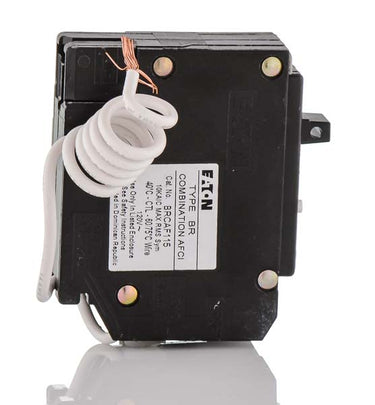

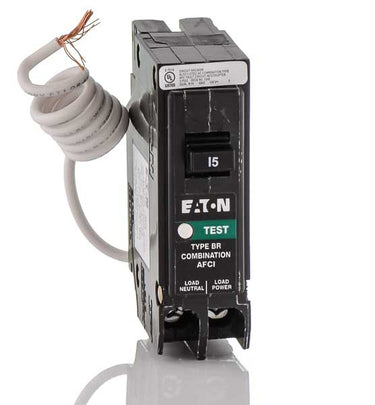

Eaton / Cutler-Hammer BRCAF115 AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRCAF115
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRCAF115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRCAF115 - 15A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
15A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
Description
Built for residential safety, the Eaton BRCAF115 delivers 15A of combination arc-fault protection to mitigate dangerous arcing conditions. This single-pole breaker meets modern NEC requirements for living area circuits. Mounts into standard Eaton Type BR load centers using a plug-on connection. Note that this legacy model is replaced by the BRN115AF, but remains a direct fit for existing panels. Features a pigtail neutral and built-in LED diagnostics for simplified troubleshooting.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRCAF115 |
| Series | BRCAF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Visual Trip Indicator |
Product FAQs
6 answersCan I use the BRCAF115 to replace an older BR115AF breaker?
Yes, the BRCAF115 is the direct replacement for the legacy BR115AF and BR115CAF circuit breakers. It fits the same Type BR load centers and provides updated combination arc fault protection.
What is the difference between the BRCAF115 and the BRP115AF?
The BRCAF115 features a pigtail neutral wire that must be connected to the panel's neutral bus bar. The BRP115AF is a Plug-On Neutral (PON) breaker that connects directly to the neutral bar without a pigtail. The BRCAF115 can be installed in both standard and PON Type BR load centers, while the BRP115AF requires a PON-compatible panel.
What type of arc fault protection does the BRCAF115 provide?
This breaker is a Combination Type Arc Fault Circuit Interrupter (AFCI). It detects and mitigates both high-current parallel arcing faults and low-current series arcing faults, meeting modern NEC requirements for residential living spaces.
How do I troubleshoot a tripped BRCAF115 breaker?
This breaker includes a built-in diagnostic LED. When the breaker trips, the LED will display a specific blink code to help you identify whether the trip was caused by a series arc, a parallel arc, or a standard thermal-magnetic overload.
How is the neutral connection wired on this breaker?
The BRCAF115 is a pigtail-style breaker. The coiled white pigtail wire must be routed and secured directly to the neutral bus bar in your load center, while the circuit's neutral wire connects to the breaker's load neutral terminal.
Will this breaker fit in a Square D or Siemens panel?
No. The BRCAF115 is exclusively designed for use in Eaton, Cutler-Hammer, or Bryant Type BR load centers. It is not listed or approved for use in other manufacturers' panels.
