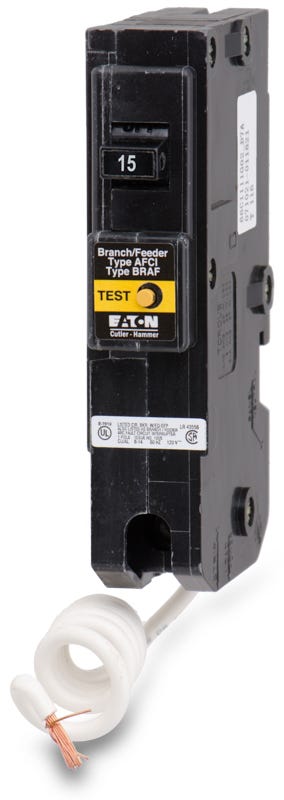

Eaton / Cutler-Hammer BR115AF AFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR115AF
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR115AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR115AF - 15A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR115AF |
| Series | BR |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated, SWD Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR115AF - 15A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR115AF-R |
| Series | BR |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated, SWD Rated |
Similar Items
Eaton / Cutler-HammerBR120AFCS
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
Description

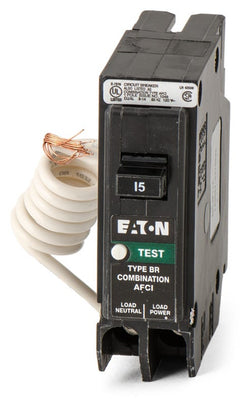

Built for residential applications, the Eaton BR115AF provides 15A branch/feeder AFCI protection. It delivers essential arc fault detection to mitigate fire risks in home wiring. This plug-on unit installs into Eaton Type BR load centers. It features a pigtail neutral connection and serves as a reliable replacement for discontinued BRCAF115 models. Rated at 10 kAIC, the thermal-magnetic trip unit ensures robust protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR115AF |
| Series | BR |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Pigtail Neutral |
| Standards | UL 1699, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C, 75C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
8 answersWhich load centers are compatible with the BR115AF circuit breaker?
The BR115AF is UL listed for installation in Eaton, Cutler-Hammer, and legacy Bryant Type BR load centers. It is not interchangeable with Square D, Siemens, or GE panels.
How is the pigtail neutral connected on the BR115AF?
The coiled white pigtail wire must be routed and secured directly to the panel neutral bus bar. This connection is required to power the internal arc fault detection circuitry.
Can I use the BR115AF with aluminum wiring?
Yes, the box lugs are rated for both copper and aluminum conductors. They accept wire gauges from 14 AWG up to 4 AWG, making them suitable for standard 15A branch circuit wiring.
What is the difference between the BR115AF and the BR115CAF?
The BR115AF is a branch/feeder AFCI, while the BR115CAF is a combination AFCI. The BR115CAF, along with the newer BRN115AF, serve as direct replacements that detect a wider range of arc faults to meet updated NEC requirements.
What type of arc fault protection does the BR115AF provide?
As a branch/feeder AFCI, it is designed to detect high-energy parallel arc faults, such as line-to-neutral or line-to-ground arcs. It mitigates fire risks in the branch circuit wiring while providing standard thermal-magnetic overload and short-circuit protection.
How do you verify the arc fault detection is working?
After installation, energize the circuit and press the test button located on the front of the breaker. The breaker should trip immediately, confirming the internal AFCI circuitry is operational.
Is the 10kAIC rating sufficient for residential applications?
Yes, a 10kAIC interrupting rating is the standard requirement for most residential single-phase load centers. It ensures the breaker can safely clear up to 10,000 amps of short-circuit current at 120VAC.
How does the thermal-magnetic trip unit operate on this breaker?
The BR115AF features fixed Long-Time and Instantaneous (LI) trip functions. The thermal component provides a delayed trip for sustained overloads, while the magnetic component trips instantly in the event of a short circuit.
